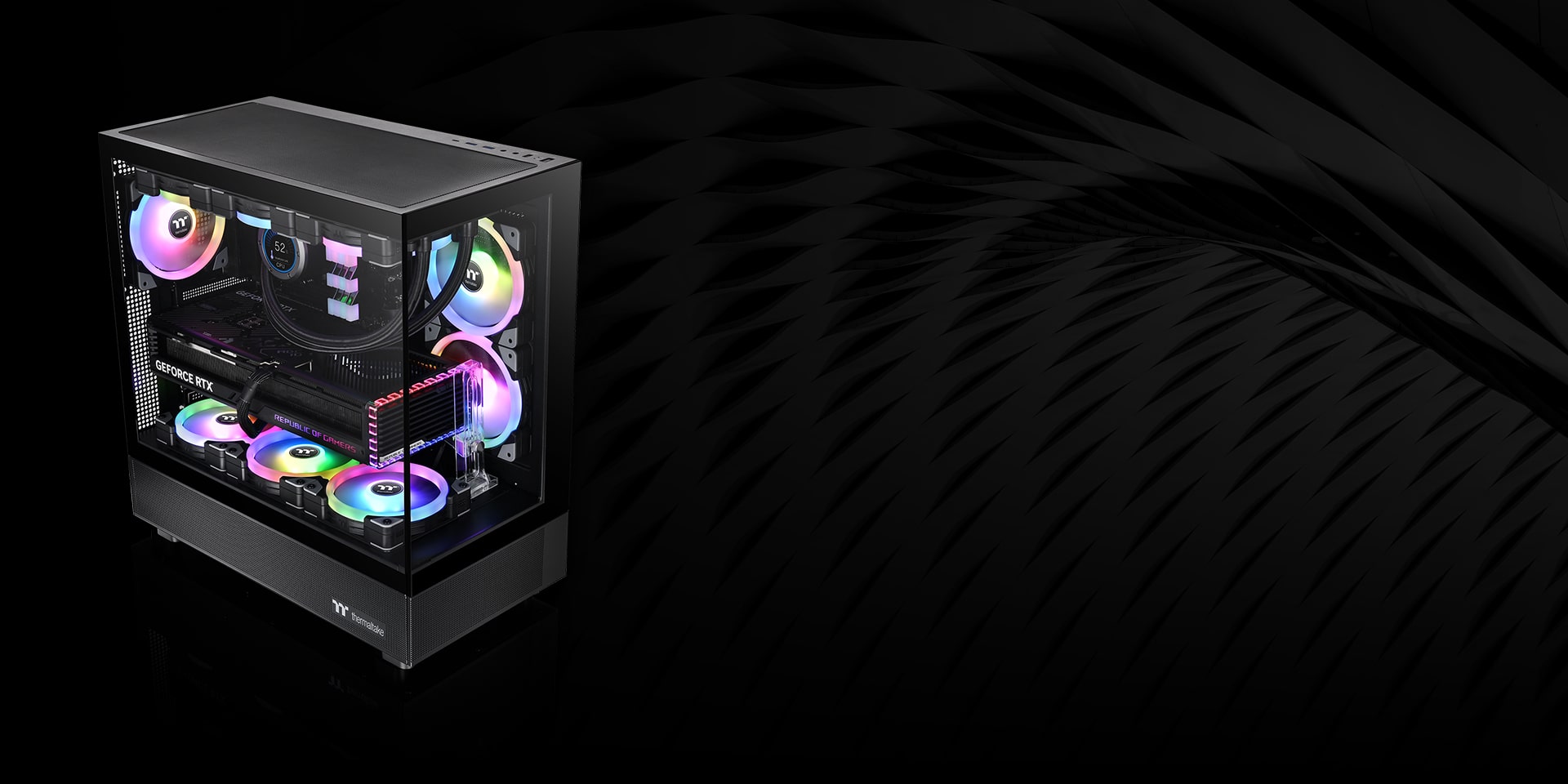

Built for amazing viewing, the View 270 TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear.
Built for amazing viewing, the View 270 TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 TG ARGB Mid Tower Chassis.

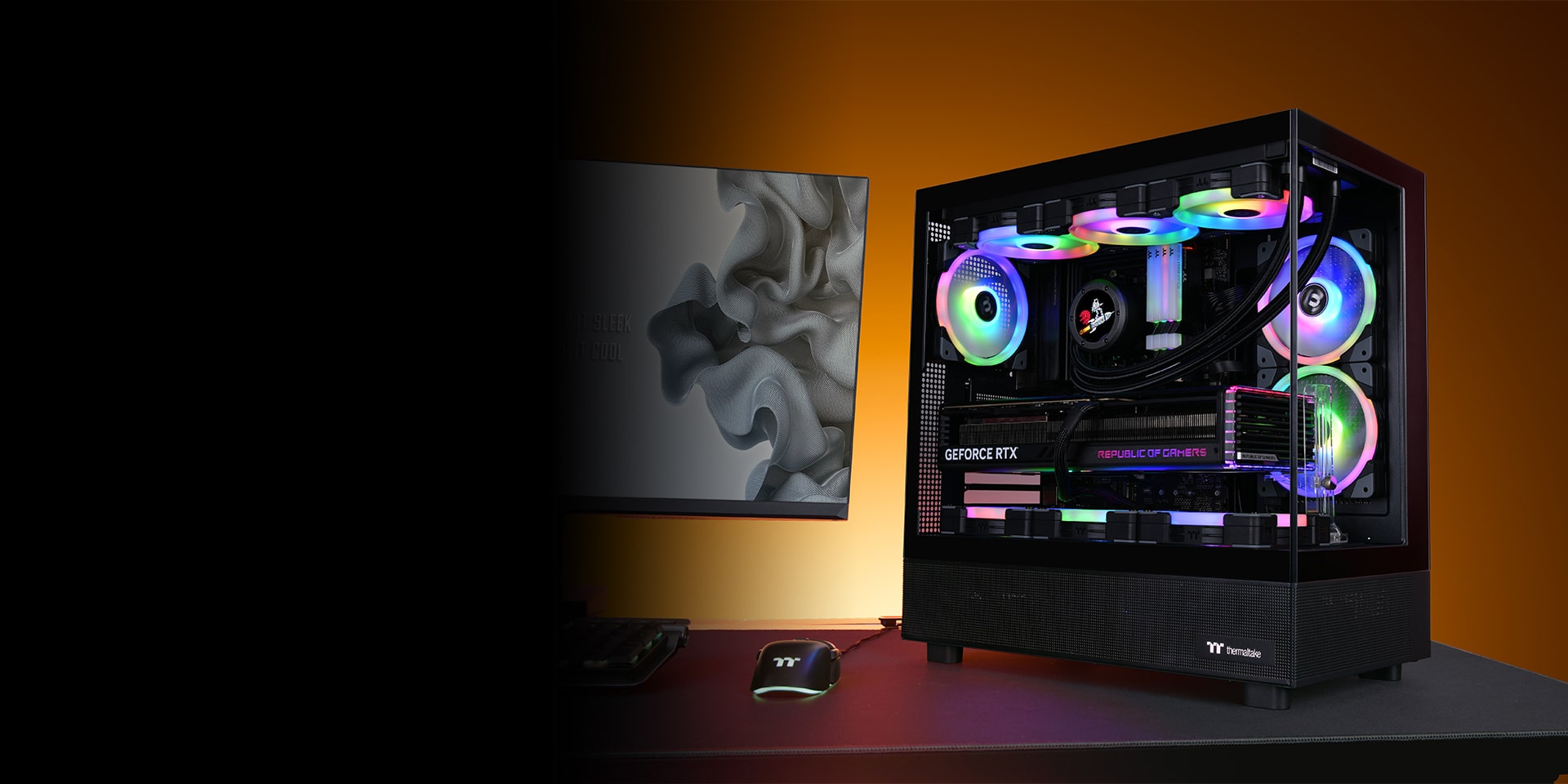

The View 270 TG ARGB is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

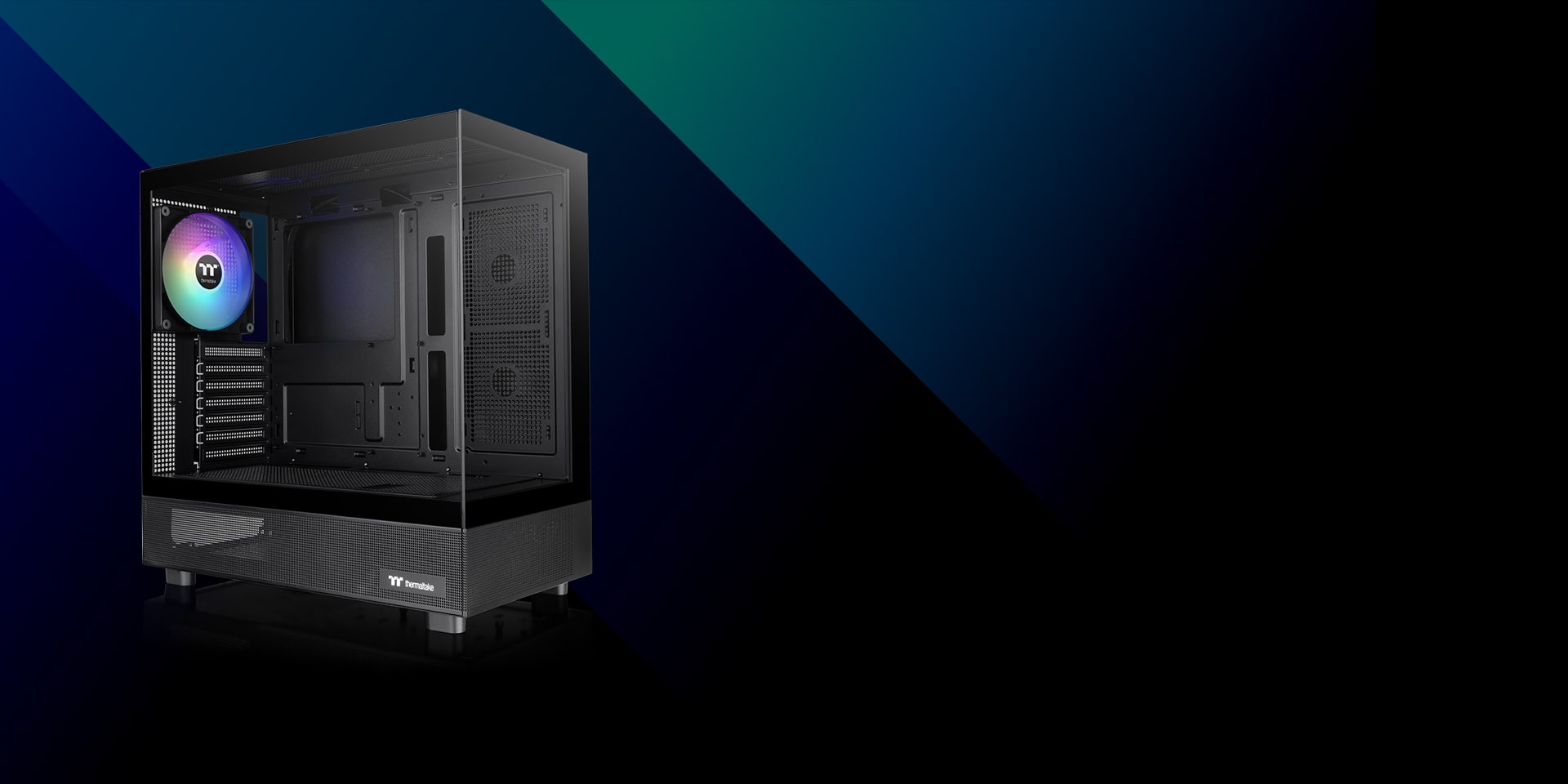

The View 270 TG ARGB Mid Tower Chassis comes with a CT140 ARGB Sync PC Cooling Fan pre-installed at the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

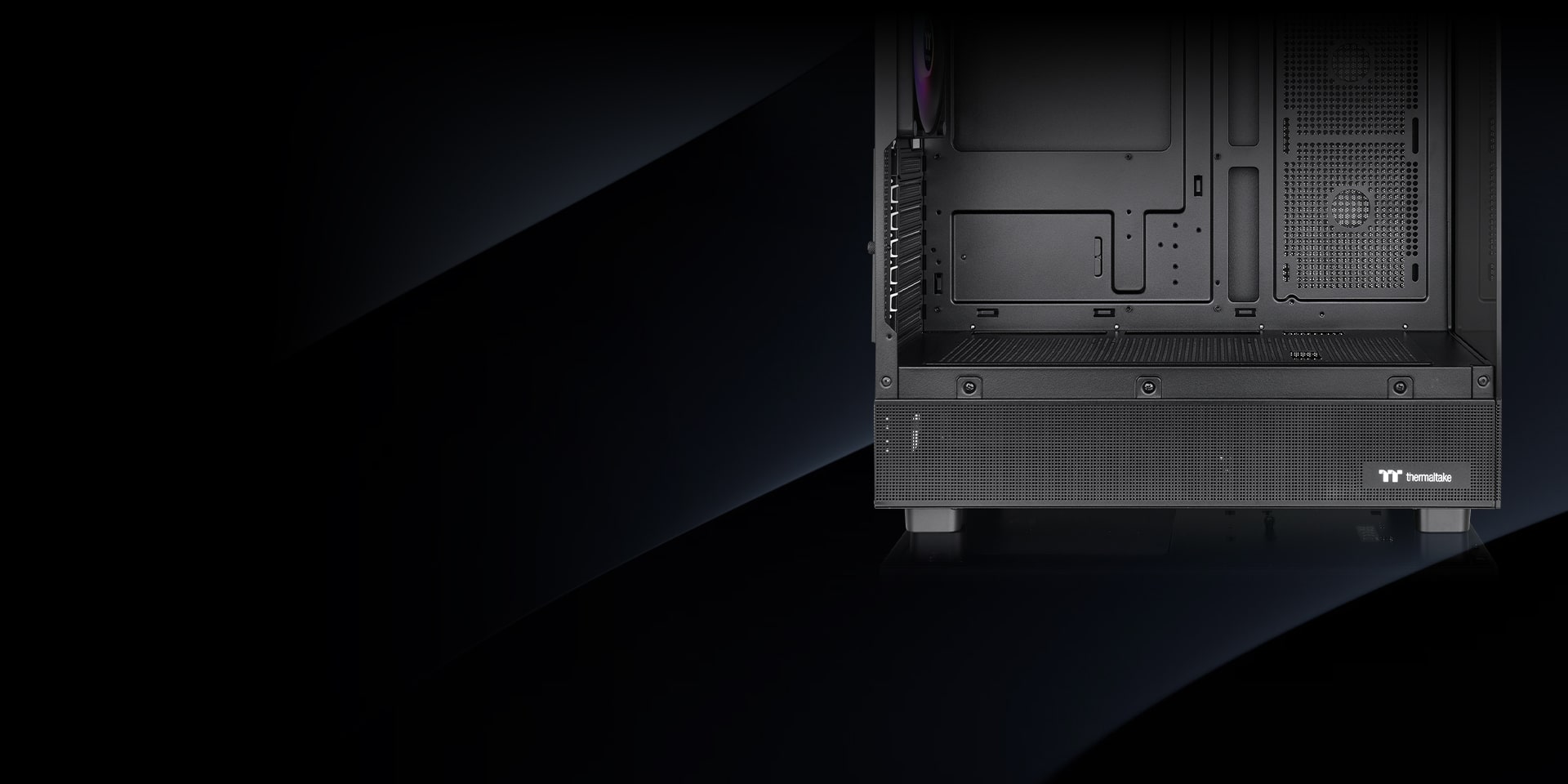

The View 270 TG ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

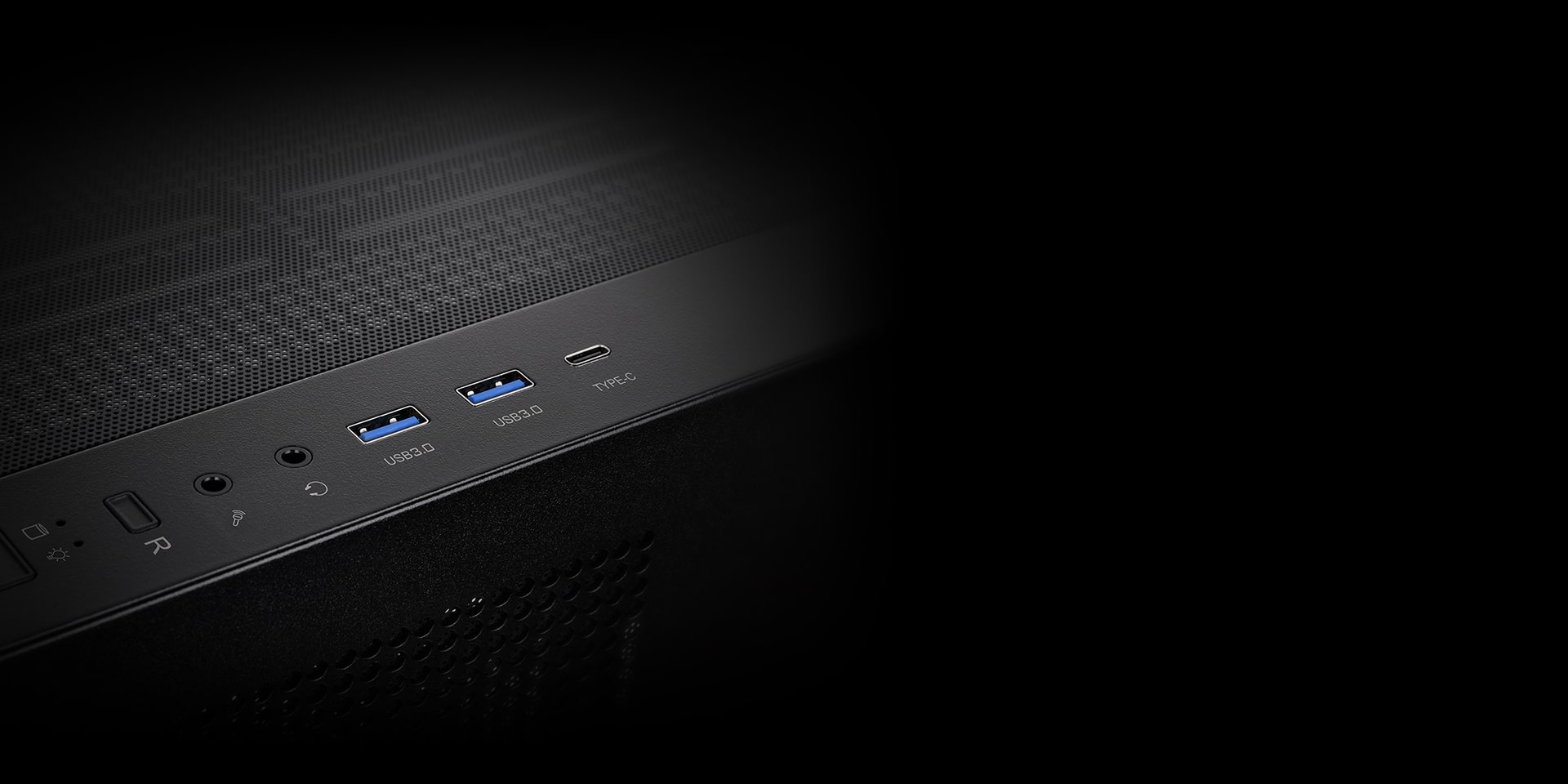

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
P/N CA-1Y7-00M1WN-00
Series View
Model View 270 TG ARGB
Dimension (H x W x D) 456 x 230 x 454 mm
(18 x 9.1 x 17.9 inch)
NET WEIGHT 6.3 kg / 13.9 lbs.
PANEL Tempered Glass x 2
Color Black
MATERIAL SPCC
COOLING SYSTEM Rear(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Drive Bays 2 x 3.5”, 1 x 2.5” or 2 x 2.5”
EXPANSION SLOTS 7
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm, 1 x 140mm
Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORT
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
Rear:
1 x 120mm
CLEARANCE
CPU cooler max height: 180mm
VGA max length: 420mm
PSU max length: 220mm
