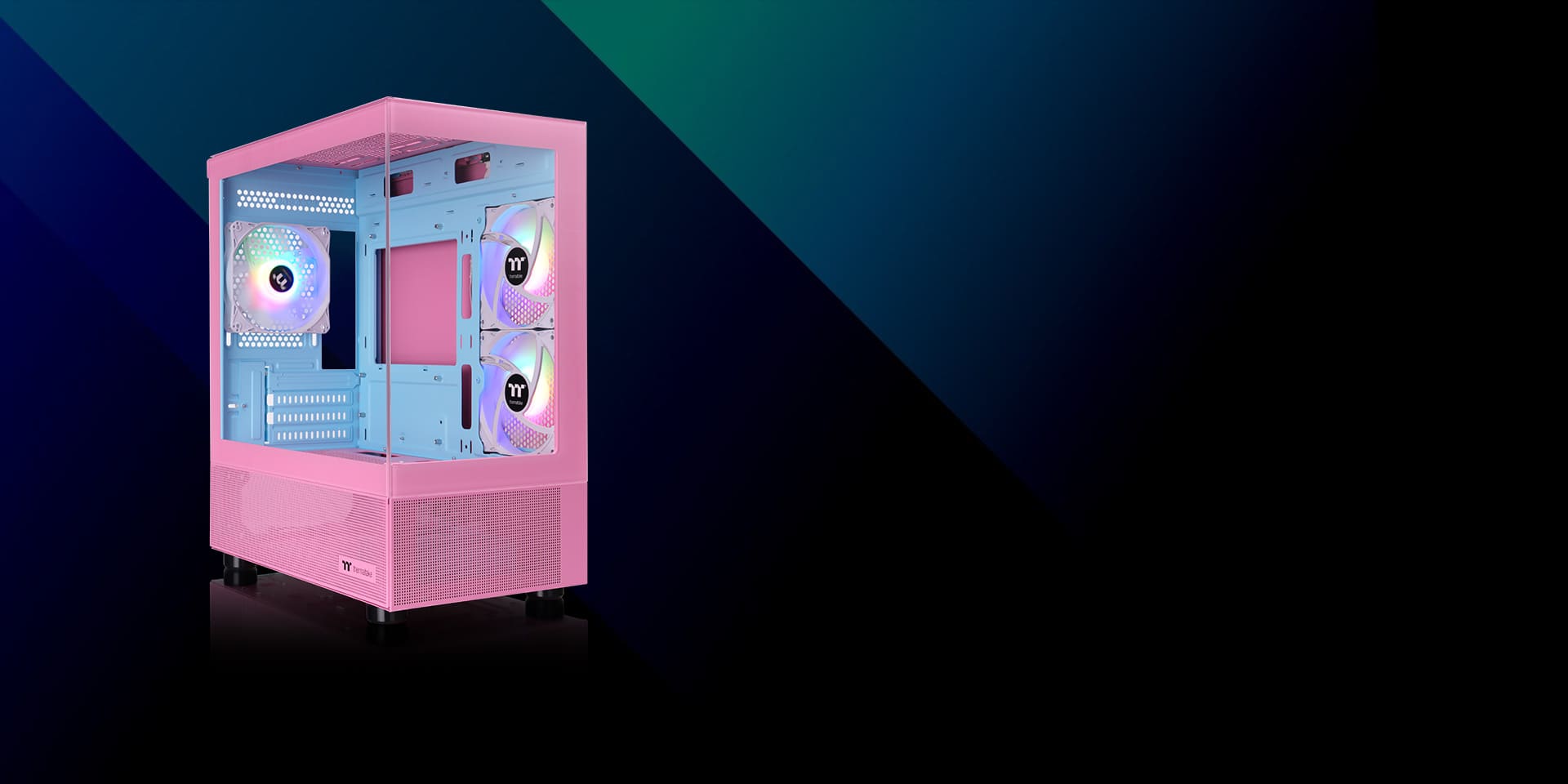

Built for amazing views, the View 170 TG ARGB Bubble Pink Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed.

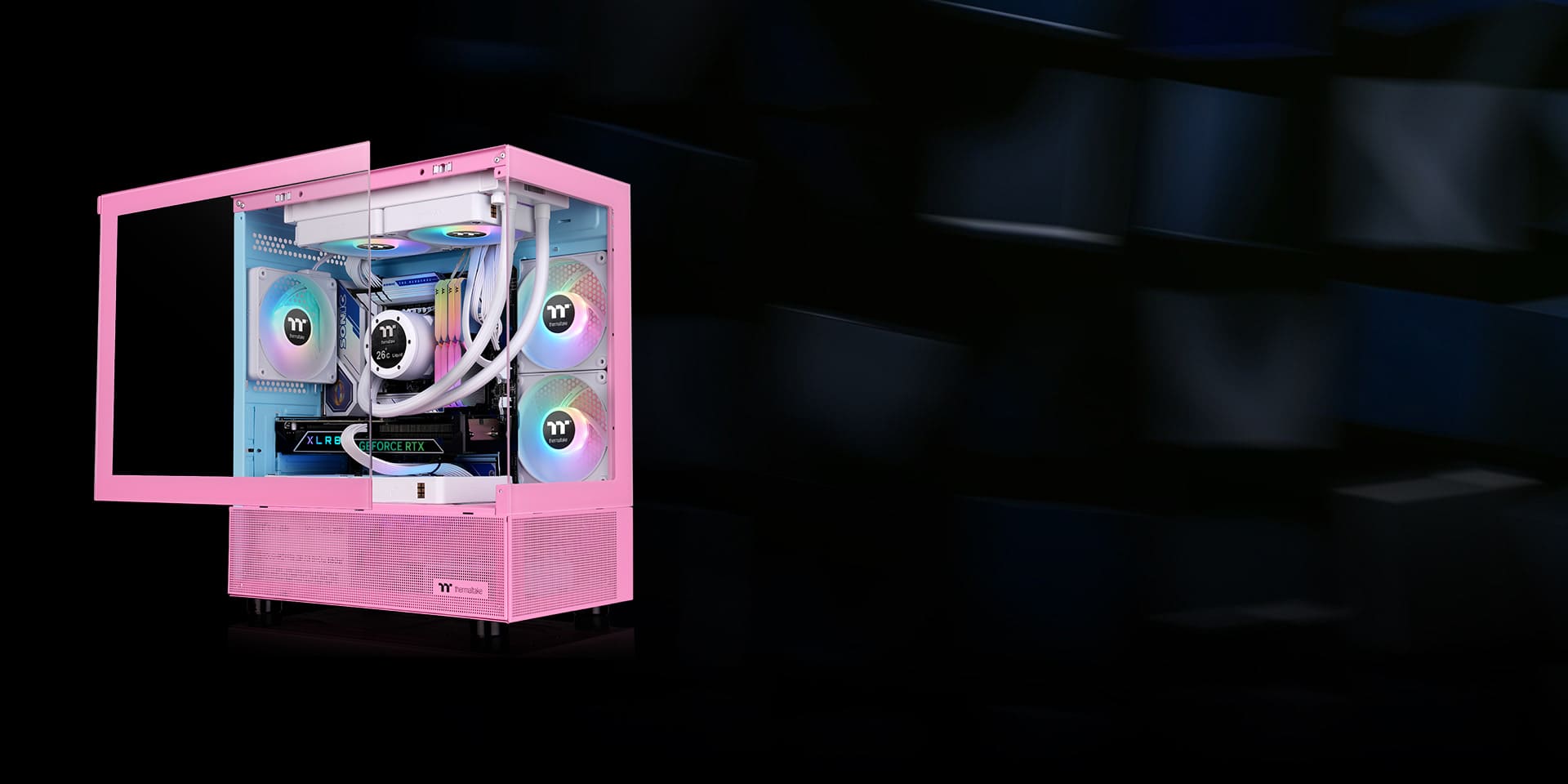

Tempered Glass Front and Left Panels
The View 170 TG ARGB Bubble Pink Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Up to a 280mm/240mm Radiator
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 TG ARGB Bubble Pink Micro Chassis.
Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
The View 170 TG ARGB Bubble Pink Micro Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Series
View
Model
View 170 TG ARGB Bubble Pink
CASE TYPE
Micro Case
Dimension (H x W x D)
438 x 212 x 377.5 mm
(17.24 x 8.35 x 14.86 inch)
NET WEIGHT
4.65 kg / 10.25 lbs.
PANEL
3mm Tempered Glass x 2
Color
Bubble Pink
MATERIAL
SPCC
COOLING SYSTEM
Right(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays
1 x 3.5”, 2 x 2.5”
EXPANSION SLOTS
4
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port
USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm
Power Cover:
2 x 120mm, 1 x 120mm
RADIATOR SUPPORT
Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
CLEARANCE
CPU cooler max height: 160mm
VGA max length: 340mm
PSU max length: 180mm
