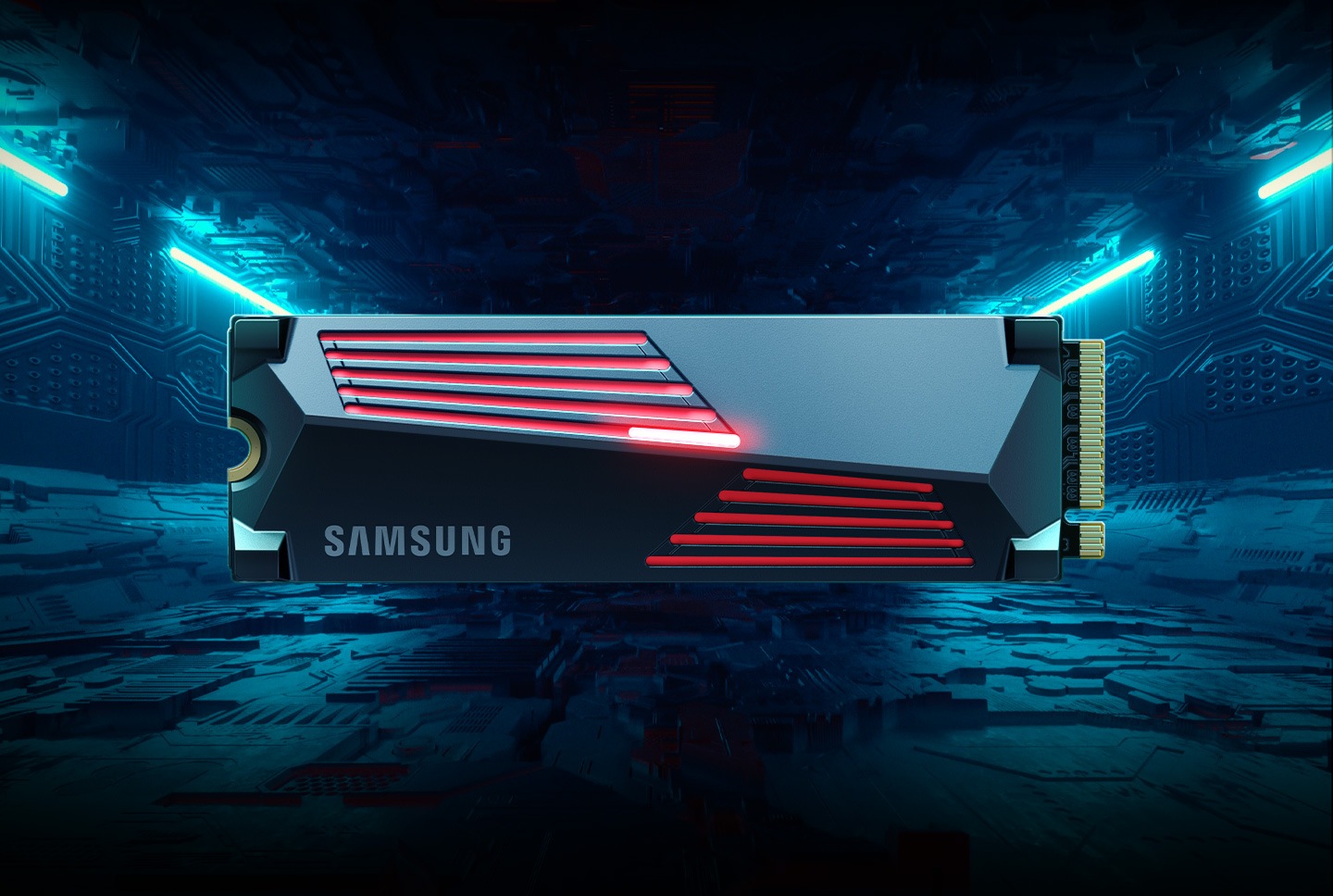

Samsung NVMe SSD powered by newly designed in-house controller
Up to 7,450 / 6900 MB/s sequential read/write speed
Power efficient SSD, reliable thermal control, with heatsink
ใช้ความเร็วของ PCIe 4.0 ได้อย่างเต็มที่
Heatsink (โซลูชั่นระบายความร้อนอัจฉริยะ)
ยืนหนึ่งเรื่องการจัดการพลังงาน
General Feature
Application Client PCs, Game Consoles
Capacity 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor M.2 (2280)
Interface PCIe Gen 4.0 x4, NVMe 2.0
Dimension (Pack: WxHxD) 80 x 24.3 x 8.2 mm (with heatsink)
Weight Max 28.0g Weight
Storage Memory Samsung V-NAND 3-bit MLC
Controller Samsung in-house Controller
Cache Memory Samsung 1GB Low Power DDR4 SDRAM
Special Feature
TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes
Performance
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
Sequential Write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 – 70 ℃ Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Software
Management SW Magician Software for SSD management
Warranty
5-year Limited Warranty or 600 TBW Limited Warranty
