MZ-VAP4T0BW (4TB)
Performance ready for a new era
Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.
Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

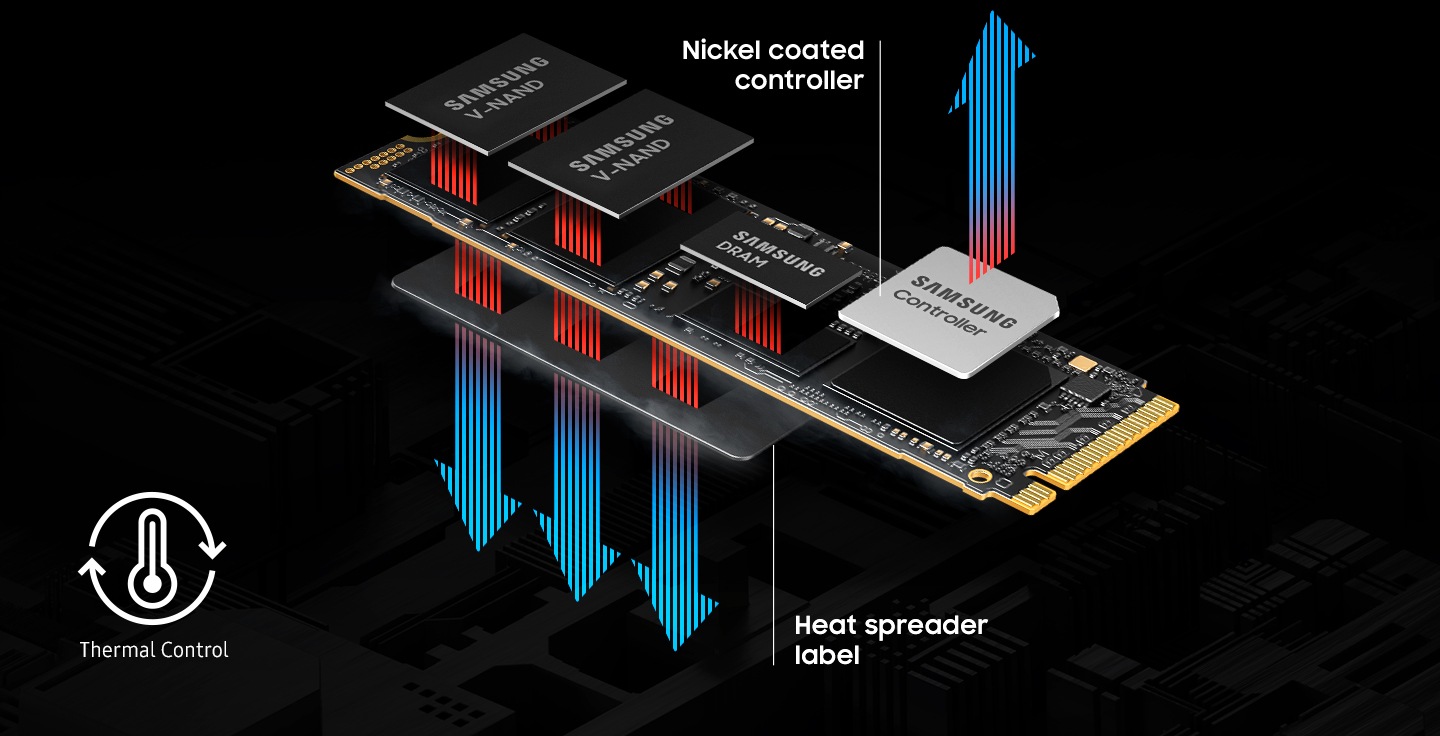

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.
Model Code MZ-VAP4T0BW (4TB)
General Feature
Application Client PCs, PlayStation®5
FORM FACTOR M.2 (2280)
INTERFACE PCIe® 5.0 x4, NVMe™ 2.0
DIMENSION (WxHxD) 4TB : 80.15 x 22.15 x 2.38 mm
WEIGHT 4TB : Max 9.0g Weight
STORAGE MEMORY Samsung V-NAND TLC
CONTROLLER Samsung in-house Controller
CACHE MEMORY Samsung 4GB Low Power DDR4X SDRAM (4TB)
Special Feature
TRIM Support Supported
S.M.A.R.T Support Supported
GC (GARBAGE COLLECTION) Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)
WWN SUPPORT Not supported
DEVICE SLEEP MODE SUPPORT Yes
Performance2)
SEQUENTIAL READ 4TB: Up to 14,800 MB/s
SEQUENTIAL WRITE 4TB: Up to 13,400 MB/s
RANDOM READ (4KB, QD32) 4TB: Up to 2,200,000 IOPS
RANDOM WRITE (4KB, QD32) 4TB: Up to 2,600,000 IOPS
Environment
AVERAGE POWER CONSUMPTION 4TB: Average 9 W Maximum 8.2 W (Burst mode)
POWER CONSUMPTION (IDLE) 4TB: Max. 6.5 mW
POWER CONSUMPTION (DEVICE SLEEP) 4TB: Max. 5.7 mW
ALLOWABLE VOLTAGE 3.3 V ± 5 % Allowable voltage
RELIABILITY (MTBF) 1.5 Million Hours Reliability (MTBF)
OPERATING TEMPERATURE 0 – 70 ℃ Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Software
MANAGEMENT SW Magician Software for SSD management
Warranty4)
MZ-VAP4T0BW (4TB) 5-year or 2400 TBW limited warranty
