Flexible Clearance
A minimum of 28mm of clearance is required when installing the 12VHPWR connector. For situations where less clearance is available, the plastic shield can be removed to reduce the required clearance to 23mm.
Include MB ARGB 3-PIN cable adaptor
ARGB SYNCHRONIZATION WITH THE MOTHERBOARD
The GPU extension cable has a 3 PIN 5V ARGB adaptor to connect to the motherboard directly.
Note: Lower 50% of the brightness when applying static white.
(Check detailed instructions from manual)

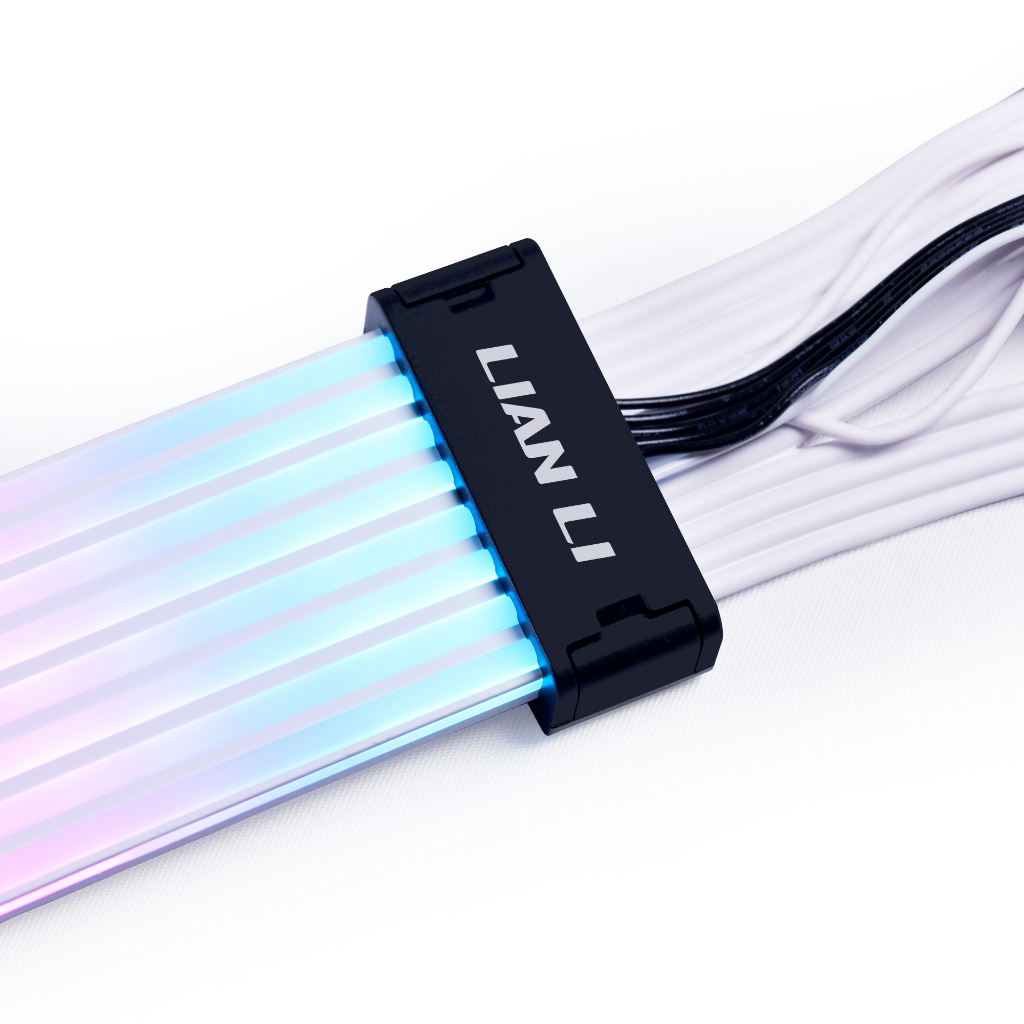

PRODUCT NAME STRIMER PLUS V2 12VHPWR
MODEL PW168-8PV2

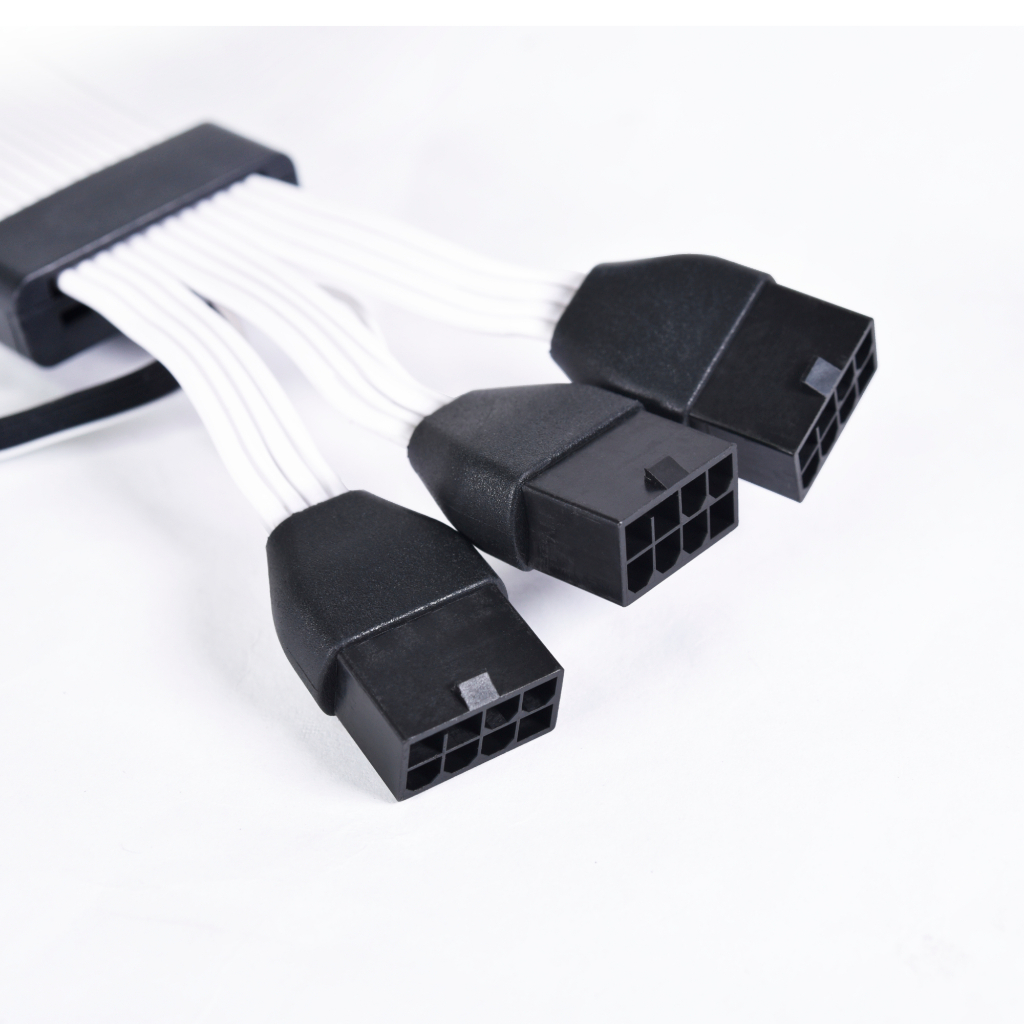

FEMALE CONNECTOR 3x8pin
MALE CONNECTOR 12+4pin
DIMENSIONS 381mm (L) X 39.8mm (D) X 8mm (H)
MATERIAL SILICONE/TPE
CABLE LENGTH 335mm
GAUGE 16AWG
LIGHT GUIDES 8
NUMBER OF LEDS 108

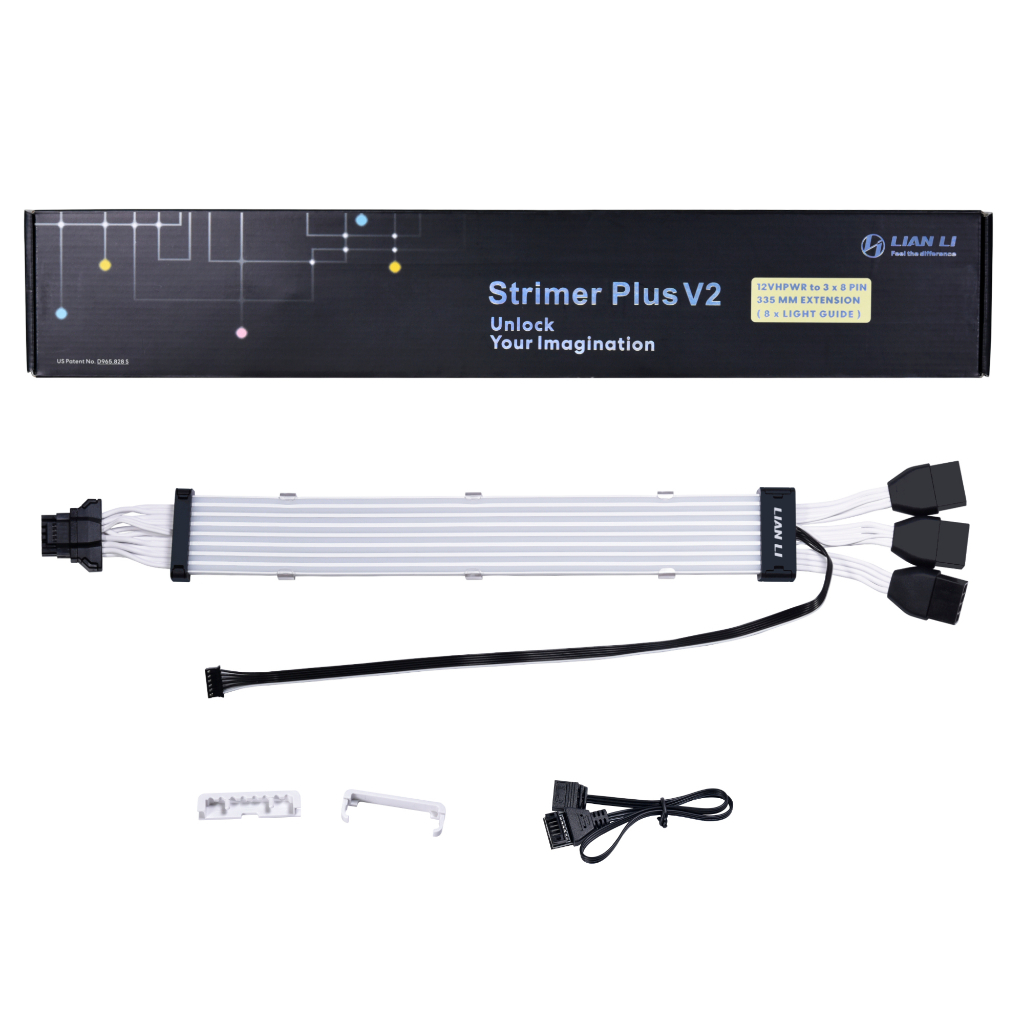

ACCESSORIES Cable adaptor for motherboard ARGB 3-PIN
WARRANTY 1 year
