The HS 420 is a work of functional beauty and user-centric innovation. Through dozens of prototypes and redesigns, and literally thousands of hours of rigorous testing by HAVN and Pro Gamers Group engineers, we have tailor-made this Hybrid Structure case to deliver unrivaled central GPU airflow within a dual chamber design while maintaining traditional mid-tower dimensions. Built for the most powerful fans and radiators on the market, it provides the thermal optimization you need for the most demanding tasks.
UniSheet heat-formed panoramic glass panel for front and side, engineered to be flatter and with a smaller radius to minimize visual distortion.
Optimized thermal performance design with custom panel ventilation, ideal for 140mm fans (11 fan positions in total), and up to 420mm radiators on the top, side, and bottom.
Intuitive SimpliCable routing system & fan hub organizes your cables cleanly and discreetly.

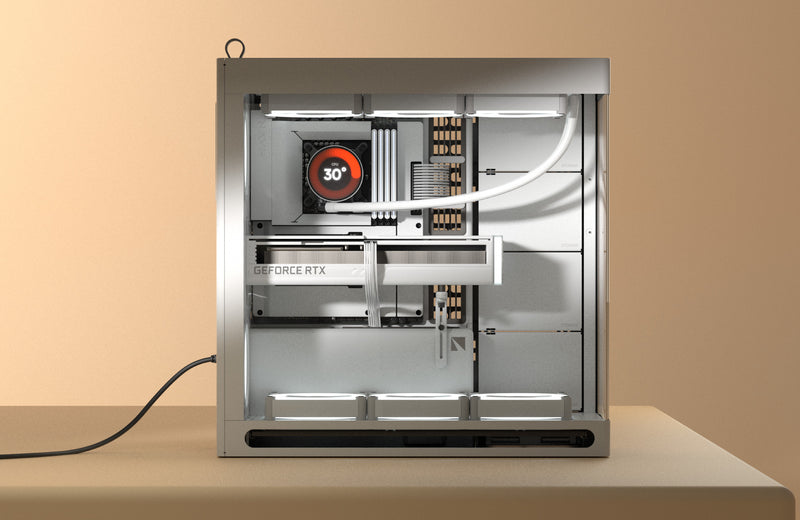

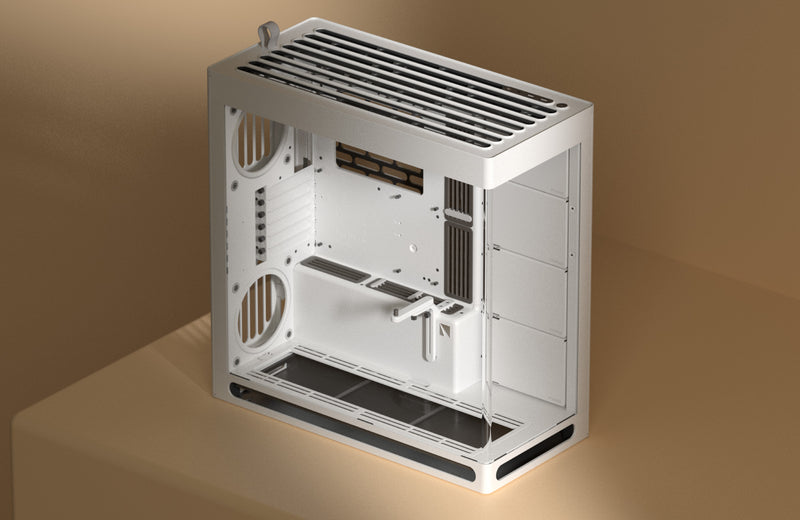

HAVN Hybrid Structure for Optimal GPU Cooling
Dual-chamber design with balanced airflow and a traditional case size ratio, designed to direct cool air from the bottom intake onto the centrally positioned GPU.
Cooling Power & Compatibility
HS 420 fits a total of eleven 140mm fans while supporting up to 420mm radiators on its top, right, and bottom.

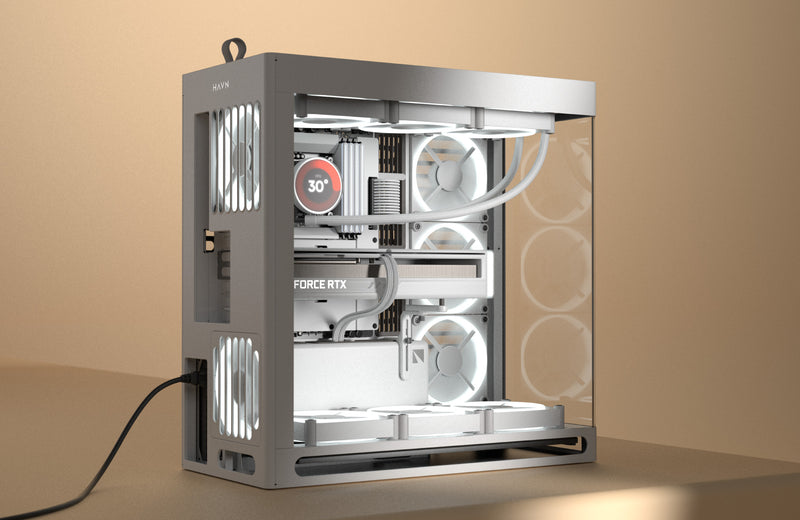

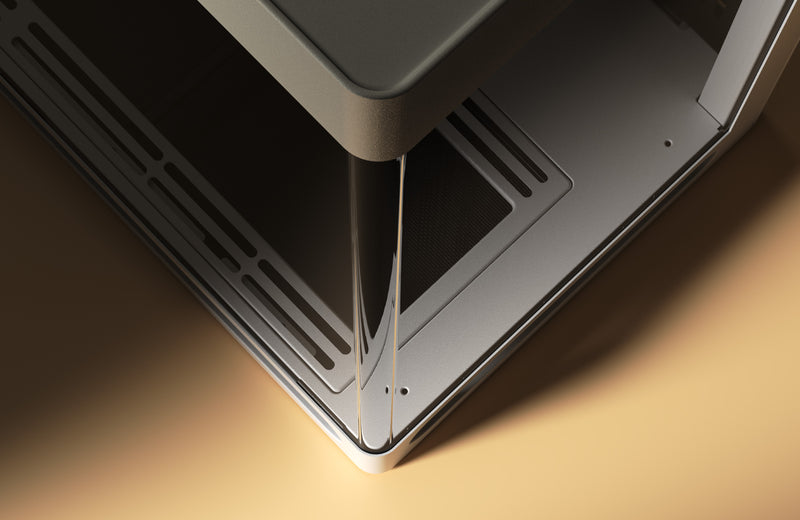

UniSheet heat-formed Glass Panel for Panoramic View
We challenged the limits of production to engineer the smallest possible curve radius and minimize visual distortion, providing the user with a clear and continuous view of the inside of the case.
Unique SimpliCable Routing System
Uniquely user-friendly SimpliCable routing system and fan hub – top-to-bottom grooved guides cleanly route your cables for a pristine overall appearance.
Cable Management Re-Invented
Clever silicon pass-throughs with stabilizing clips allow for precision cable management.

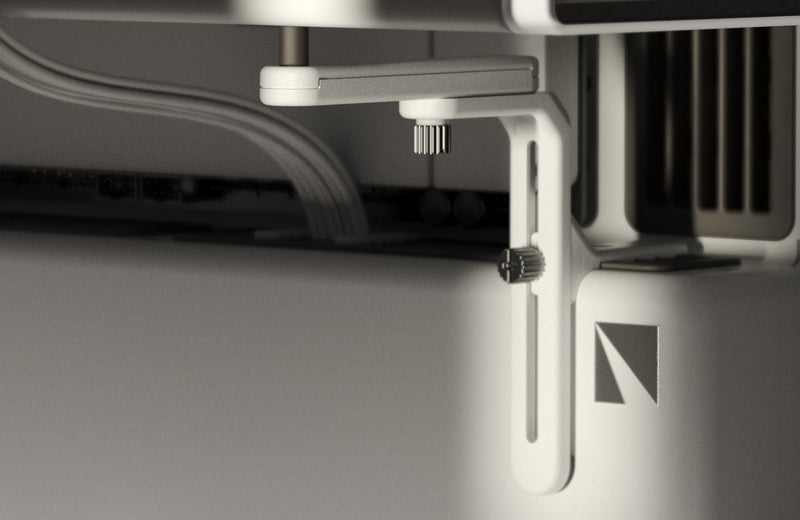

GPU Support
The 3-way adjustable structural support bracket is designed to handle a wide range of graphics cards of all shapes and sizes while maintaining a neat and smoothly integrated appearance.
Product Specifications
Form Factor Mid Tower
Material
SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H) 541 x 259.5 x 547 mm
Net Weight 17.84kg
Warranty 3 years
Front I/O
USB 3.2 Gen 2 Type-C x1
USB 3.2 Gen 1 Type-A x2
Audio Jack x1
Power & Reset Button x1
Motherboard Support E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots 6
Fan Support
Maximum Amount: 11
Top: 3 x 120 / 3 x 140 mm
Right: 3 x 120 / 3 x 140 mm
Bottom: 3 x 120 / 3 x 140 mm
Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)
Fan PWM Repeater
Channel: Total 12 ch
Location: Cable Management Tray x1
PSU shroud x1
CPU Tower Cooler Clearance Up to 185 mm
Liquid Cooling Support
Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)
Graphics Card Clearance
Length: Up to 480 mm
Width: 195 mm
GPU Support 2 – 5 Slots
RAM Clearance
If the radiator thickness is greater than 65 mm: 420 mm – 32 mm / 360 mm – 43 mm
Power Supply Support
ATX / SFX / SFX-L PSUs
Length: Up to 220mm (Clearance – 290mm)
Storage
Right Fan Mount: 4 Storage Bays: 4 x 3.5” / 8 x 2.5”
Cable Management Tray: 1 Storage Bay: 1 x 3.5” / 2 x 2.5”
Storage Bay Included: 4x
Internal Display Support
VESA Mounting: 75 x 75 mm / 100 x 100 mm
Display Size: 14 in. (Max)
Location: Front Right Pillar
Dust Filter
Bottom: 1 (Removable)
Top: 1 (Built-in)
Right: 1 (Built-in)
Rear Bottom: 1 (Removable)
