KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance

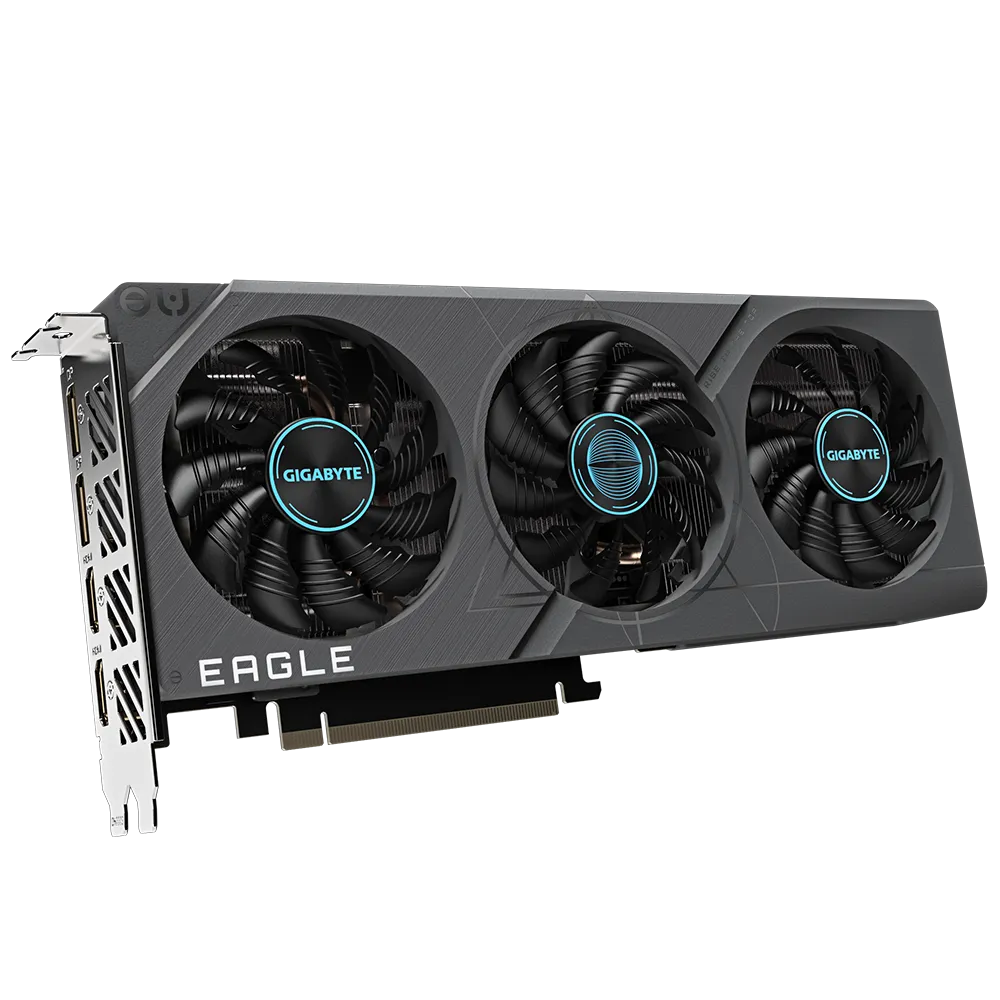

Powered by GeForce RTX™ 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Dual BIOS
Protection back plate
CORE CLOCK
2550 MHz (Reference card: 2535 MHz)
BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
Graphics Processing GeForce RTX™ 4060 Ti (8GB)
Core Clock 2550 MHz (Reference card: 2535 MHz)
CUDA® Cores 4352
Memory Clock 18 Gbps
Memory Size 8GB
Memory Type GDDR6
Memory Bus 128 bit
Card Bus PCI-E 4.0
Digital max resolution 7680 x 4320
Multi-view 4
Card size L=272 W=115 H=41 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 500W
Power Connectors 8 pin*1
Output
DisplayPort 1.4a*2
HDMI 2.1a*2
Accessories Quick guide
