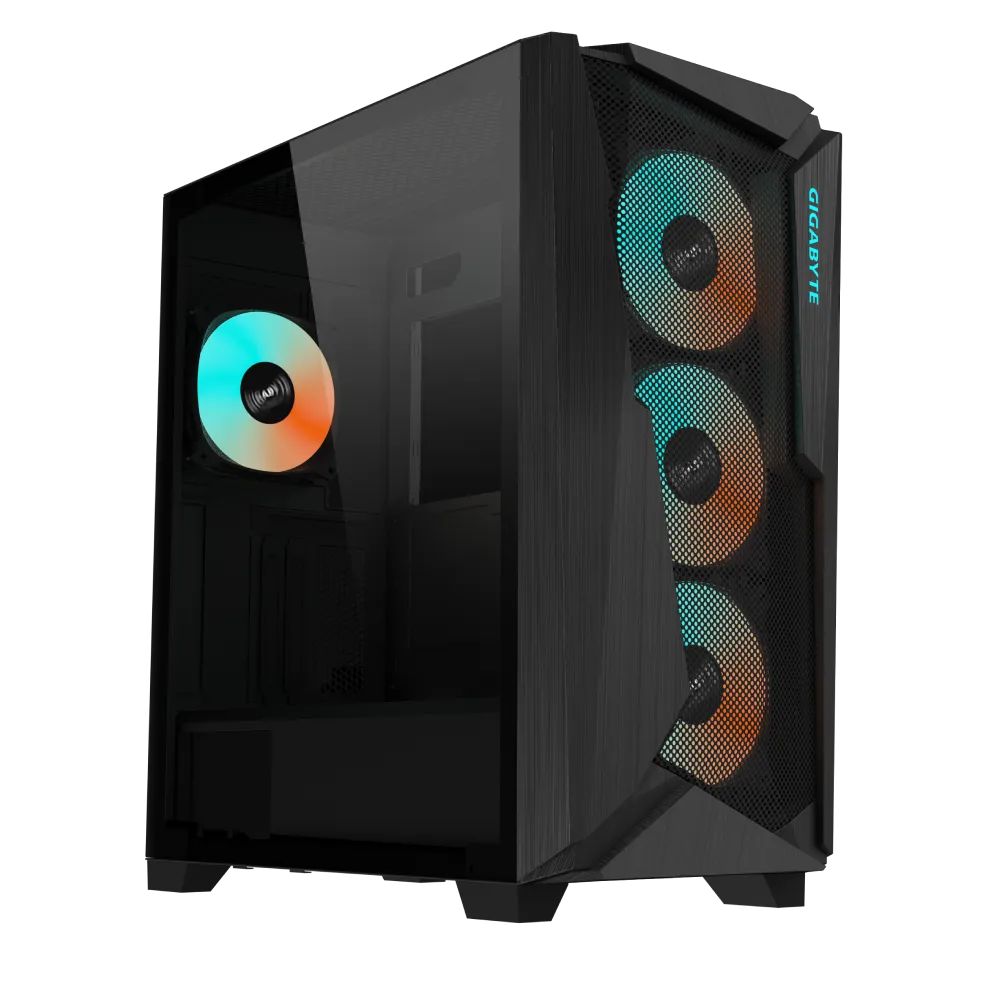

KEY FEATURE
Optimized Airflow Design
RGB Fusion with ARGB Connector Hub
Support Motherboards up to E-ATX
Up to 360mm Liquid Cooling Compatible
Support Vertical GPU Installation
Full-Size Tempered Glass Side Panel
With USB 3.0 x2 and USB 3.1 Type-C x1 on I/O panel
Pre-installed 4 ARGB & PWM fans
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices.
*The type of RGB lighting effect and software depends on the MB support.
ARGB CONNECTOR HUB
The built-in ARGB connector hub is equipped with six 5V 3-pin connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.
TEMPERED GLASS SIDE PANEL
Built with 4mm black tempered glass on side panel, GIGABYTE C301 GLASS is an attractive, versatile chassis that can be a stunning showpiece for your PC parts. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.
DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top magnetic filter, along with the removable filter at the bottom, make maintenance easy.
Case Form Factor Mid Tower
M/B Type Mini ITX / Micro ATX / ATX / E-ATX
Color Black
Materials Steel, Plastic, Glass
Dimensions H=486 W=220 D=473 mm (Within ± 1% error)
Expansion slots 7
5.25″ Drive Bays None
3.5“/2.5” Drive Bays 2
2.5″ Drive Bays 2
I/O Panel USB 3.1 Gen2 Type-C x1/ USB 3.0 x2 / Audio In & Out (supports HD Audio) / LED Switch
Pre-installed Fan
Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)
Fan Support
Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1
Radiator Support
Front : Max 360mm
Top : Max 360mm
Rear : Max 120mm
Power Supply Type Standard ATX (Not included)
Maximum Compatibility
CPU Height : 170mm
GPU Length : 400mm
PSU Length : 180mm
Vertical GPU Mount Yes (VGA holder bracket: 100mm total clearance)
*Requires PCIE Riser Cable
Dust Filters Top, Bottom
RGB Lighting Yes (Support RGB Fusion)
Weight
N.W. 7.8 Kg
G.W 9.0 Kg
Package Dimensions H=530 W=282 D=530mm
Accessories
1.Manual
2.Accessories kit
