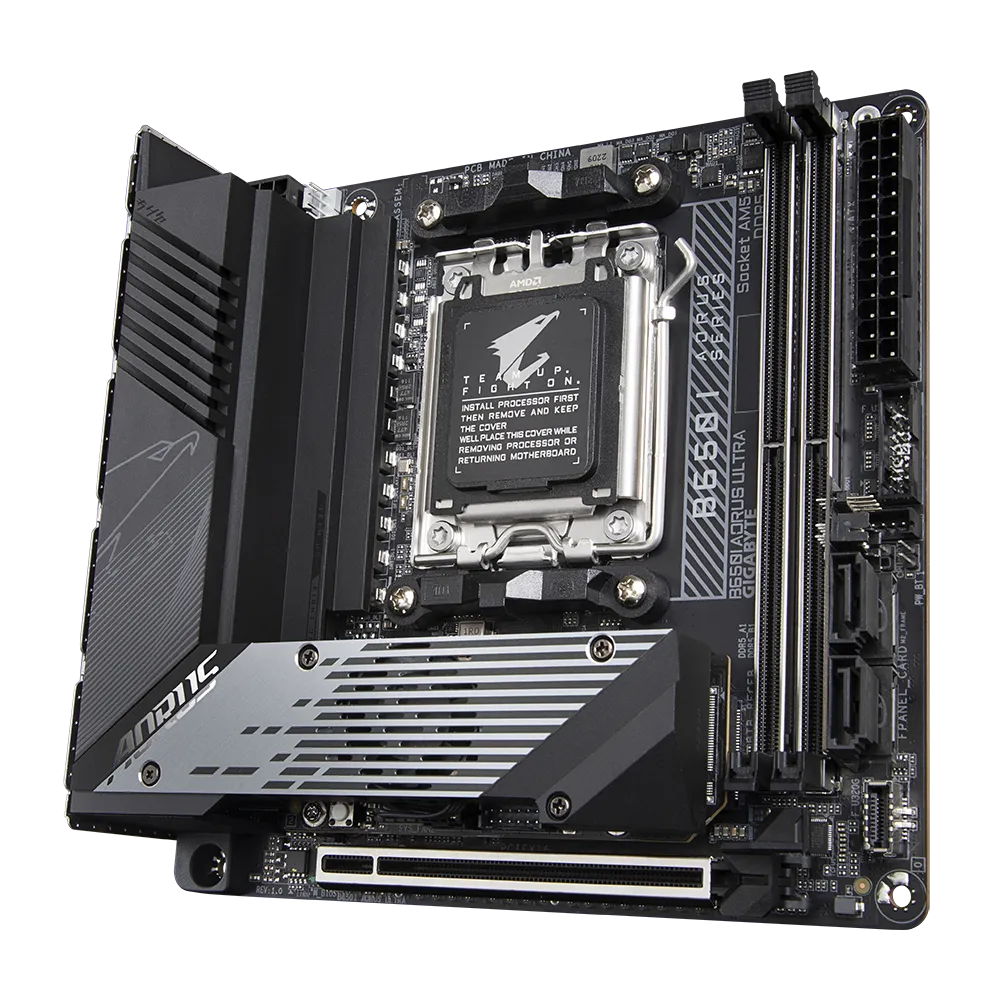

GIGABYTE B650I AORUS ULTRA

Availability:

Out of stock
Add to Wishlist
Compare

AM5 B650 HDMI/DP 2.5G LAN USB3.2/TYPE-C 3xM.2 WIFI.6E/BT ITX

฿11,900.00

Out of stock

Key Feature
  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Fully Covered Heatpipe & M.2 Thermal Guard III with Active Cooling：To Ensure 2280 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Hi-Fi Audio with DTS:X® Ultra：ALC4080 CODEC
  • Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：DP, HDMI, Rear USB-C® with DP Alt Mode, Front USB-C® 20Gb/s
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card



  • CPU
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD B650
  • Memory
    1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated Graphics Processor:

    1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    2. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® ALC4080 CODEC
    2. High Definition Audio
    3. 2-channel
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    AMD Wi-Fi 6E RZ616 (MT7922A22M)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots
    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Storage Interface
    CPU:

    1. 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
      * Actual support may vary by CPU.
    2. 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
    2. 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
    CPU:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    CPU + USB 2.0 Hub:

    1. 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG

    Chipset:

    1. 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    3. 2 x USB 2.0/1.1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x CPU fan/water cooling pump header
    5. 1 x system fan header (SYS_FAN1(Note 1))
    6. 1 x addressable LED strip header(Note 2)
    7. 1 x RGB LED strip header(Note 1)
    8. 3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4))
    9. 4 x SATA 6Gb/s connectors(Note 1)
    10. 1 x front panel header(Note 1)
    11. 1 x front panel audio header (routed from the adapter card on the rear panel)
    12. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    13. 1 x USB 3.2 Gen 1 header
    14. 1 x USB 2.0/1.1 header(Note 2)
    15. 1 x reset button(Note 2)
    16. 1 x reset jumper
    17. 1 x power switch jumper
    18. 1 x Clear CMOS jumper

    (Note 1) The connector is on the front of GC-B650I FRONT CARD.
    (Note 2) The connector is on the front of GC-B650I BTB PLUG.
    (Note 3) The connector is on the back of GC-B650I BTB PLUG.
    (Note 4) The connector is on the back of the motherboard.

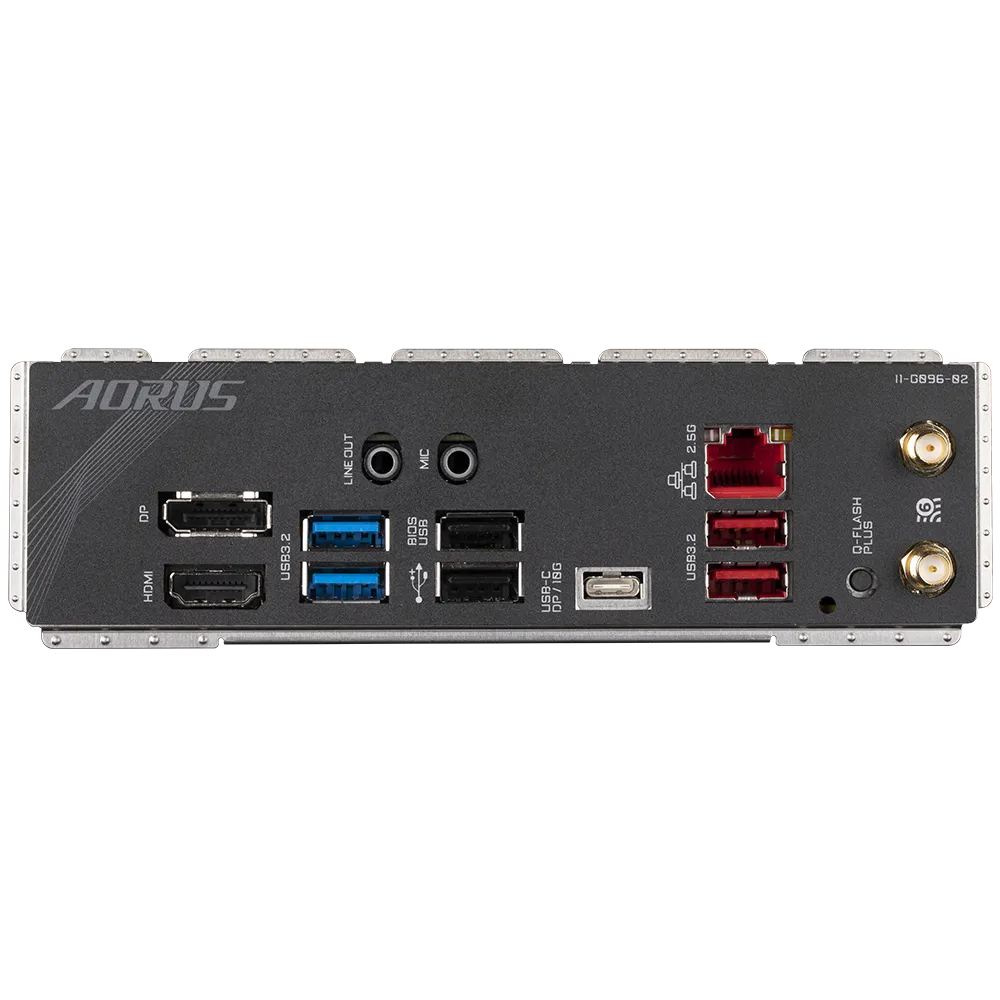

  • Back Panel Connectors
    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
    4. 2 x USB 3.2 Gen 2 Type-A ports (red)
    5. 2 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 2 x SMA antenna connectors (2T2R)
    9. 1 x Q-Flash Plus button
    10. 2 x audio jacks
