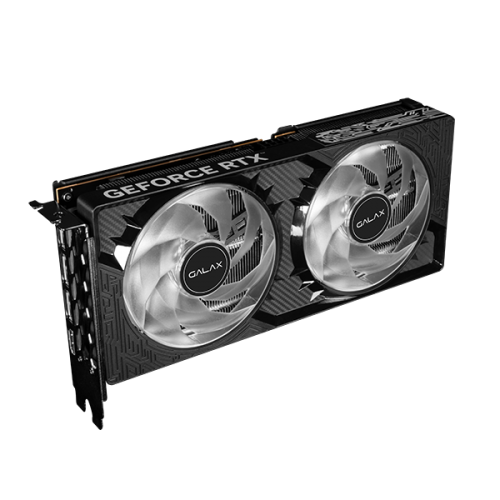

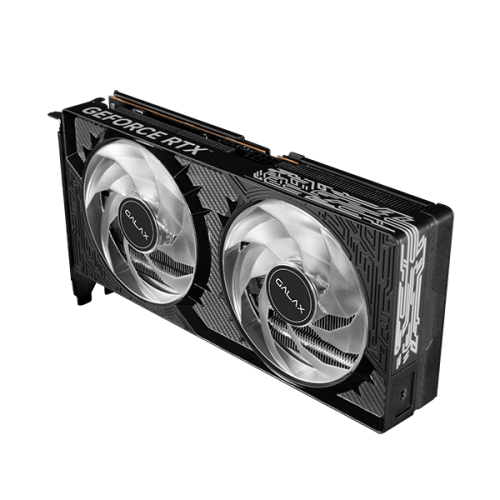

Joining the GeForce RTX 50 Series family, the NVIDIA GALAX GeForce RTX 5060 Ti 1-Click OC takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 92mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA’s newest Blackwell architecture.
It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.
GPU Engine Specs:
CUDA Cores: 4608
Boost Clock: 2587MHz
1-Click OC Clock: 2602MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed: 28 Gbps
Standard Memory Config: 8GB
Memory Interface Width 128-bit GDDR7
Memory Bandwidth: 448 GB/sec
Feature Support:
PCI-E 5.0
Windows 10/11 64-bit
Fan Feature:
2 * 92mm
WINGS 3.0 with Fan Stop @ Idle (All Fans)
Display Support:
DisplayPort 2.1b x 3, HDMI 2.1b x 1
Dimensions:
Dimensions(with Bracket): 247*131*40.6mm
Dimensions(without Bracket): 235*115.5*39.6mm
