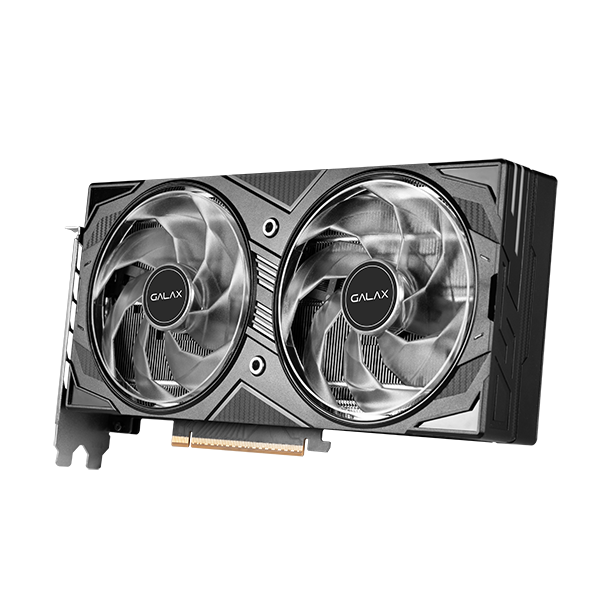

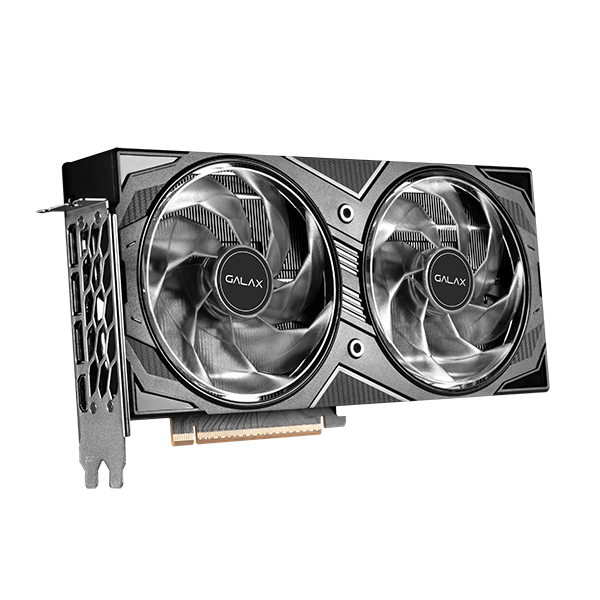

GeForce RTX™ 5060 EX
Product code: 56NSN8MDDAEX
EAN: 4895147160016
Joining the GeForce RTX 50 Series family, the NVIDIA SFF-Ready GeForce RTX 5060 EX takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 102mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA’s newest Blackwell architecture. It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.

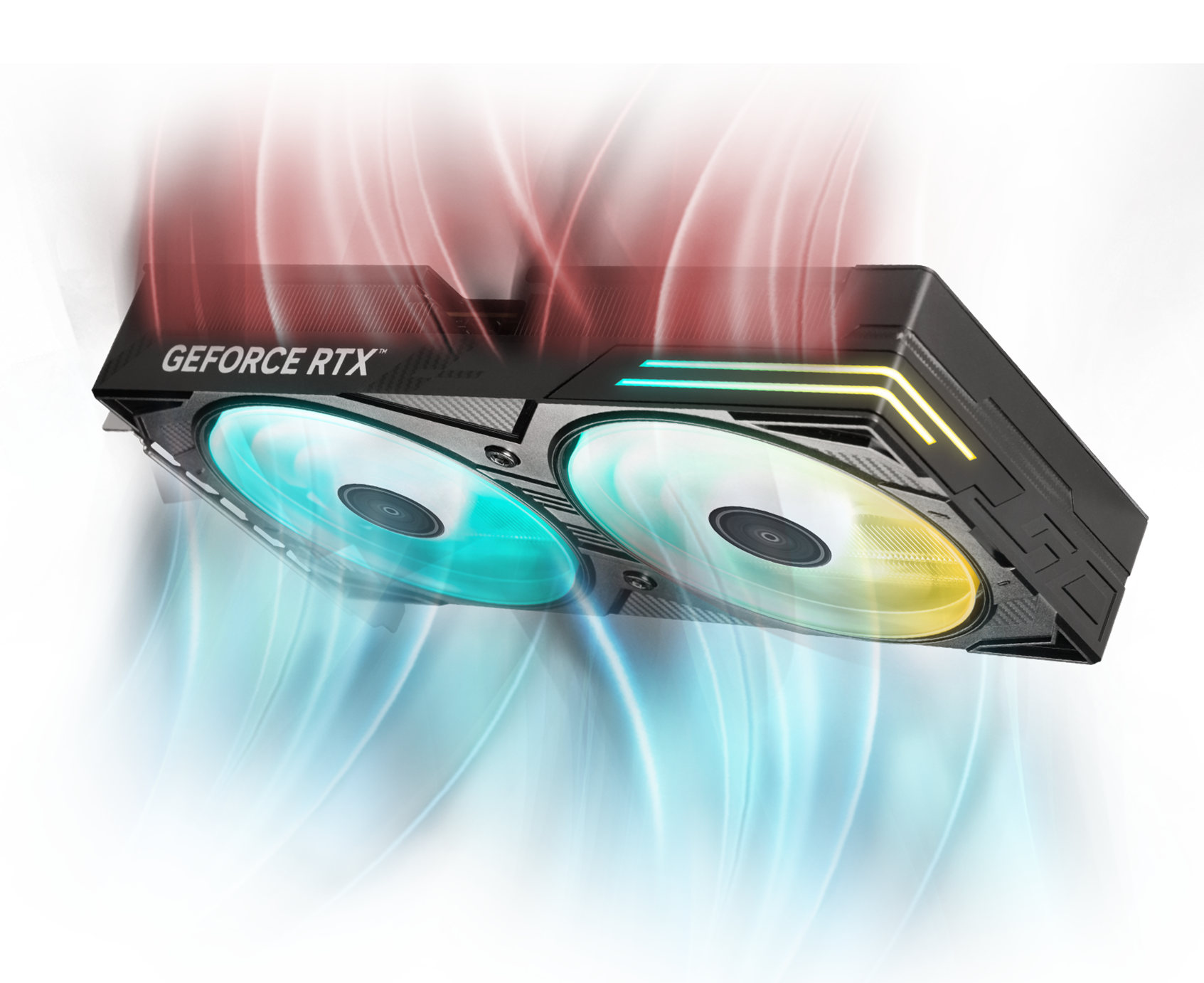

XTREME COOLING
SYSTEM
Dynamic Thermal Control
// Double 102mm Wings 3.0
LARGER FAN.
IMPROVED AIR FLOW
50 Series EX graphics card now upgraded to Wings 3.0.
With a powerful 102mm fan support, maximise air flow efficiency.

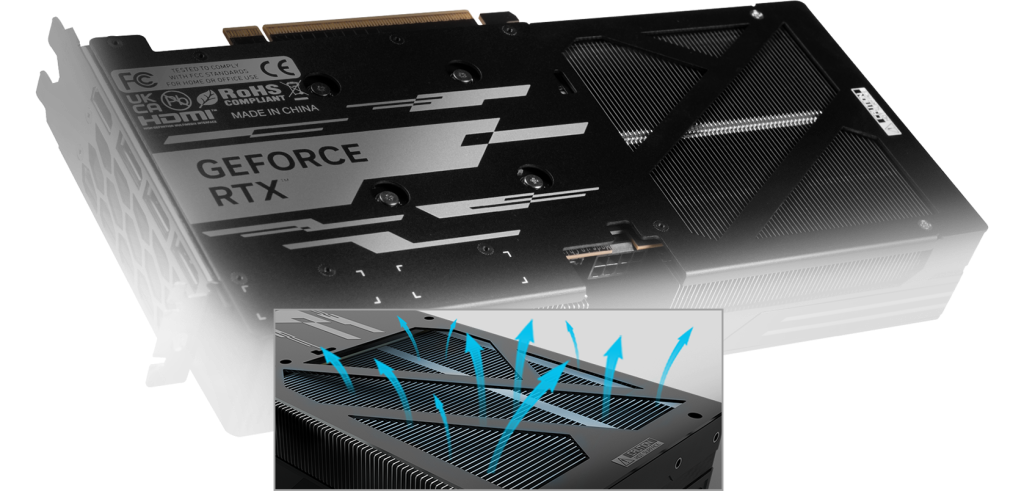

ENHANCED BACKPLATE
Expanded Opening for Superior Cooling
GPU Engine Specs:
- CUDA Cores: 3840
- Boost Clock: 2535 MHz
- 1-Click OC Clock: 2550 MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
- Memory Speed: 28Gbps
- Standard Memory Config: 8GB GDDR7
- Memory Interface Width 128-bit
- Memory Bandwidth: 448GB/sec
Feature Support:
- PCI-E 5.0
- Windows 11 64-bit
Fan Feature:
- 2*102mm
- WINGS 3.0 with Fan stop @ Idle (All Fans)
Display Support:
- DisplayPort 2.1b x 3, HDMI 2.1b x 1
Dimensions:
- Dimensions(with Bracket): 267*142.5*40.6mm (NVIDIA SFF-Ready)
- Dimensions(without Bracket): 255*127*39.6mm
In Box Accessories:
- 1-Click Sync Pro cable
