Fractal Design Terra Graphite

Availability:

Out of stock


฿6,990.00

Out of stock

Terra

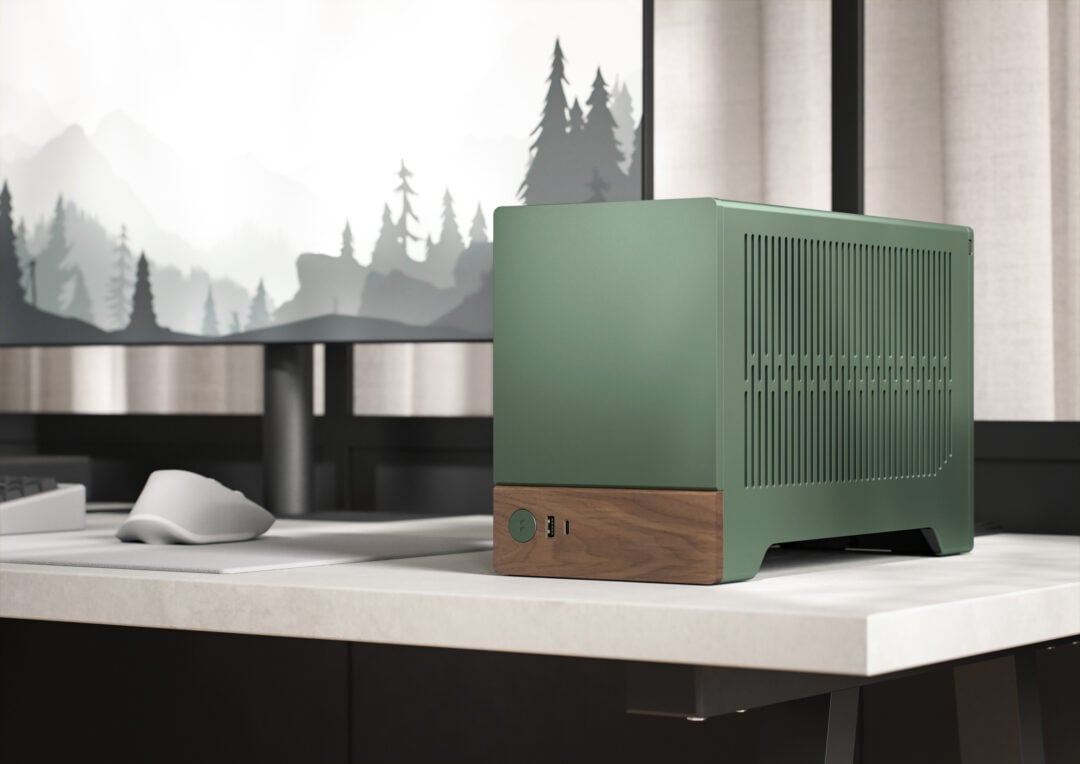

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.

  • • Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case
  • • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
  • • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

Elegantly crafted

  • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
  • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
  • Make the most of natural airflow through the ventilated top, side and bottom panels

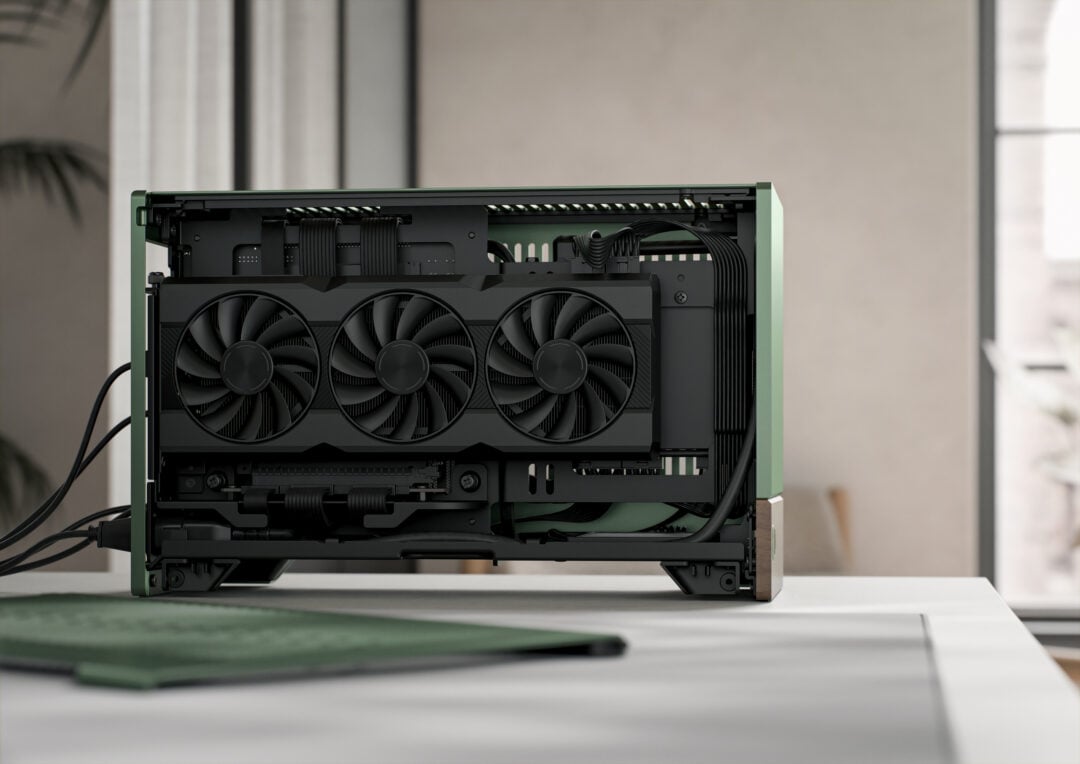

Engineered for SFF gaming

  • Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
  • Get a head start on your build with the included PCIe 4.0 riser cable
  • Store up to two SSDs in the dedicated 2.5” drive mounts

Adjustable motherboard plate

Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall

Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other



Specifications

  • Dedicated 2.5″ drive mounts
    2 (included)
  • Expansion slots
    3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
  • Front interface
    1x USB Type-C 20Gbps (USB 3.2 Gen 2×2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
  • Total fan mounts
    1x 120 mm
  • Bottom fan
    1x 120 mm
  • Tool-less push-to-lock
    Both side panels and top panel (can also be locked with screws)

Compatibility

  • Motherboard compatibility
    mITX
  • Power supply type
    SFX-L/ SFX
  • PSU max length
    130 mm
  • Side radiator
    1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
  • GPU max length
    322 mm
  • GPU max width (if GPU height is lower than 131 mm)
    72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
  • GPU max width (if GPU height 131-145mm)
    62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
  • GPU max height
    145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
  • *CPU cooler max height
    48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
  • *Additional comment
    Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.

Dimensions

  • Case dimensions (LxWxH)
    343 x 153 x 218 mm
  • Package dimensions (LxWxH)
    394 x 215 x 292 mm
  • Net weight
    3.1 kg
  • Gross weight
    4.0 kg
  • Volume
    10.4 liter

Other

  • Package Contents
    Case, Accessory box, Manual
  • SKU
    Graphite: FD-C-TER1N-01
  • Warranty
    2 Years



SKU: FD-C-TER1N-01 Categories: ,
