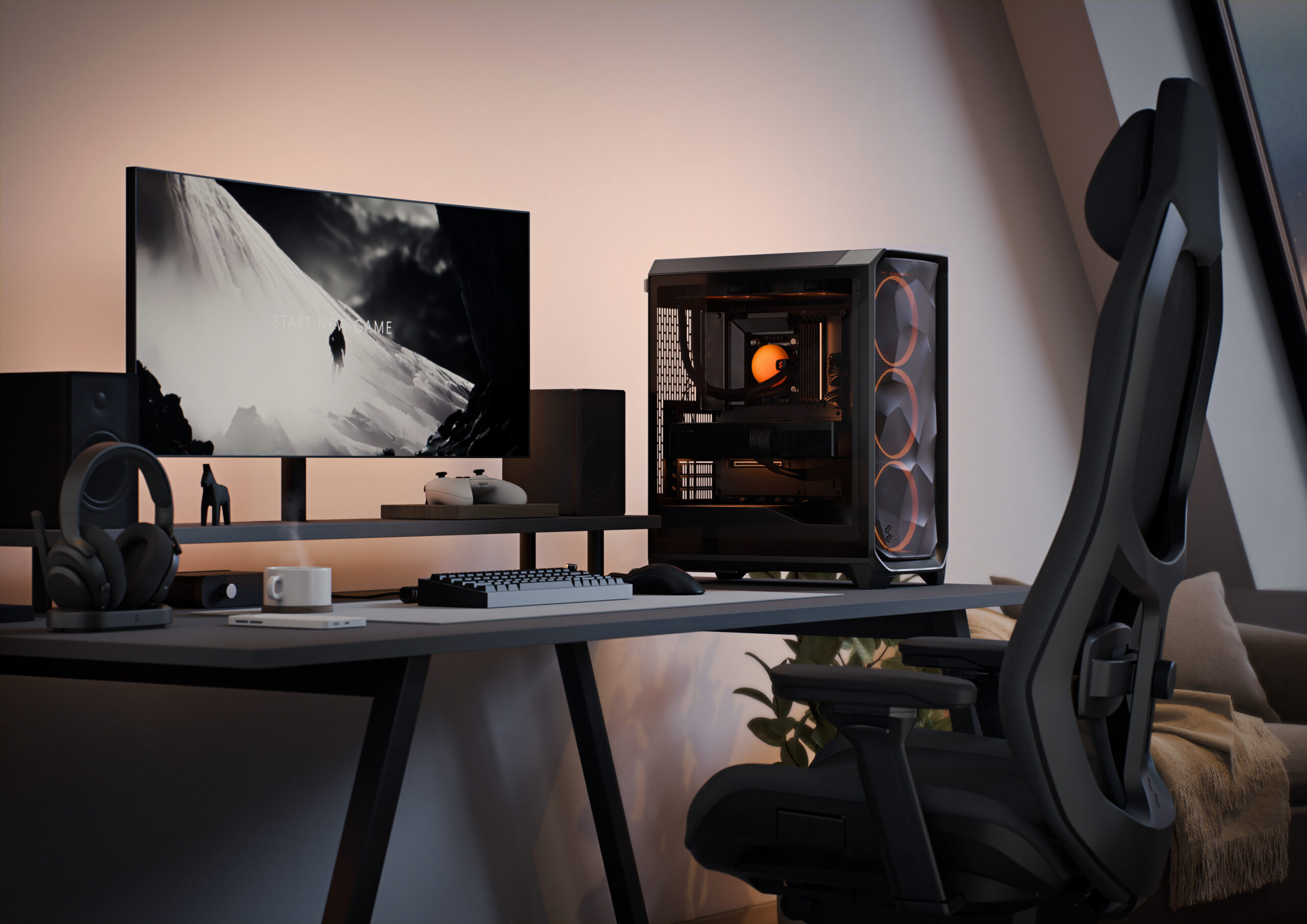

Meshify 3
Experience advanced cooling and expressive, aerodynamic design. An evolution of our mesh performance series, Meshify 3 offers performance-boosting engineering upgrades, three powerful Momentum fans.
Advanced airflow
Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling.
Evolved design
Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Clean finish
Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Specifications
3.5″/2.5″ drive mounts 2/4
Dedicated 2.5″ drive mounts 2 (6 total)
5.25” drive mounts –
Expansion slots 7
Front interface
1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
Total fan mounts 6x 120 mm or 5x 140 mm + 1x 120 mm
Front fan 3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included)
Top fan 2x 120 mm, 2x 140 mm
Rear fan 1x 120 mm
Bottom fan –
Dust filters PSU (Bottom)
Cable routing space 34,5 mm
Cable cover Yes
Cable organizers 3 Hook-and-loop straps + 3 Cable Aligners
Tool-less push-to-lock
Both Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket
Captive thumbscrews Top Radiator Bracket, PSU Bracket
Left side panel Tempered Glass (TG/RGB/Ambience Pro RGB)
Right side panel Industrial steel
Compatibility
Power supply type ATX
Motherboard compatibility E-ATX (277 mm) / ATX / MATX / m-ITX
PSU max length 180 mm
GPU max length 349 mm
GPU max height 176 mm (7 slot) including cables
CPU cooler max height 173 mm
Front radiator 280/360 mm
Top radiator 240/280 mm
Rear radiator 120 mm
Bottom radiator –
Dimensions
Case dimensions (LxWxH) 433 x 229 x 507 mm
Case dimensions w/o feet/protrusions/screws 423 x 229 x 483 mm
Package dimensions 596 x 345 x 550 mm
Net weight 8.8 kg (TG and RGB)
Gross weight 10.6 kg (TG and RGB)
Other
Package contents
Case, Accessory Box, manual, Manual, Red Note
Accessory Box content (Solid/TG/RGB)
Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4
Product Code Black RGB TG Light Tint: FD-C-MES3A-06
