Fractal Design Define 7 Compact Black Light TG

Availability:

Out of stock
Add to Wishlist
Compare

฿4,890.00

Out of stock

Define 7 Compact Light Tempered Glass

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

  • • Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
  • • Fits GPUs up to 360 mm with a 240 mm radiator in the top
  • • Top panel effortlessly swaps from solid steel to filtered ventilation



Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

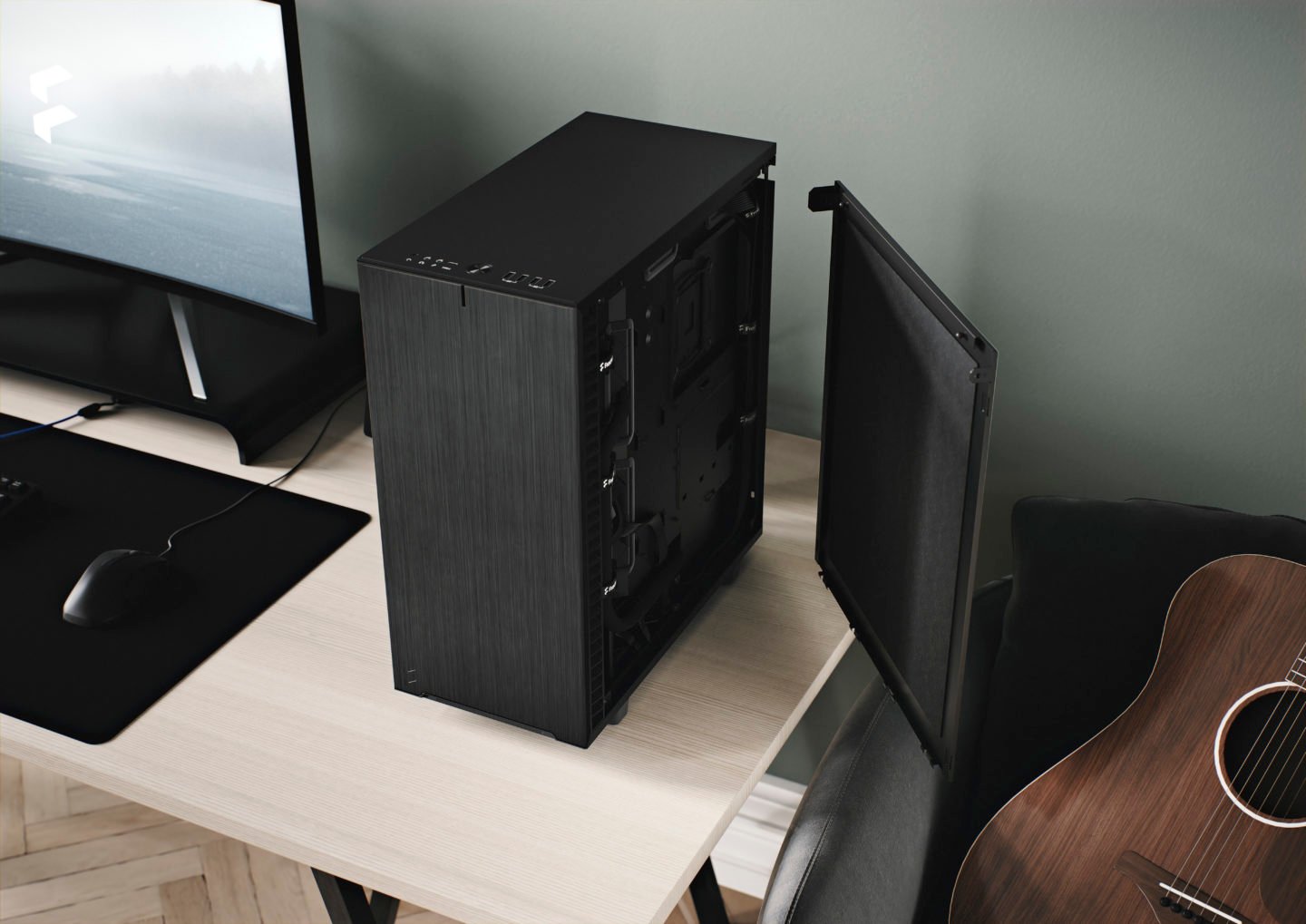

Exceptionally silent

  • Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

  • Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators up to 360 mm
  • 1 x 120 mm and 1 x 140 mm Dynamic X2 fans included
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support



Robust Front I/O

Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps

Specifications

  • 3.5″/2.5″ Universal drive brackets
    2
  • Dedicated 2.5″ drive brackets
    2 trays included, 4 positions total
  • Expansion slots
    7
  • Front ports
    1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
  • Total fan mounts
    7 x 120 or 4 x 140 mm and 2 x 120 mm
  • Front fan
    3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14 included)
  • Top fan
    2 x 120 or 2 x 140 mm
  • Rear fan
    1 x 120 mm, (1 x Dynamic X2 GP-12 included)
  • Bottom fan
    1 x 120 mm (requires removal of HDD cage)
  • Dust filters
    Top, 2 x front, full length bottom
  • Fixed velcro straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD brackets, SSD brackets, PSU bracket
  • Left side panel
    Tempered glass
  • Right side panel
    Industrial sound-damped steel

Compatibility

  • Motherboard compatibility
    ATX / mATX / mITX
  • Power supply type
    ATX
  • PSU max length
    200 mm (with HDD cage and front fan)
  • GPU max length
    341 mm (360 mm without front fan)
  • CPU cooler max height
    169 mm
  • Front radiator
    Up to 360/280 mm (max 145 mm width)
  • Top radiator
    Up to 240 mm
  • Rear radiator
    120 mm
  • Bottom radiator
    120 mm (requires removal of HDD cage)
  • Cable routing space
    17-28 mm

Dimensions

  • Case dimensions (LxWxH)
    427 x 210 x 474 mm
  • Case dimensions w/o feet/protrusions/screws
    415 x 210 x 451 mm
  • Package dimensions (LxWxH)
    536 x 310 x 521 mm
  • Net weight
    8.76 kg
  • Package weight
    11.04 kg
  • Volume
    39.3 liters

Other

  • Package contents
    Define 7 Compact, Accessory box, User manual, Ventilated top panel
  • EAN
    7340172702184
  • UPC
    843276102180
  • JAN
    4537694275736
  • Product code
    FD-C-DEF7C-03



SKU: FD-C-DEF7C-03 Categories: ,
