The DeepCool LS720 WH premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 360mm radiator, three FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1 Improved microchannel design
ensures optimal coolant flow.
2 Powerful three-phase drive
motor up to 3100 RPM.
3 Thick solid copper base
with a seamless match.
Cool and Quiet
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
500~2250 RPM *
Dynamic PWM Range
85.85 CFM
Supreme Airflow
≤32.9 dB(A)
Full Load Noise
50,000 Hours
Long Operational Lifespan
Simple and Secure

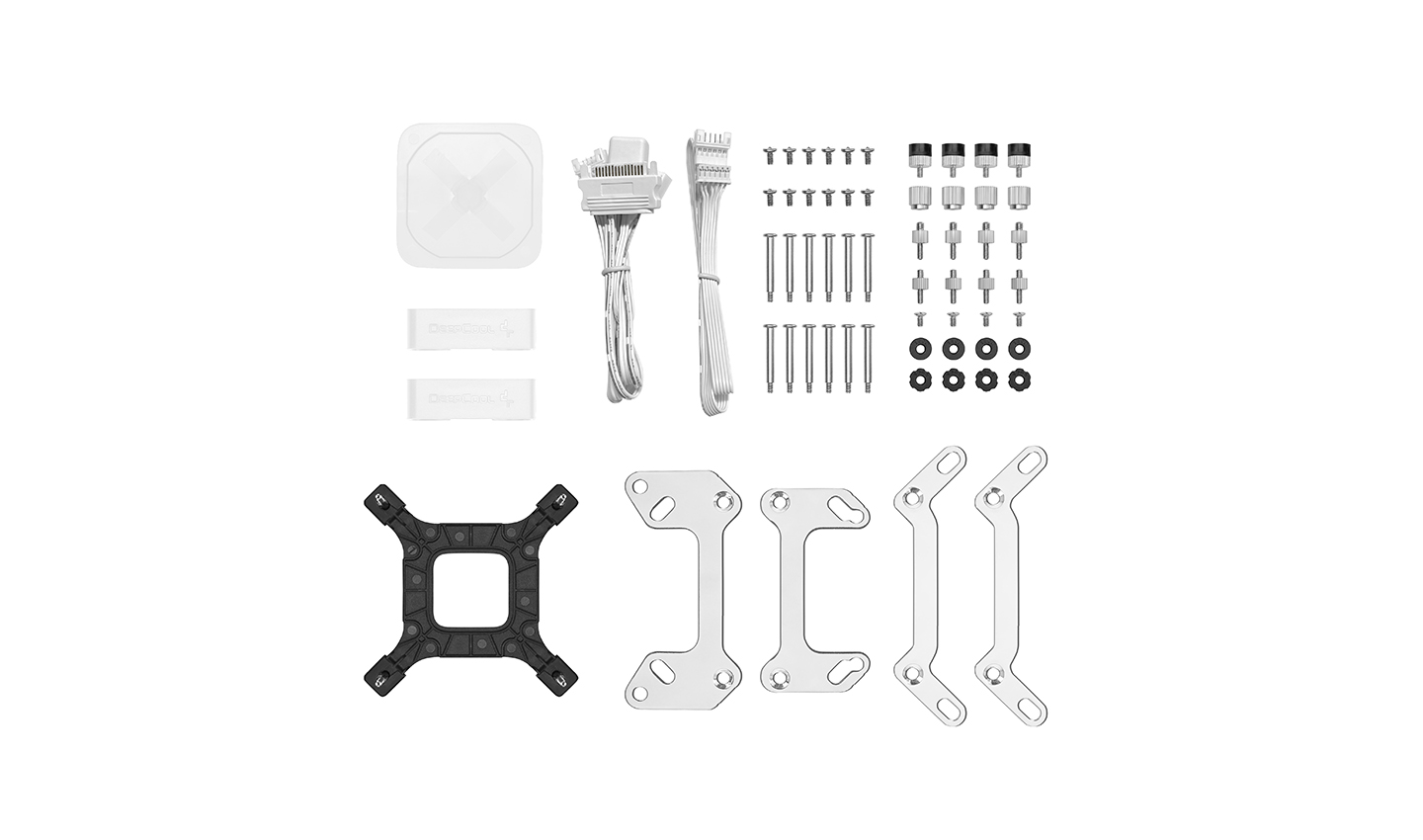

Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
INTEL
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Synchronize Your Setup with RGB lighting effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
* 6 O’Clock mounting position is the official DeepCool recommended mounting method for optimal performance.
Technical Spec
Net Weight 1607 g
Radiator Dimensions 402×120×27 mm(L×W×H)
Radiator Material Aluminum
Tube length 410 mm(L×W×H)
Pump Dimensions 86×74×57 mm(L×W×H)
Pump Speed 3100 RPM±10%
Pump Noise 19 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.47 A
Pump Power Consumption 5.64 W
Fan Dimensions 120×120×25 mm(L×W×H)
Fan Speed 500~2250 RPM±10%
Fan Airflow 85.85 CFM
Fan Air Pressure 3.27 mmAq
Fan Noise ≤32.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.29 A
Fan Power Consumption 3.48 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.2 W（PUMP）/ 5.4 W（FAN×3）
