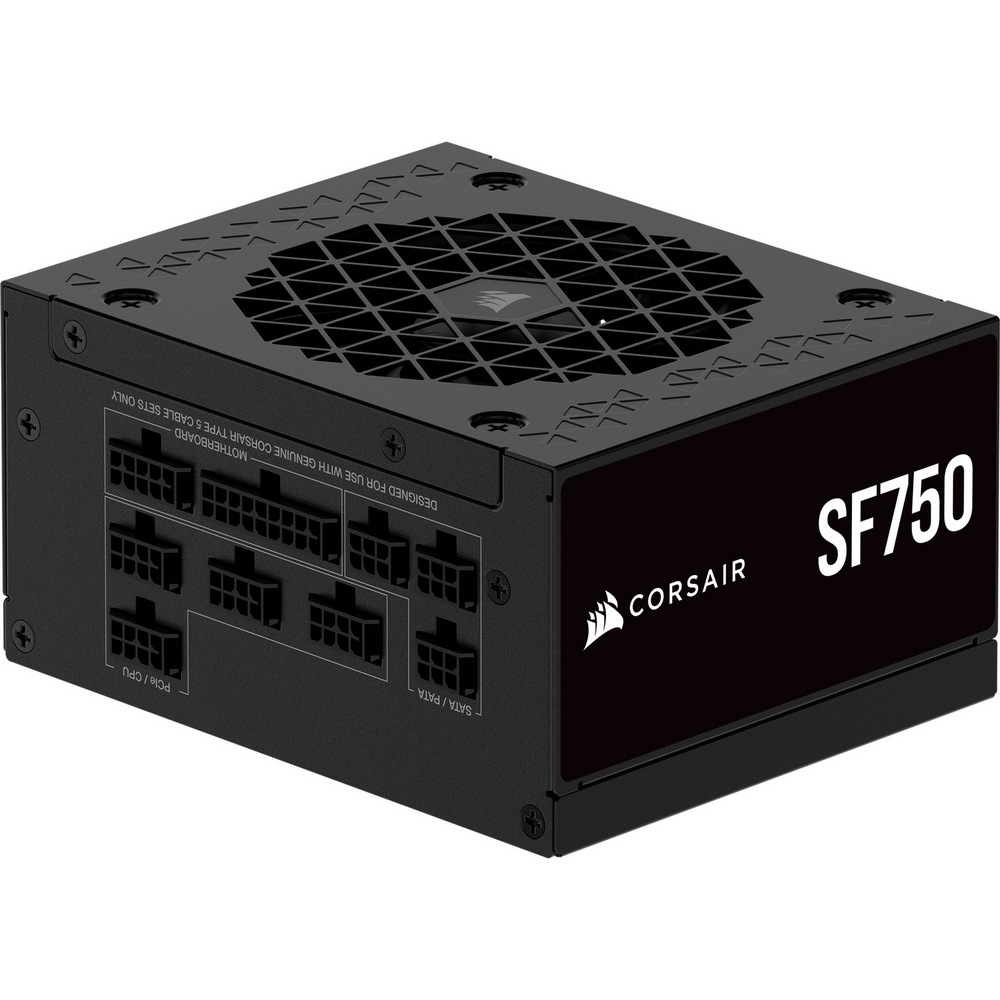

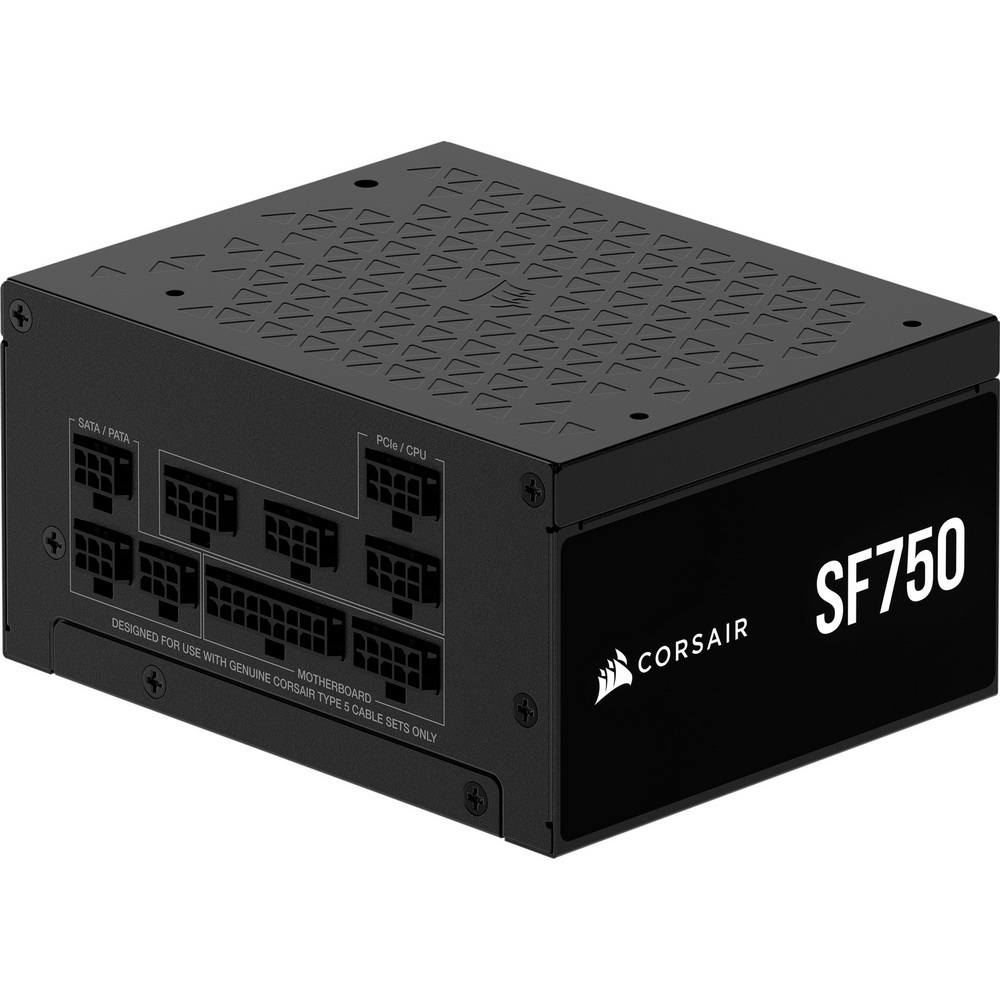

The Corsair SF750 (2024) is the lowest capacity member of the upgraded SF line, offering ATX v3.1 compatibility and enough power to handle a potent gaming system.
and added compliance with the latest ATX12V version 3.1 and PCIe version 5.1 standards. The 92mm PWM fan with Zero RPM mode is still there, but now with a Fluid Dynamic Bearing for the quietest operation at low loads.
POWER OUTPUT TABLE
The power supply uses a single +12V power rail and comes with all necessary protections for safe operation.
SF750
+5V 20A
+3.3V 20A
+5V & +3.3V Max Output 130W
+12V 62.5A
+12V Max Output 750W
+5Vsb 3.0A
+5Vsb Max Output 15W
Total Power 750W
CABLE CONFIGURATION
All cables are individually sleeved and for graphics cards you have the option to use either PCIe 6+2 or 12V-2×6 aka 12VHPWR straight out of the box. The connectors on the power supply are only compatible with CORSAIR Type-5 Micro-Fit connectors. Do not use cables that are not 100% compatible with these units, as this could result in catastrophic failure.
SF750
ATX 24-Pin 1 (300mm ± 10mm)
EPS/ATX12V 4+4-Pin 2 (400mm ± 10mm)
PCI-E 6+2-Pin 2 (400mm ± 10mm)
PCI-E 12+4-Pin aka 12V-2×6/12VHPWR 1 (400mm ± 10mm)
SATA Cable (4xStraight plugs per cable) 1 (445mm ± 10mm)
SATA Cable (4x Angled plugs per cable) 1 (445mm ± 10mm)
PATA (3x plugs per cable) 1 (330mm ± 10mm)
FAN NOISE LEVELS
These power supplies are equipped with a 92mm PWM controlled zero RPM fan that only starts spinning when the power supply load reaches 40% or more. The following applies to each model:
SF750 – Zero RPM up to 300W load
80 PLUS Platinum efficiency
Model SF750
SKU Number CP-9020284
Form Factor SFX
Measurements 100mm x 125mm x 63.5mm
AC Input 100V – 240V / 10A-5A
80 PLUS / Cybenetic Rating 80 PLUS Platinum / Cybenetics Platinum
ATX12V Version 3.1
EPS12V Version 2.92
PCIe Version 5.1 Ready
Modularity Fully Modular
CORSAIR Connector Type (PSU) Type-5 Micro-Fit
Cable Type Individually Sleeved
Fan Size / Type 92mm / Fluid Dynamic Bearing
Zero RPM Mode Yes
105°C Rated Japanese Capacitors Yes
Continuous Operating Temperature 50°C
Warranty 7-Years
SFX-to-ATXAdapter Bracket Yes
Protections OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temp), OPP (Over Power)
