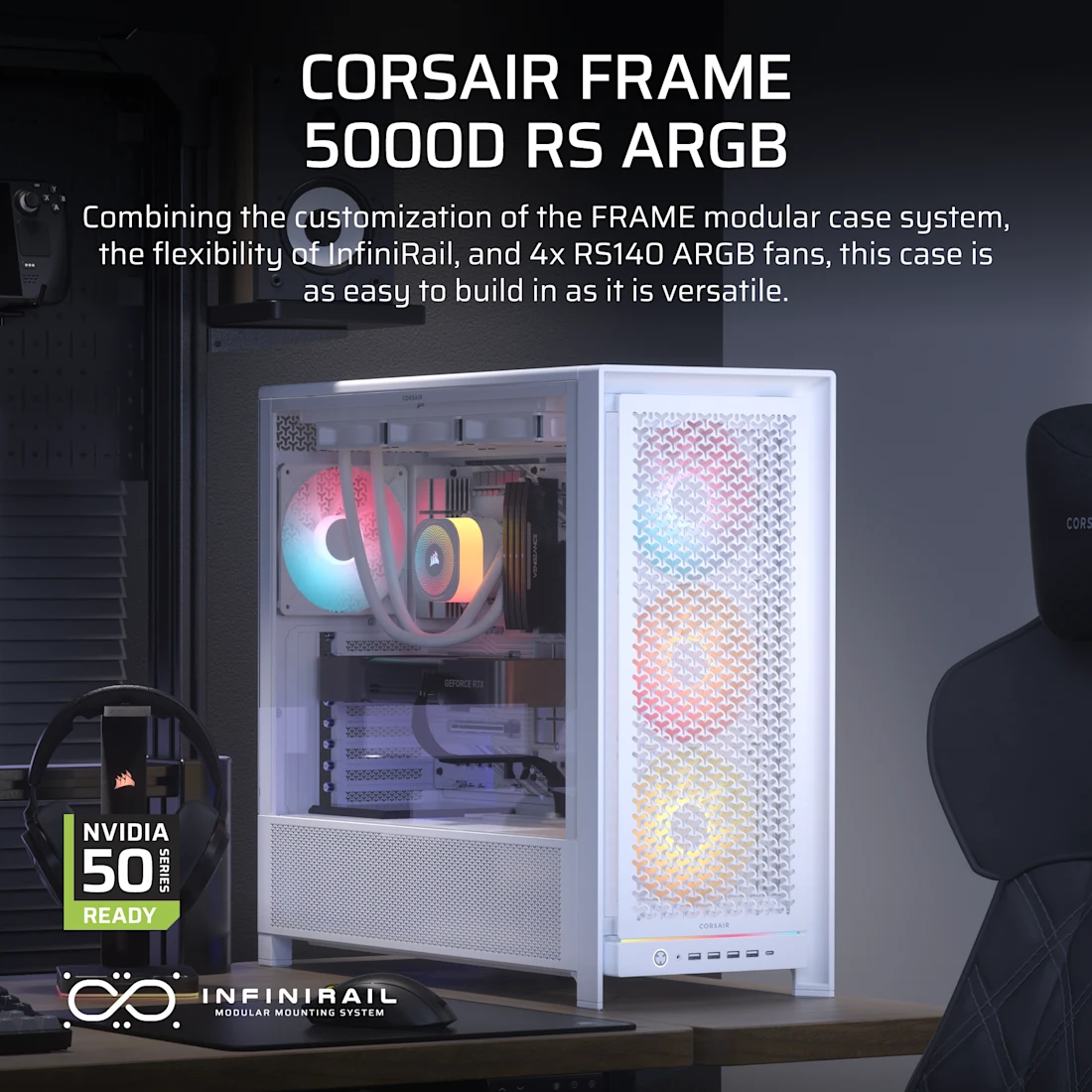

FRAME 5000D RS ARGB HIGH-AIRFLOW MID-TOWER PC CASE – WHITE
The CORSAIR FRAME 5000D RS ARGB is a modular and spacious mid-tower PC case featuring InfiniRail™ Fan Mounting System, RapidRoute 2.0 cable management, and is compatible with reverse connector motherboards.
Includes
- Fully-modular design for next-level customization
- 4x RS140 ARGB Fans with daisy-chain connections
- InfiniRail Fan Mounting System for easier building
- Triple 360mm radiator support
- GPU anti-sag stabilization arm
- Compatible with reverse connector motherboards
- RapidRoute 2.0 pegboard motherboard tray and cable looms
50 SERIES GPUs ARE HERE
BUILD YOUR WAY
ENDLESS MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.
This case evolves with your needs, offering near limitless options for upgrades and changes.

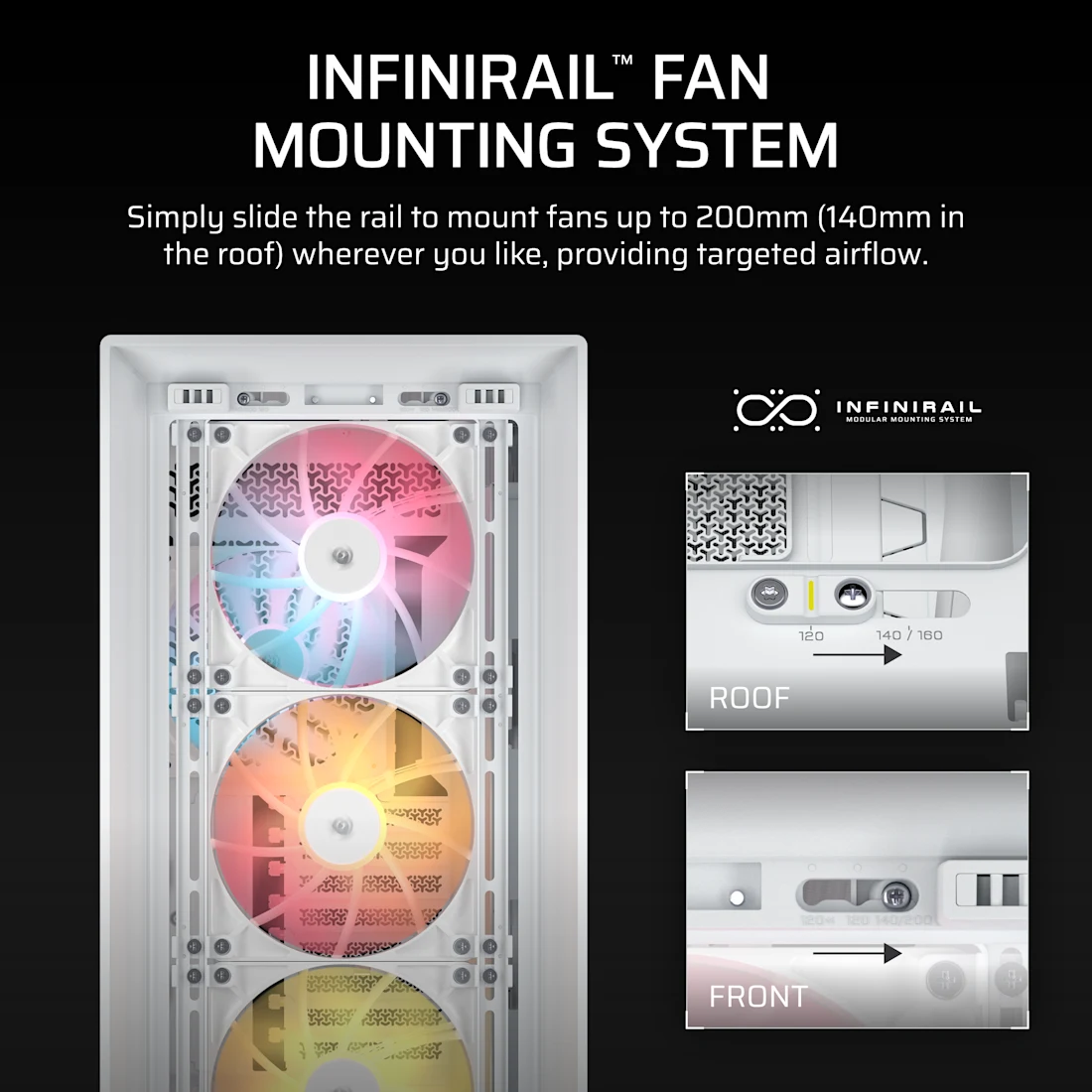

INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

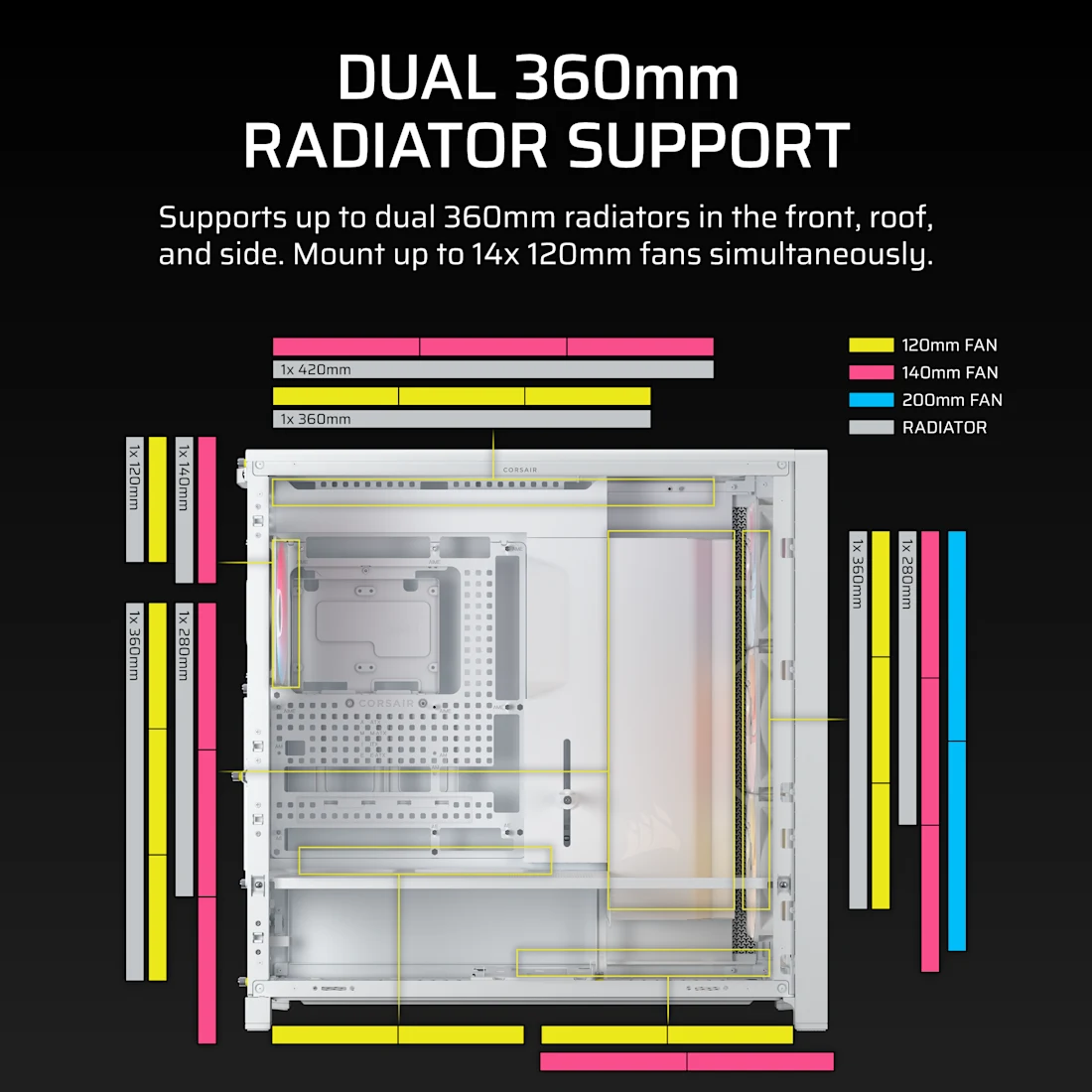

SUPPORT FOR UP TO A 420mm RADIATOR
Boost your cooling with three mounting locations for up to a 420mm radiator up top and 360mm on the front and the side. You can mount up to 14x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
NEXT-LEVEL CABLE MANAGEMENT
RAPIDROUTE 2.0
CORSAIR has upgraded RapidRoute to version 2.0, featuring a pegboard motherboard tray with detachable and rotatable tie-down buckles and all-new cable looms to easily wrap excess cable lengths for a tidy and professional appearance.

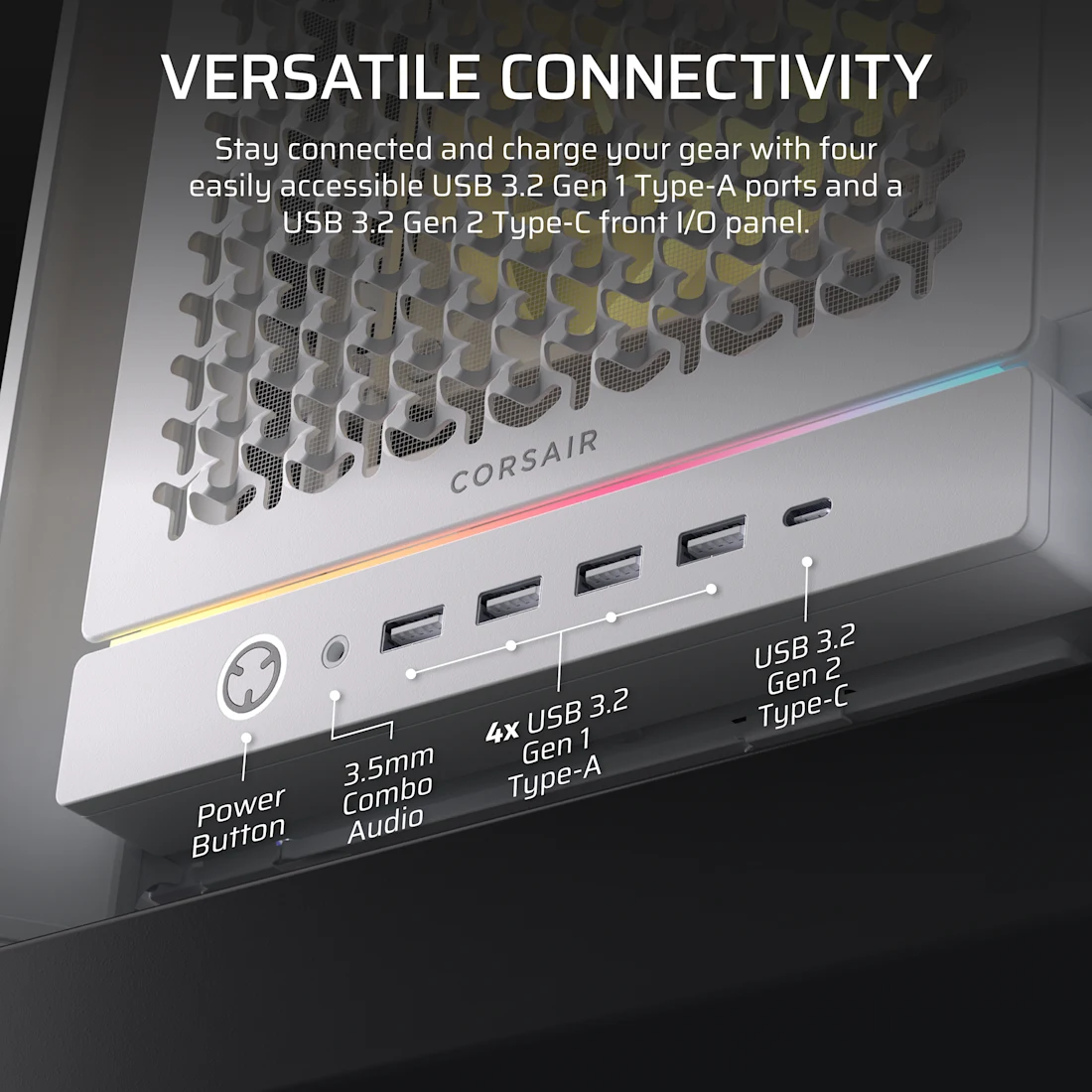

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 4x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
Tech Specs
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
|---|---|
| Case Height | 542 |
| Case Length | 556 |
| Case Width | 250 |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Color | WHITE |
| Case Size | Mid-Tower |
| Case Window | Tempered Glass |
| Internal 3.5″ Drive Bays | 2 |
| Internal 2.5″ Drive Bays | 6 |
| Maximum CPU Cooler Height | 175mm |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 450mm |
| Weight | 15.48 |
| Case Expansion Slots | 8 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support – Top | 420mm, 360mm, 280mm, 240mm |
| Radiator Support – Front | 360mm, 280mm, 240mm |
| Radiator Support – Bottom | None |
|---|---|
| Radiator Support – Side | 360mm, 280mm, 240mm |
| Radiator Support – Rear | 140mm, 120mm |
| Fan Support – Top | 3x 120mm, 3x 140mm |
| Fan Support – Front | 3x 120mm, 3x 140mm, 2x 200mm |
| Fan Support – Bottom | 4x 120mm |
| Fan Support – Side | 3x 120mm, 3x 140mm |
| Fan Support – Rear | 1x 140mm, 1x 120mm |
| Front IO Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS ARGB Series |
| Dust Filtration | Yes |
| Cable Routing Space | 42mm |
| RapidRoute Included | Yes |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
