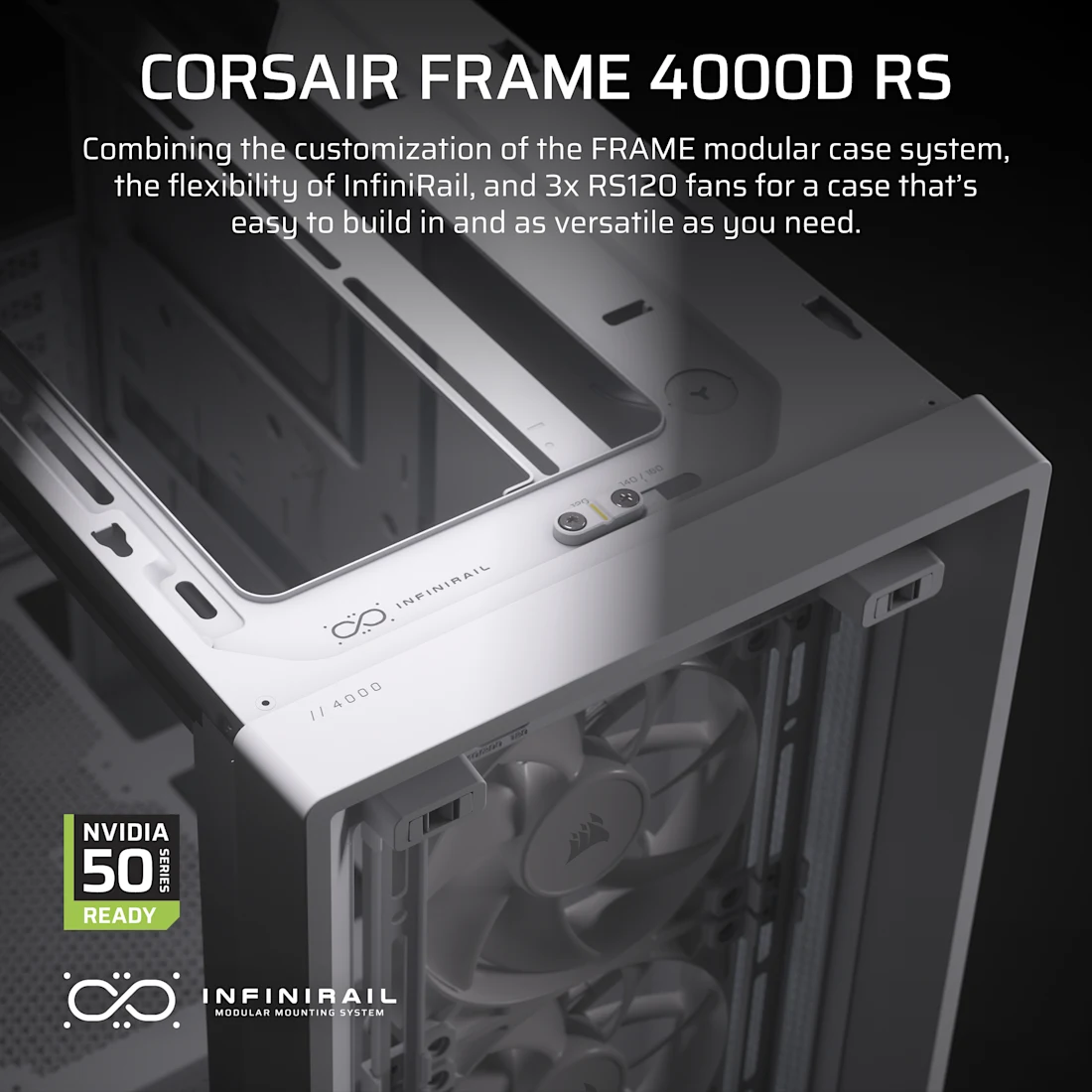

The CORSAIR FRAME 4000D RS is a fully-modular and spacious mid-tower PC case featuring InfiniRail™ Fan Mounting System and compatible with reverse connector motherboards.
Includes
Fully-modular design for next-level customization
InfiniRail™ Fan Mounting System for easier building
Includes three RS120 performance fans
Dual 360mm radiator support
GPU anti-sag stabilization arm
Compatible with reverse connector motherboards

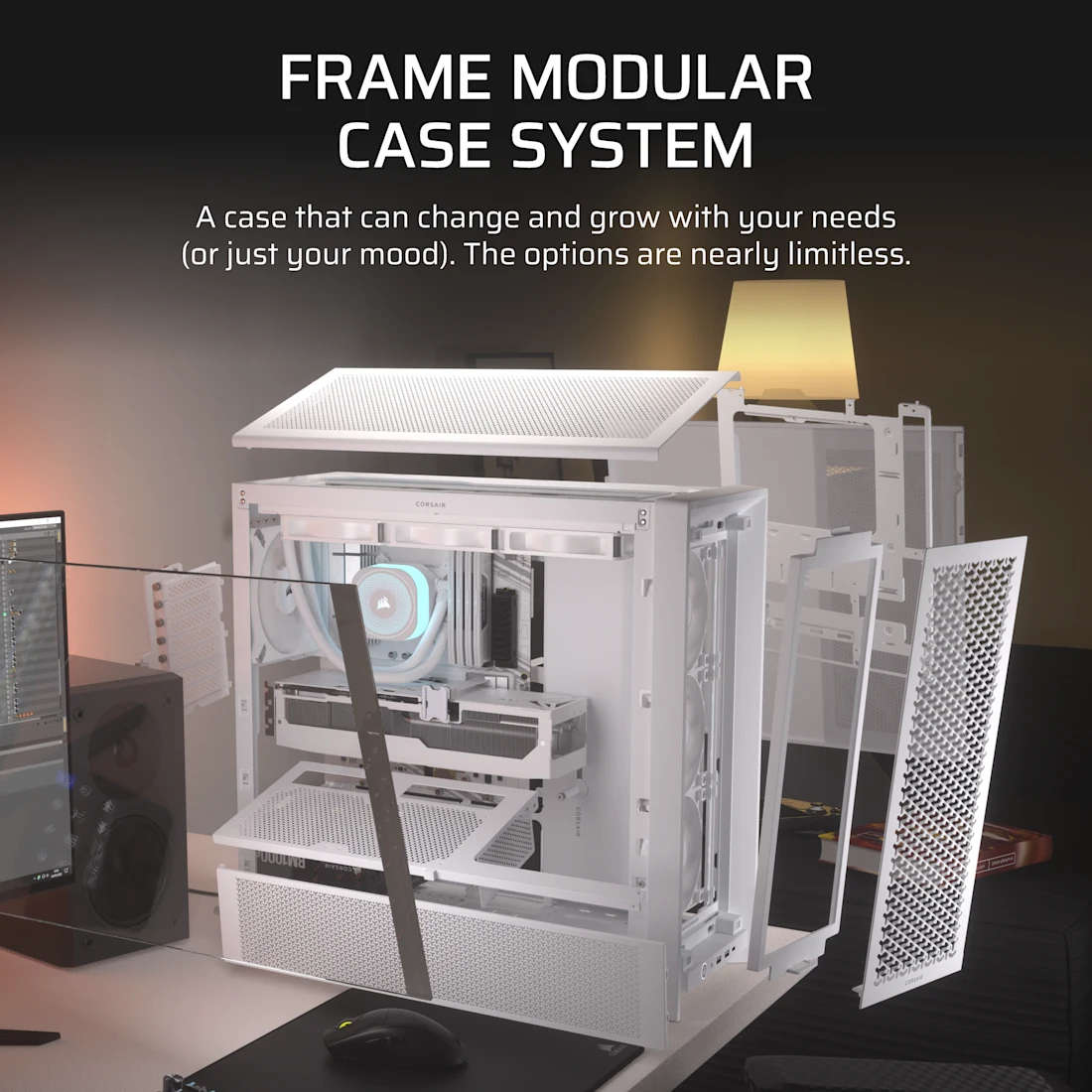

ENDLESS MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.
This case evolves with your needs, offering near limitless options for upgrades and changes.
INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

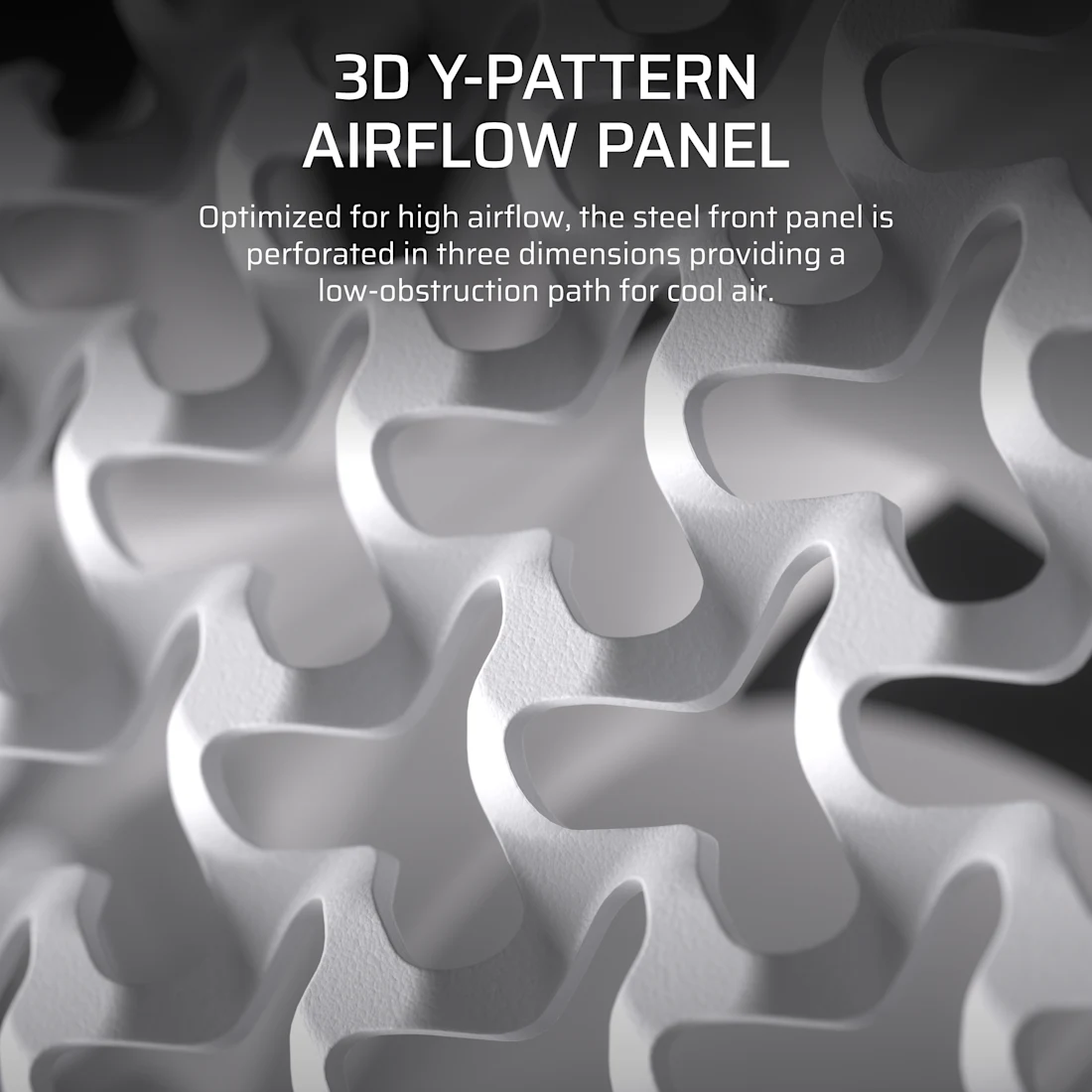

UP TO 12% MORE AIRFLOW
Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.
DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

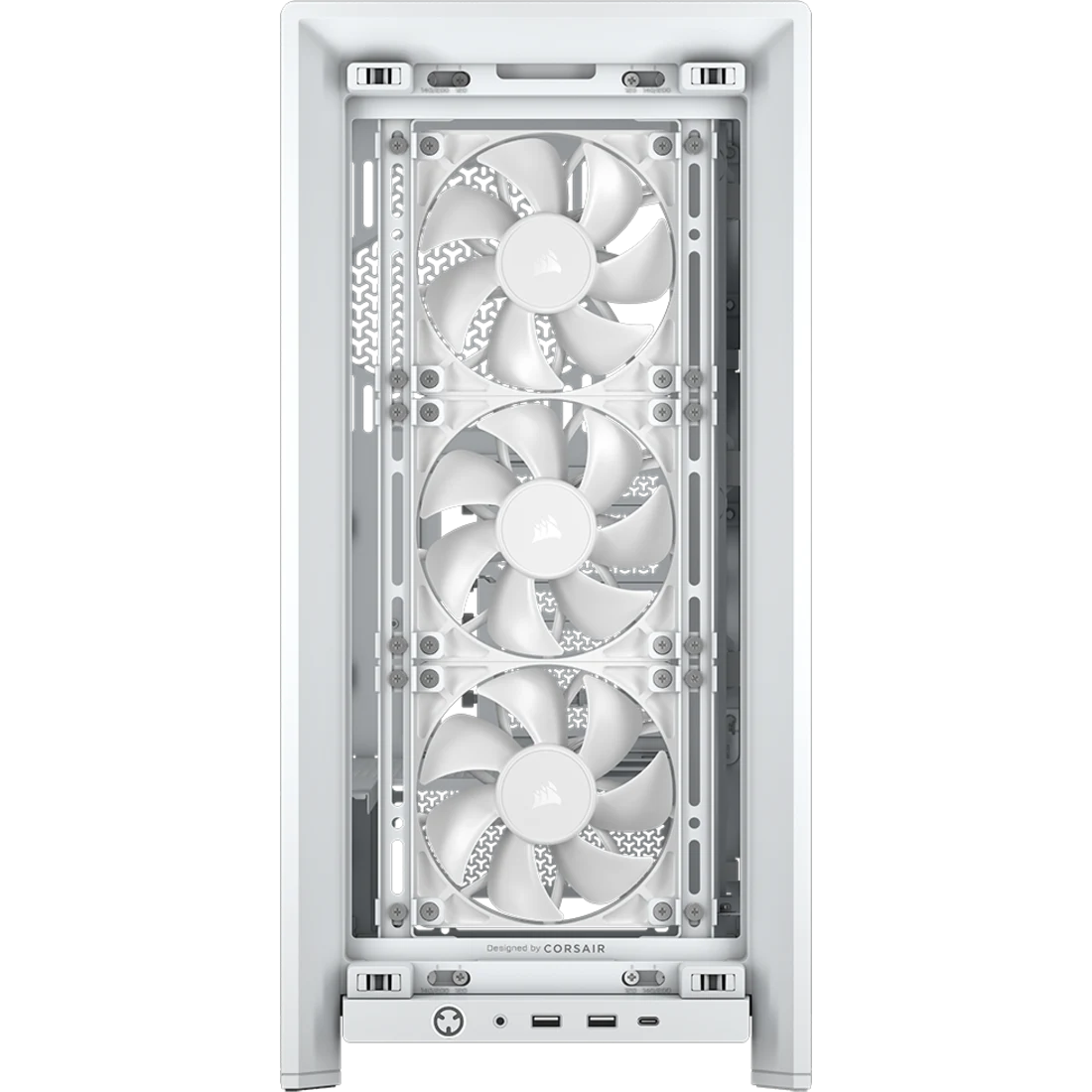

THREE RS120 FANS INCLUDED
RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.

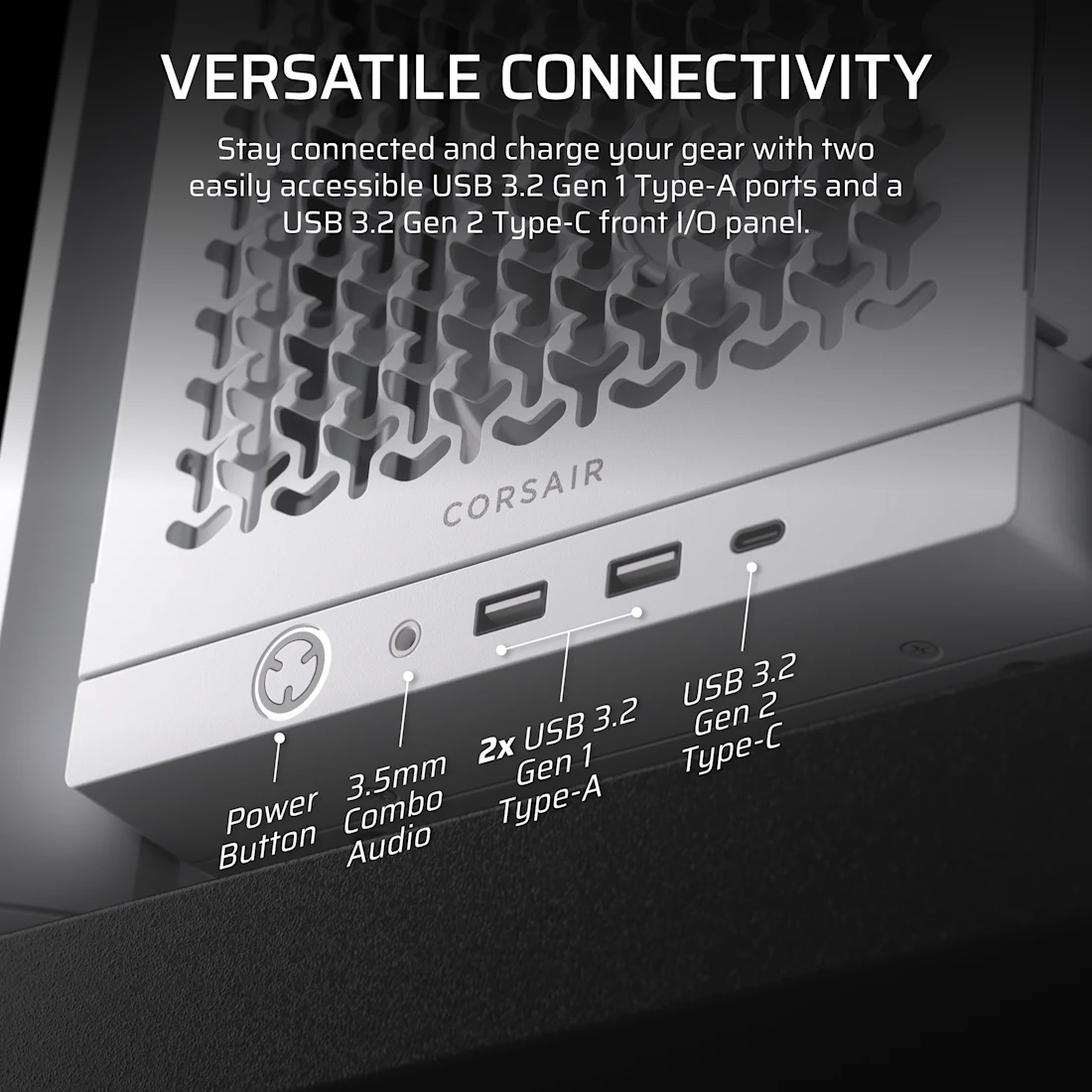

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

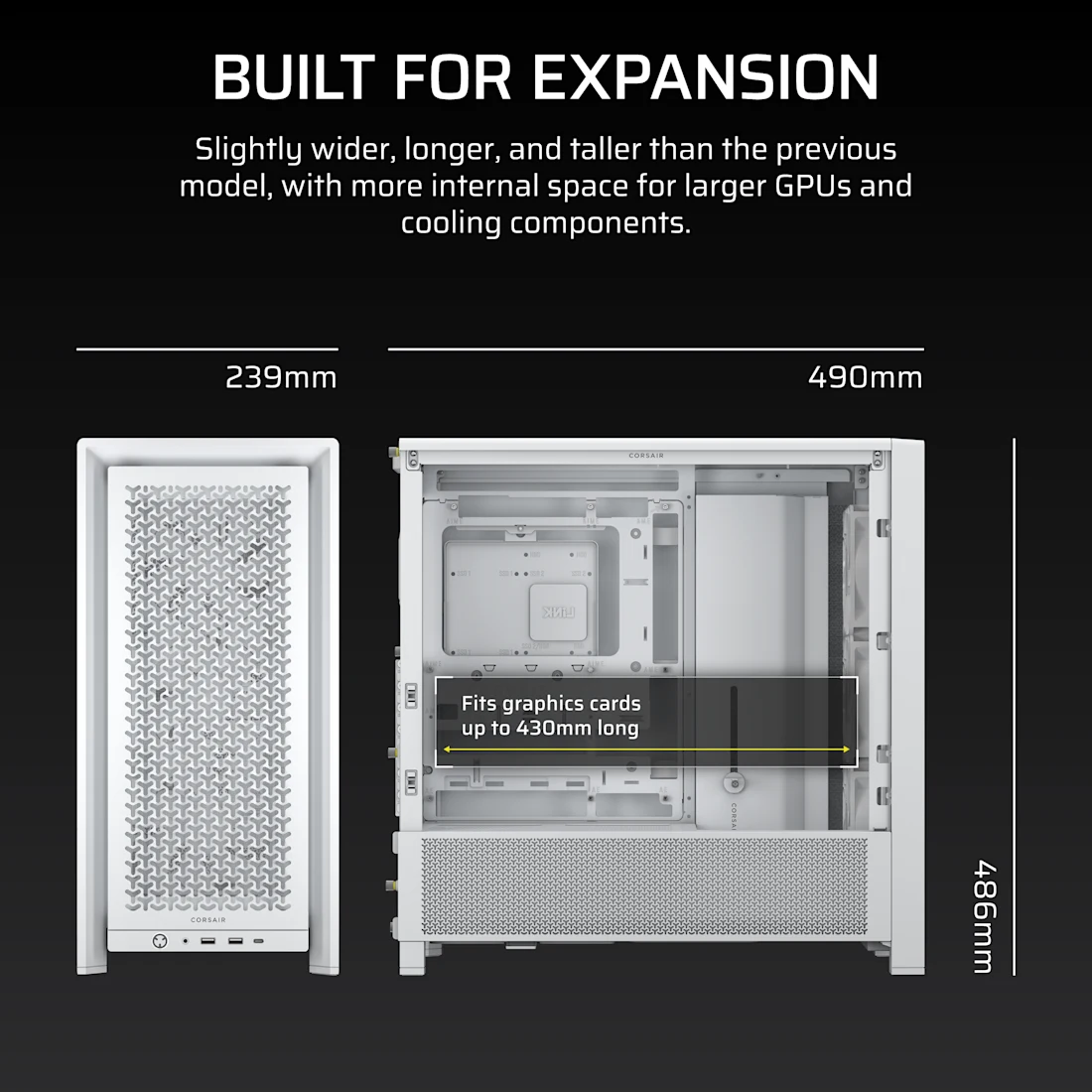

Case Height 486
Case Length 490
Case Width 239
Material Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Color WHITE
Weight 10.38
Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm
Maximum GPU Length 430mm
Maximum CPU Cooler Height 170mm
Maximum PSU Length 220mm
Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN
Case Size Mid-Tower
Case Power Supply ATX
Case Expansion Slots 7 Horizontal or 3 Vertical
Case Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case Window Tempered Glass
Case Warranty 2 Year
Internal 3.5″ Drive Bays 2
Internal 2.5″ Drive Bays 4
Radiator Support – Top 360mm, 280mm, 240mm
Radiator Support – Front 360mm, 280mm, 240mm
Radiator Support – Side 360mm, 280mm, 240mm
Radiator Support – Rear 140mm, 120mm
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm, 2x 200mm
Fan Support – Bottom 2x 120mm
Fan Support – Side 3x 120mm; 2x 140mm
Fan Support – Rear 1x 120mm, 1x 140mm
Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support Yes
Included Fans RS Series
Dust Filtration Yes
Cable Routing Space 37mm
RapidRoute Included No
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
