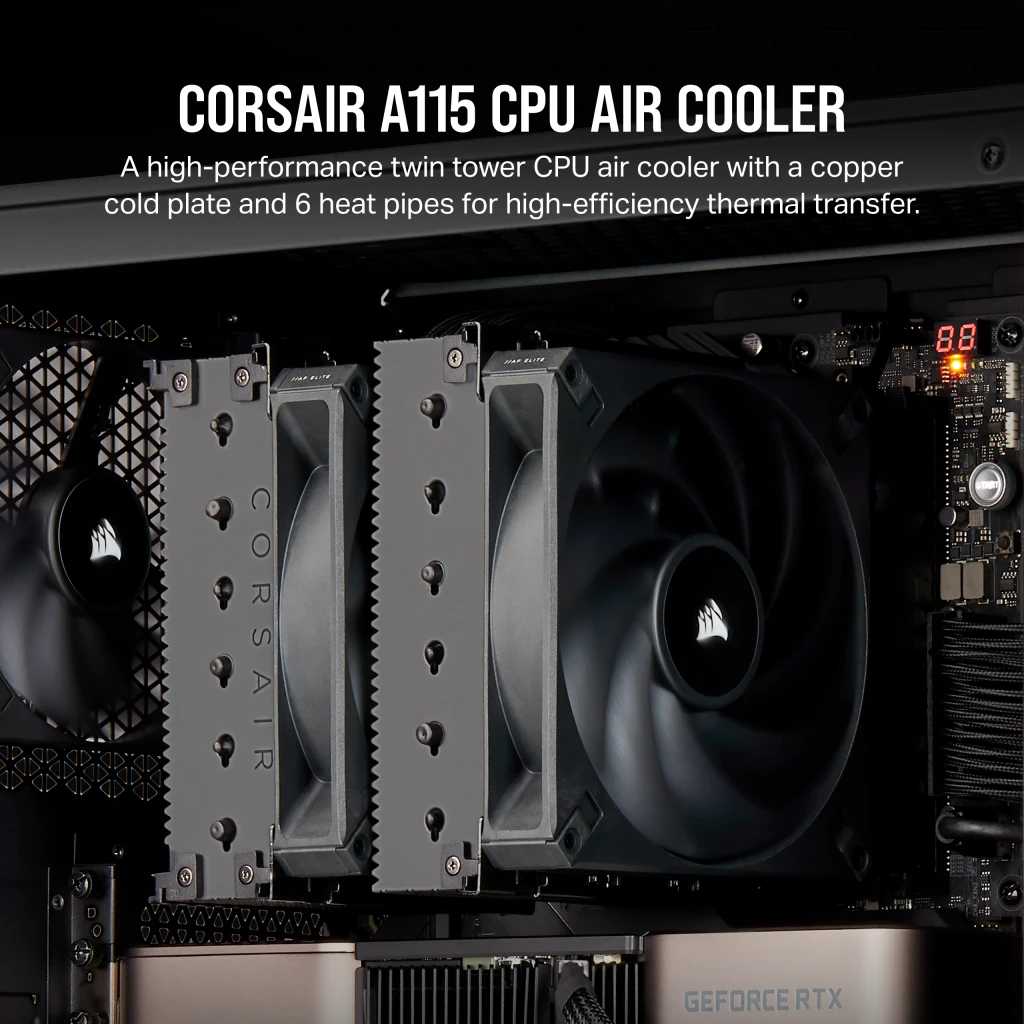

High-Performance Air Cooler with six 6mm heat pipes and a copper cold plate for high-efficiency thermal transfer, paired with a variable slide-and-lock fan mount system and concentrated high airflow fans.
- Precision engineered convex copper cold plate optimized for latest CPUs
- Fits Intel® LGA-1700 and AMD® AM5 sockets and older
- Two AF140 ELITE fans with CORSAIR AirGuide technology
- Compatible with 3000 | 4000 | 5000 | 7000 Series cases
- Dimensions (L x W x H): 153mm x 155mm x 164.8mm
- Five-year warranty

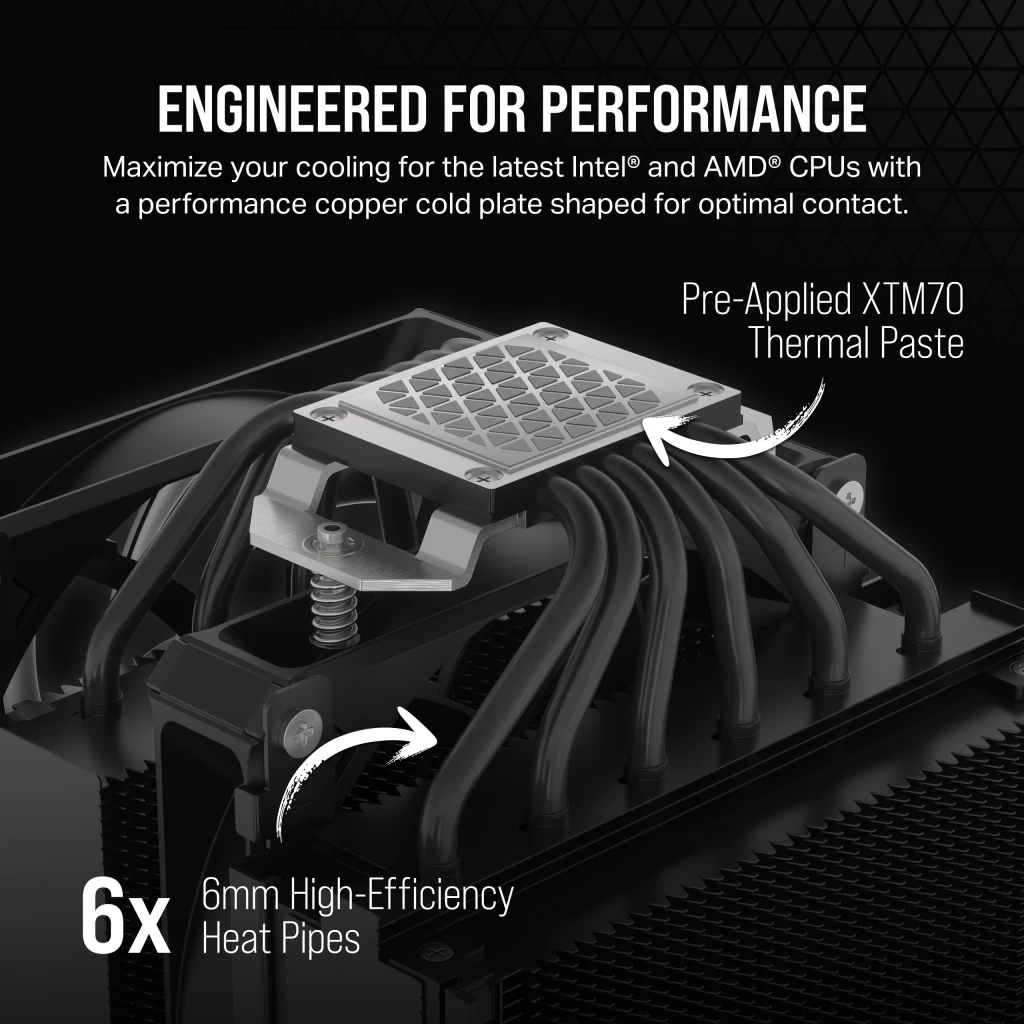

ENGINEERED FOR PERFORMANCE
[ 1 ] High-performance XTM70 thermal paste pre-applied for convenience and performance.
[ 2 ] Optimized convex copper cold plate ensures superior surface contact and thermal transfer on both Intel and AMD CPUs.
[ 3 ] Six 6mm heat pipes for high-efficiency thermal transfer from cold plate to fin stack, cooling up to 270W TDP.
SLIDE-AND-LOCK
The next evolution of CORSAIR’s innovative ratcheting Slide-and-Lock fan mount system, now slimmer than ever, lets you adjust the height of the fans tool-free to easily accommodate nearly any DRAM module on the market – or replace your memory on the fly.
HOLDFAST 2.0
CORSAIR’s acclaimed retention system gets an upgrade to ensure even more consistent thermal performance and easier installation, with the same secure and reliable fit on the latest Intel® and AMD® CPUs, including LGA 1700, 1200, 115x, and AMD Socket AM5 / AM4.
| Product Length | 155 |
|---|---|
| Product Width | 153 |
| Product Height | 164.8 |
| Heatpipe Configuration | 6x 6mm |
| Heatpipe Material | Sintered Copper |
| Lighting | NONE |
| Cooling Warranty | 5 Year |
| Number of Fans | 2 |
| Fan Dimensions | 140mm x 25mm |
| Cooling Socket Support |
Intel 1700, Intel 1200, Intel 1150, Intel 1151, Intel 1155, Intel 1156, AMD AM5, AMD AM4 |
||
|---|---|---|---|
| Fan Speed | 400 – 1600 RPM ±10% | ||
| Fan Airflow | 15.3 – 84.5 CFM | ||
| Fan Static Pressure | 0.1 – 1.73 mm-H2O | ||
| Noise Level | 5 – 33.9 dBA | ||
| Fan Control Method | PWM | ||
| PWM | Yes | ||
| Weight | 2.2 | ||
| Fan Model | AF ELITE |
