• Flexible compatibility
• ATX 3.1 support & a 90-degree 12V-2×6 cable
• 80 PLUS Gold certified
• Fully modular cabling
• 100% Japanese capacitors
• 10-year Warranty

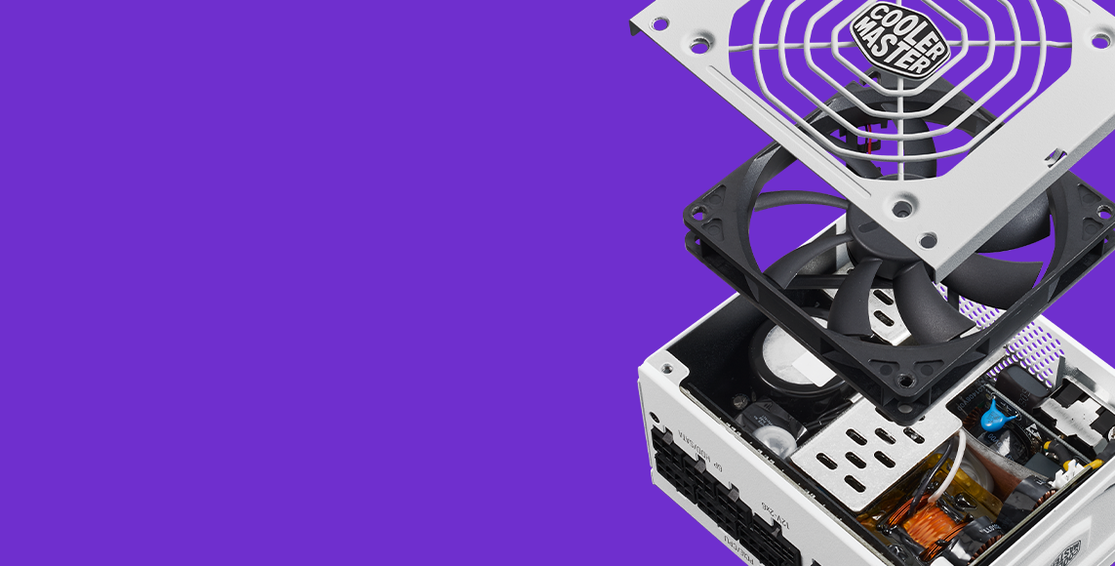

Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Flexible compatibility
With the included SFX-to-ATX bracket.

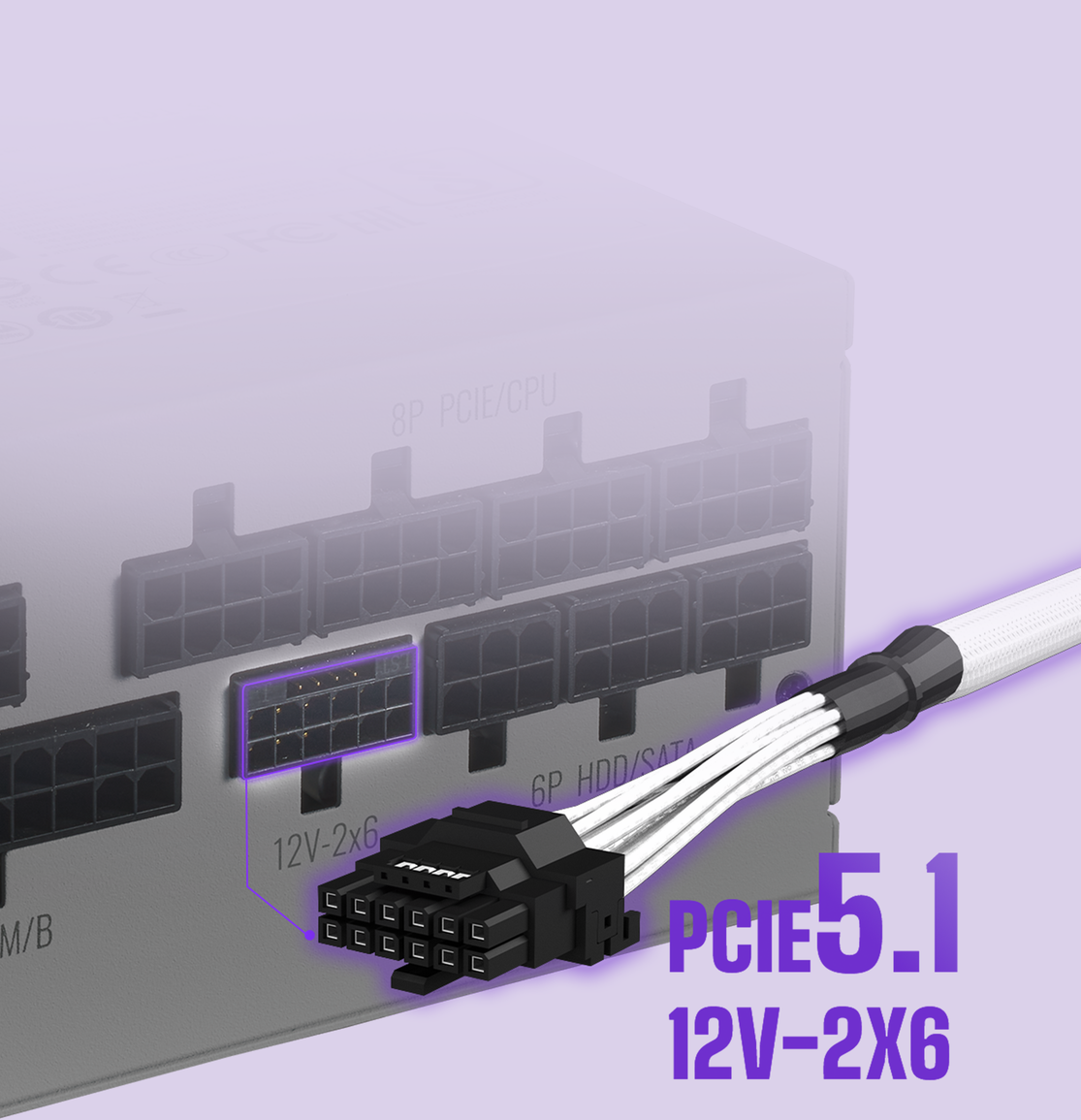

ATX 3.1 support & a durable 90-degree 12V-2×6 cable
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency
and reduced ripple noise.
Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Model MPY-8501-SFHAGV-3EW*
ATX Version ATX 3.1 & SFX 12V Ver. 3.42
PFCActive PFC
Input Voltage 100-240V
Input Current 12-6A
Input Frequency 50-60Hz
Dimensions (L x W x H) 100 x 125 x 63.5 mm
Fan Size 92mm
Fan Bearing FDB
Efficiency 90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 – 500 ms
Hold Up Time 16ms
MTBF >100,000 Hours
Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 8
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
12V-2×6 Connectors 1
Series V SFX Series
80 Plus Efficiency Gold
Modular Fully Modular
Form Factor SFX
Watts 850W
