Innovative design
Dual chamber pump
Optimum tubing length
Revamped fans
Updated CPU compatibility
Easy installation
Included Cryo-Fuze thermal paste

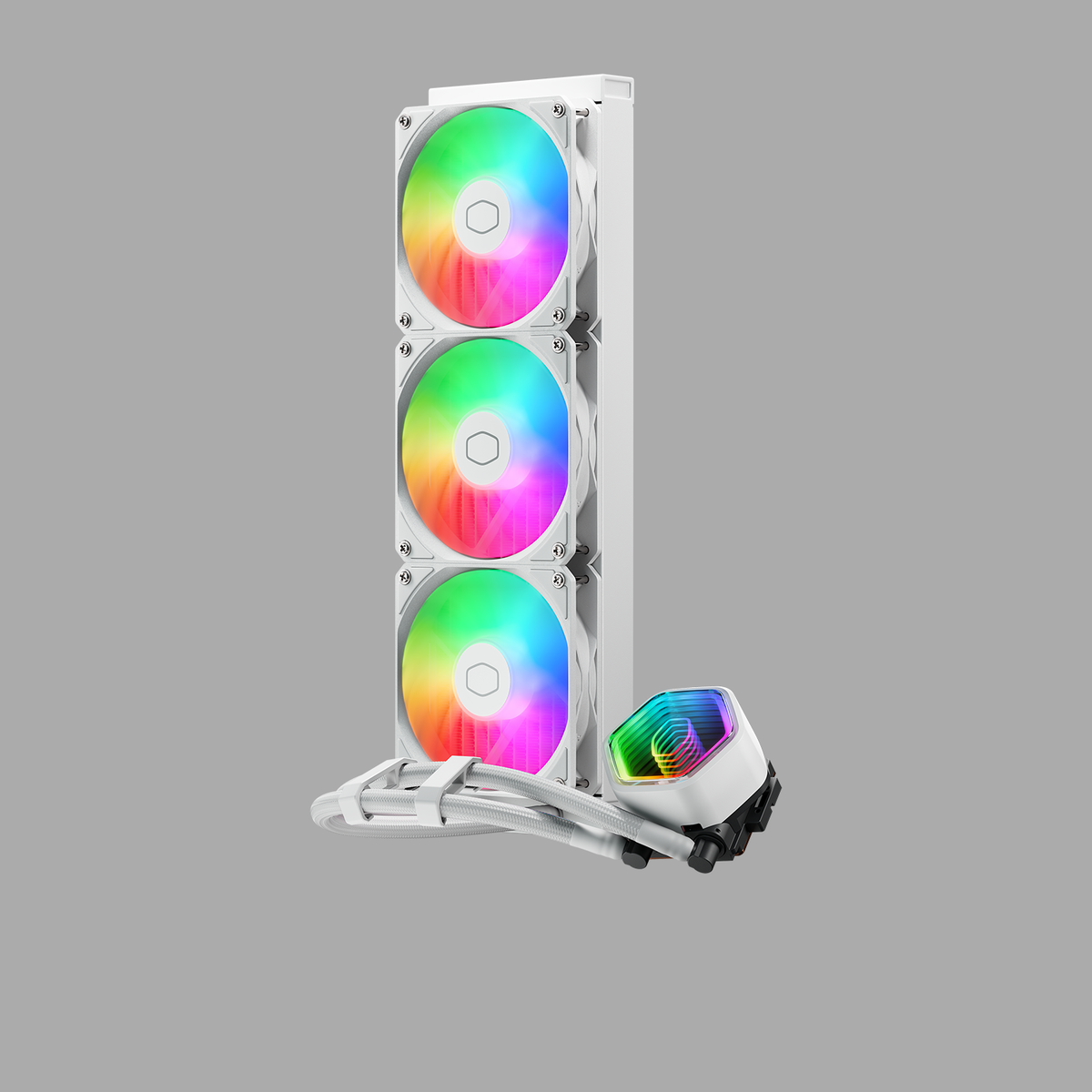

MASTERLIQUID 360 CORE II
Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid 360 Core II. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid 360 Core II
Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance
Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look
Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation
Product Number MLW-D36M-A18PA-RW
CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
CPU Socket AMD® AM5 / AM4 socket
Radiator Material Aluminum
Radiator Dimensions 394 x 119.2 x 27.2 mm / 15.5 x 4.7 x 1.1 inch
Tube Length 400 mm / 15.75 inch
Pump Dimensions 83 x 76.2 x 52.3 mm / 3.3 x 3 x 2.1 inch
Pump Profiles Addressable RGB
Pump Speed 3000 ± 300 RPM
Pump MTTF >50,000 Hours
Pump Noise Level 25 dBA (Max)
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.6 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch
Fan Profiles Addressable RGB
Fan Quantity 3 PCS
Fan Speed 650-1750 RPM ± 10%
Fan Airflow 70.5 CFM (Max)
Fan Air Pressure 2.0 mmH2O (Max)
Fan MTTF >160,000 Hours
Fan Noise Leve l30 dBA (Max)
Fan Bearing Type Sleeve Bearing
Fan Connector 7-Pin PWM + ARGB
Warranty 5 years
Cooler Type Liquid Cooler
Radiator Size 360
