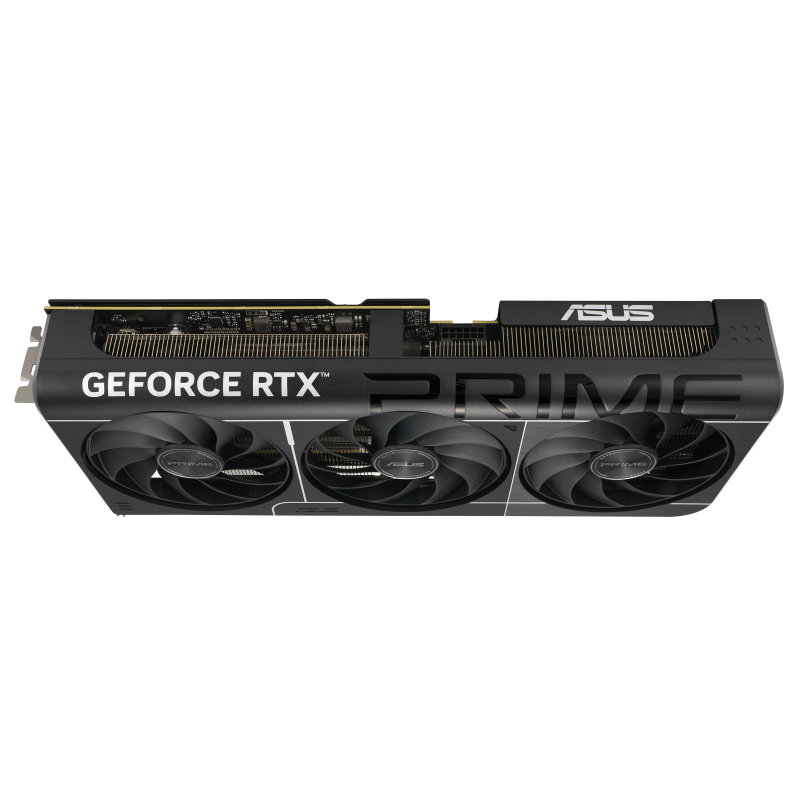

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
-
SFF-Ready 2.5 Slot Design
Compatible with small-form-factor builds
Model PRIME-RTX5070-O12G
Graphic Engine NVIDIA® GeForce RTX™ 5070
AI Performance 1005 TOPs
Bus Standard PCI Express 5.0
OpenGL OpenGL®4.6
Video Memory 12GB GDDR7
Engine Clock
OC mode: 2587MHz
Default mode: 2557MHz (Boost Clock)
OC mode: 2587MHz
Default mode: 2557MHz (Boost Clock)
CUDA Core 6144
Memory Speed 28 Gbps
Memory Interface 192-bit
Resolution Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support 4
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 2)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch
Recommended PSU 750W
Power Connectors 1 x 16-pin
Slot 2.5 Slot
SFF Ready Compatible
