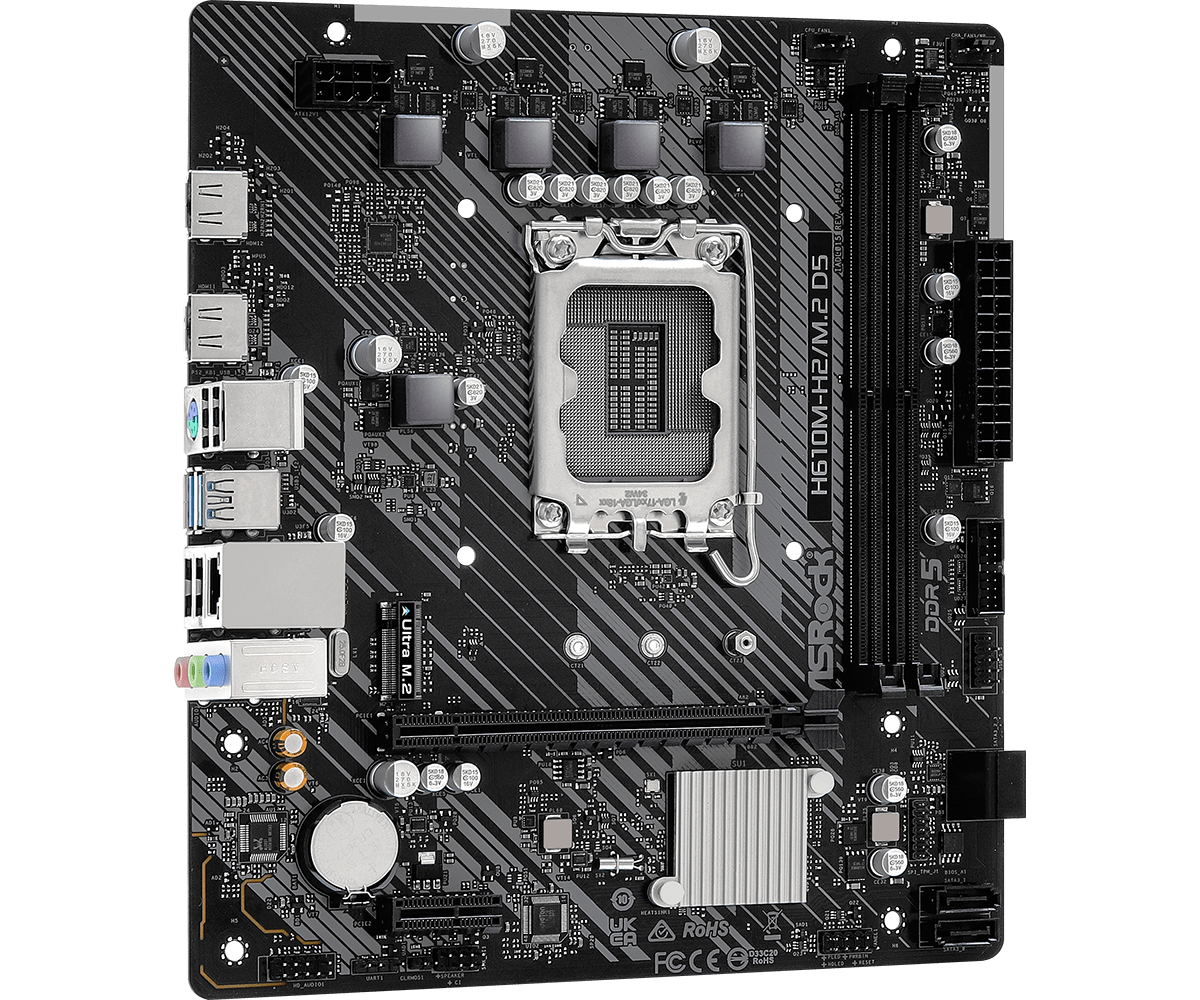

AsRock H610M-H2/M.2 D5

H610M-H2/M.2 D5

• Unique Feature
  Superb Productivity
  – Dual Channel DDR5
  Rock-Solid Durability
  – 3+1+1 Power Phase
  EZ Update
  – ASRock Auto Driver Installer
• CPU
  – Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
  – Supports Intel^® Hybrid Technology
  – Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  – Intel^® H610
• Memory
  – Dual Channel DDR5 Memory Technology
  – 2 x DDR5 DIMM Slots
  – 13^th Gen Intel^® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
  – 12^th Gen Intel^® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
  – Max. capacity of system memory: 96GB
  – Supports Intel^® Extreme Memory Profile (XMP) 3.0

  *Actual support may vary by CPU
• BIOS
  – 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  – Intel^® Xe Graphics Architecture (Gen 12)
  – 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  – Gigabit LAN 10/100/1000 Mb/s
  – Realtek 8111H
• Slots
  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  – 1 x PCIe 3.0 x1 Slot (PCIE2)*

  *Supports NVMe SSD as boot disks
• Storage
  Chipset:
  – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports NVMe SSD as boot disks
• USB
  – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  – 6 x USB 2.0 (4 Rear, 2 Front)

  *All USB ports support ESD Protection
• Connector
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports).

  *CPU_FAN1 supports the fan power up to 1A (12W).

  **CHA_FAN1/WP supports the fan power up to 2A (24W).
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O
  – 1 x PS/2 Mouse/Keyboard Port
  – 2 x HDMI Ports
  – 2 x USB 3.2 Gen1 Type-A Ports
  – 4 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – HD Audio Jacks: Line in / Front Speaker / Microphone
