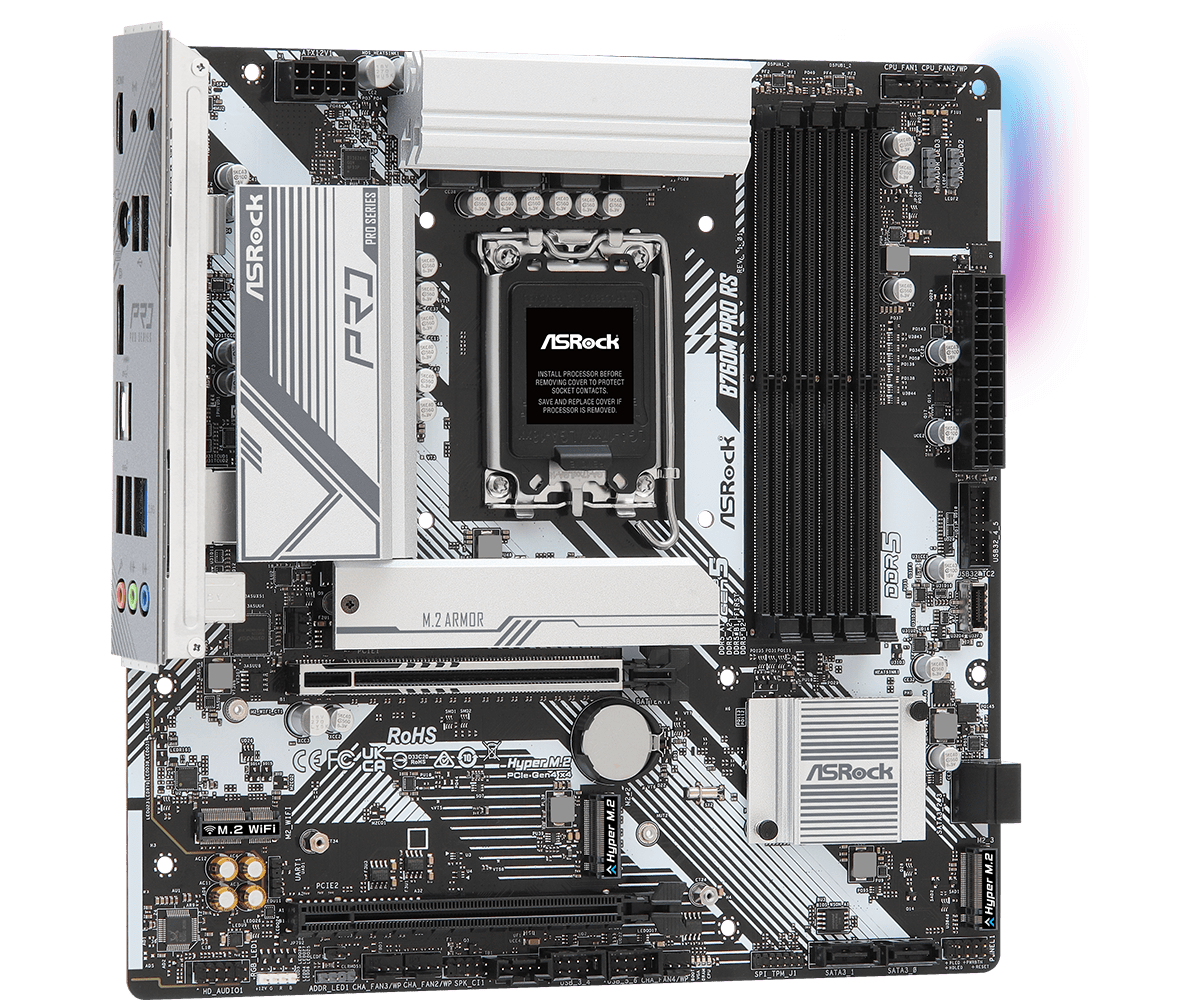

AsRock B760M Pro RS

B760M Pro RS

• Unique Feature
  Superb Productivity
  – PCIe Gen5 (Graphics)
  – Dual Channel DDR5
  Rock-Solid Durability
  – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
  – Pre-Installed I/O Shield
  Ultrafast Connectivity
  – 2.5G LAN EZ Update
  – ASRock Auto Driver Installer
  EZ Troubleshooter
  – ASRock Post Status Checker
• CPU
  – Supports 13th Gen & 12th Gen Intel^® Core™ Processors (LGA1700)
  – Supports Intel^® Hybrid Technology
  – Supports Intel^® Turbo Boost Max 3.0 Technology
  – Supports Intel^® Thermal Velocity Boost (TVB)
  – Supports Intel^® Adaptive Boost Technology (ABT)
• Chipset
  – Intel^® B760
• Memory
  – Dual Channel DDR5 Memory Technology
  – 4 x DDR5 DIMM Slots
  – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
  – Max. capacity of system memory: 192GB
  – Supports Intel^® Extreme Memory Profile (XMP) 3.0

  *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
  1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
  2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
  2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
• BIOS
  – 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  – Intel^® Xe Graphics Architecture (Gen 12)
  – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  – Nahimic Audio
• LAN
  – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  – Dragon RTL8125BG
  – Supports Dragon 2.5G LAN Software
  – Smart Auto Adjust Bandwidth Control
  – Visual User Friendly UI
  – Visual Network Usage Statistics
  – Optimized Default Setting for Game, Browser, and Streaming Modes
  – User Customized Priority Control

• Slots
  CPU:
  – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)

  – Supports AMD CrossFire™

  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports Intel^® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
  – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  – 6 x USB 2.0 (2 Rear, 4 Front)
  * All USB ports support ESD Protection
• Connector
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x RGB LED Header*
  – 3 x Addressable LED Headers**
  – 1 x CPU Fan Connector (4-pin)***
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  – 1 x Front Panel Audio Connector
  – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  – 1 x Front Panel Type C USB 3.2 Gen1 Header

  *Supports in total up to 12V/3A, 36W LED Strip

  **Support in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1 supports the fan power up to 1A (12W).

  ****CPU_FAN2/WP supports the fan power up to 2A (24W).

  *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O
  – 2 x Antenna Mounting Points
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 1 x USB 3.2 Gen1 Type-C Port
  – 3 x USB 3.2 Gen1 Type-A Ports
  – 2 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – HD Audio Jacks: Line in / Front Speaker / Microphone
