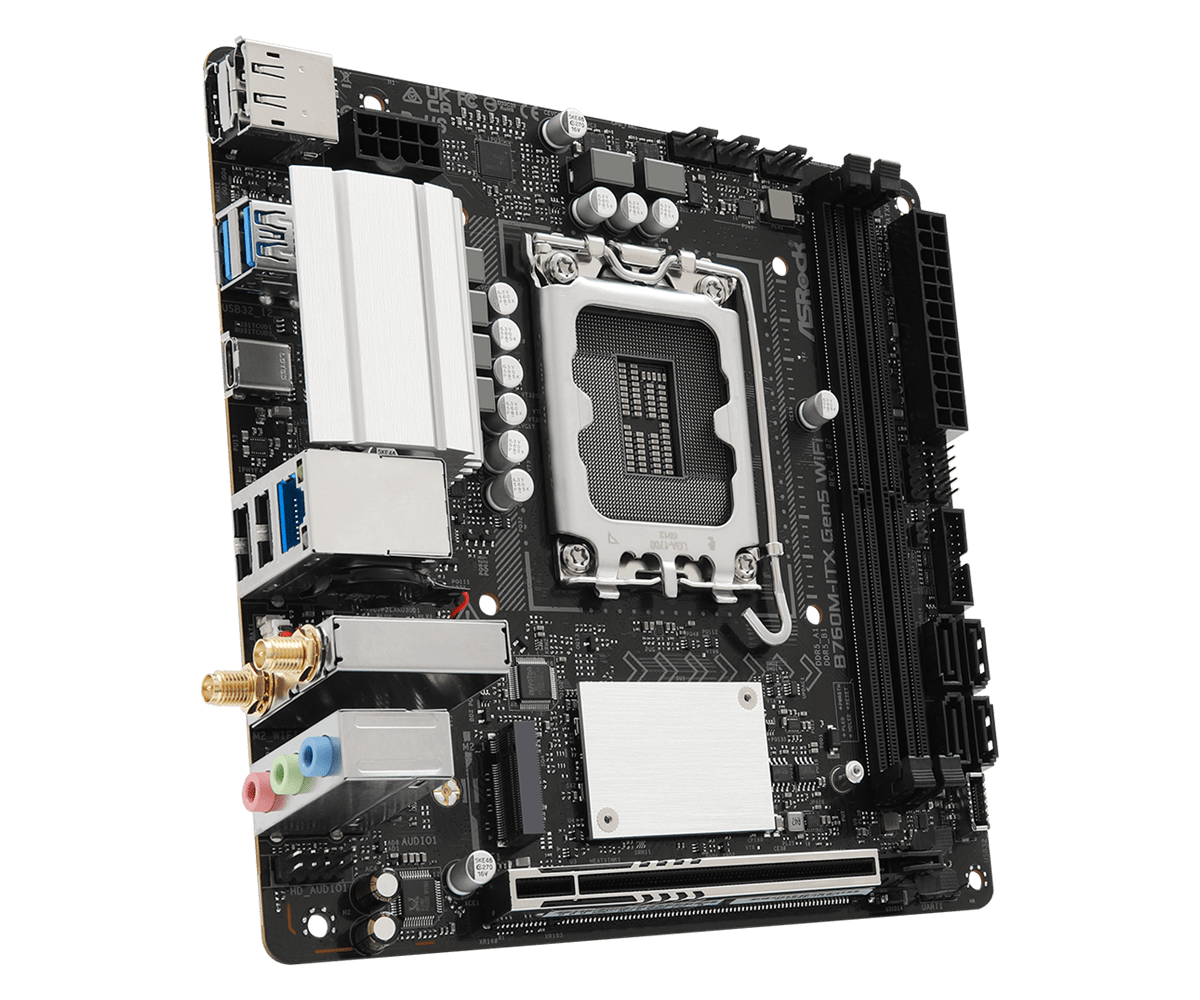

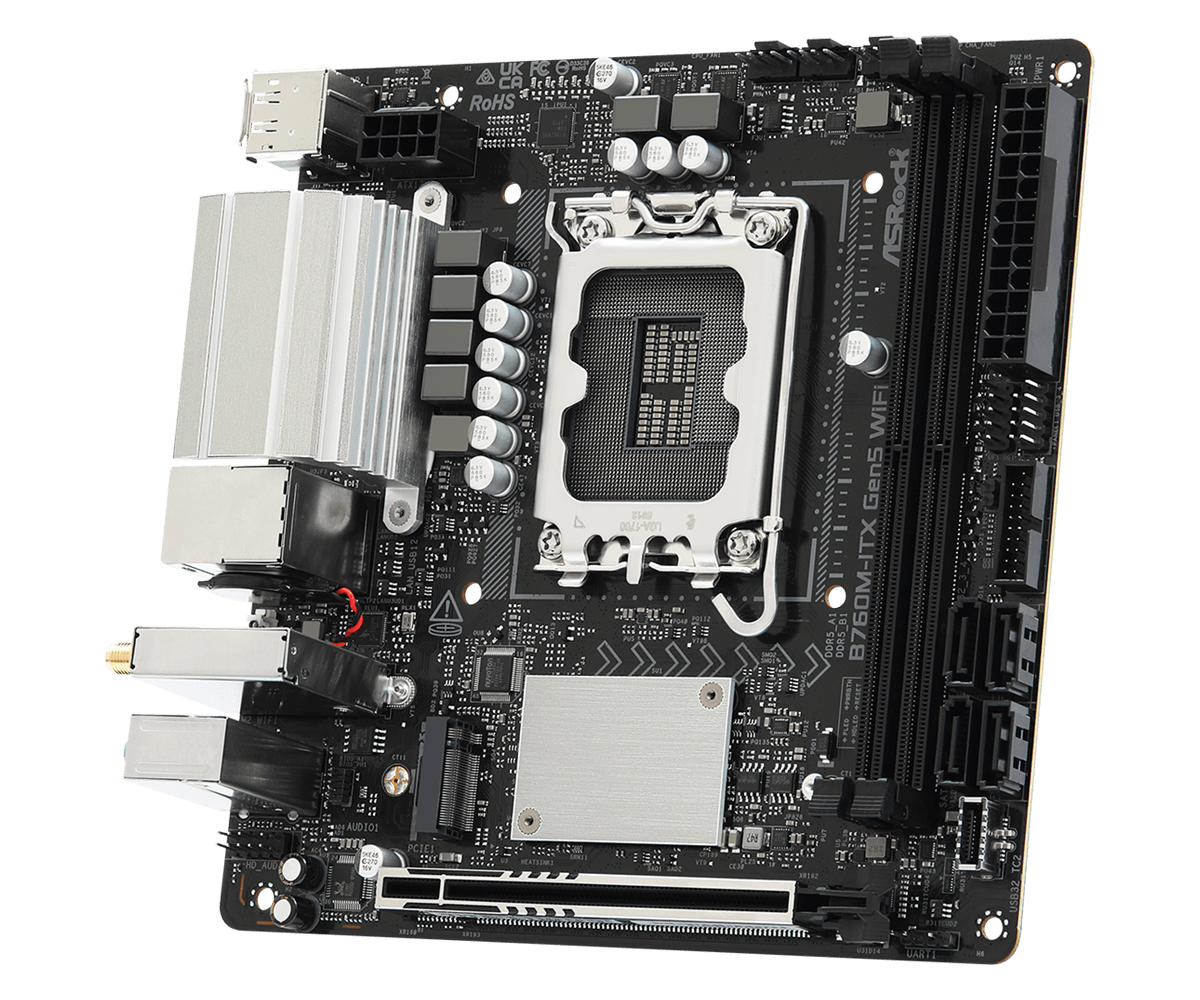

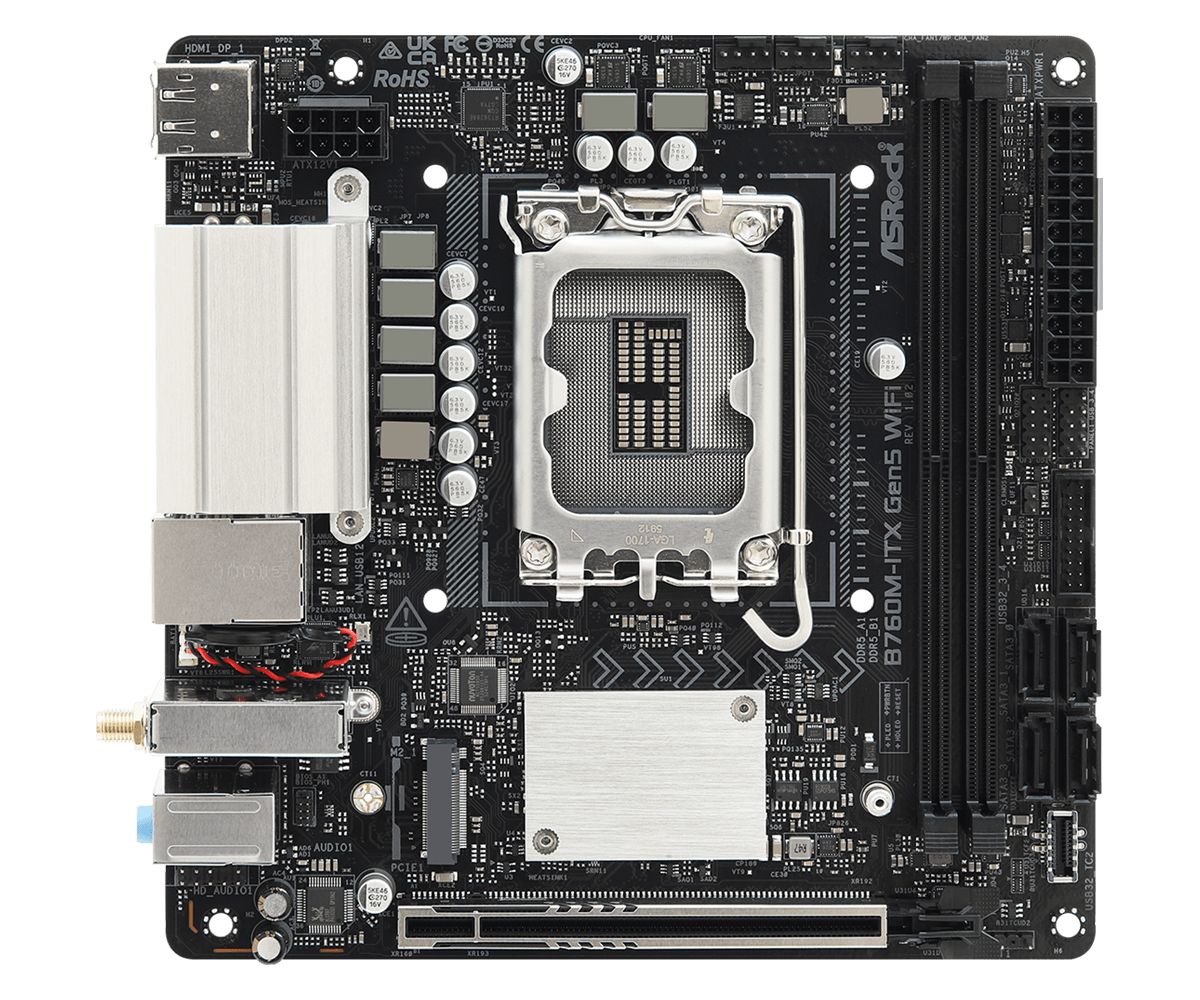

AsRock B760M-ITX Gen5 WiFi

Availability:

Out of stock
Add to Wishlist
Compare

LGA1700 B760 2*DDR5 HDMI/DP 2.5G LAN USB3.2/TYPE-C 2xM.2 WIFI.6E/BT iTX

฿4,790.00

Out of stock

B760M-ITX Gen5 WiFi
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase, Dr.MOS for VCore+GT
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 7800+ (OC)
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 2 Hyper M.2 (PCIe Gen4x4)
    4 SATA3
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
    4 USB 3.2 Gen1 (2 Rear, 2 Front)
    4 USB 2.0 (2 Rear, 2 Front)
  • Realtek 2.5G LAN
  • 802.11axe WiFi 6E + Bluetooth





    • Unique Feature
      Superb Productivity
      – PCIe Gen5 (Graphics)
      – Dual Channel DDR5
      Rock-Solid Durability
      – 5+1+1 Power Phase, Dr.MOS for VCore+GT
      Ultrafast Gaming
      – 2.5G LAN, 802.11axe Wi-Fi 6E Module
      EZ Update
      – ASRock Auto Driver Installer
    • CPU
      – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
      – Supports Intel® Hybrid Technology
      – Supports Intel® Turbo Boost Max 3.0 Technology
      – Supports Intel® Thermal Velocity Boost (TVB)
      – Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      – Intel® B760
    • Memory
      – Dual Channel DDR5 Memory Technology
      – 2 x DDR5 DIMM Slots
      – Supports DDR5 non-ECC, un-buffered memory up to 7800+(OC)*
      – Max. capacity of system memory: 128GB*
      – Supports Intel® Extreme Memory Profile (XMP) 3.0

      *1DPC 1R Up to 7800+ MHz (OC), 5600 MHz Natively.
      1DPC 2R Up to 6400+ MHz (OC), 5200 MHz Natively.
    • BIOS
      – 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      – Intel® Xe Graphics Architecture (Gen 12)
      – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
      – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      – Nahimic Audio
    • LAN
      – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      – Dragon RTL8125BG
      – Supports Dragon 2.5G LAN Software
      – Smart Auto Adjust Bandwidth Control
      – Visual User Friendly UI
      – Visual Network Usage Statistics
      – Optimized Default Setting for Game, Browser, and Streaming Modes
      – User Customized Priority Control



  • Wireless LAN
    – 802.11axe Wi-Fi 6E Module
    – Supports IEEE 802.11a/b/g/n/ac/ax/axe
    – Supports Dual-Band 2×2 with extended 6GHz band support*
    – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    – Supports Bluetooth 5.3
    – Supports MU-MIMO

    *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    Chipset:
    – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
    – 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
    – 4 x USB 2.0 (2 Rear, 2 Front)

    *All USB ports support ESD Protection
  • Connector
    – 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
    – 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*
    – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen1 Header

    *CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).
    **CHA_FAN1/WP support the fan power up to 2A (24W).
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen1 Type-C Port
    – 2 x USB 3.2 Gen1 Ports
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock Dragon 2.5G LAN Software*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash
    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x I/O Shield
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    – 2 x Screws for M.2 Sockets
  • Form Factor
    – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  • OS
    – Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
