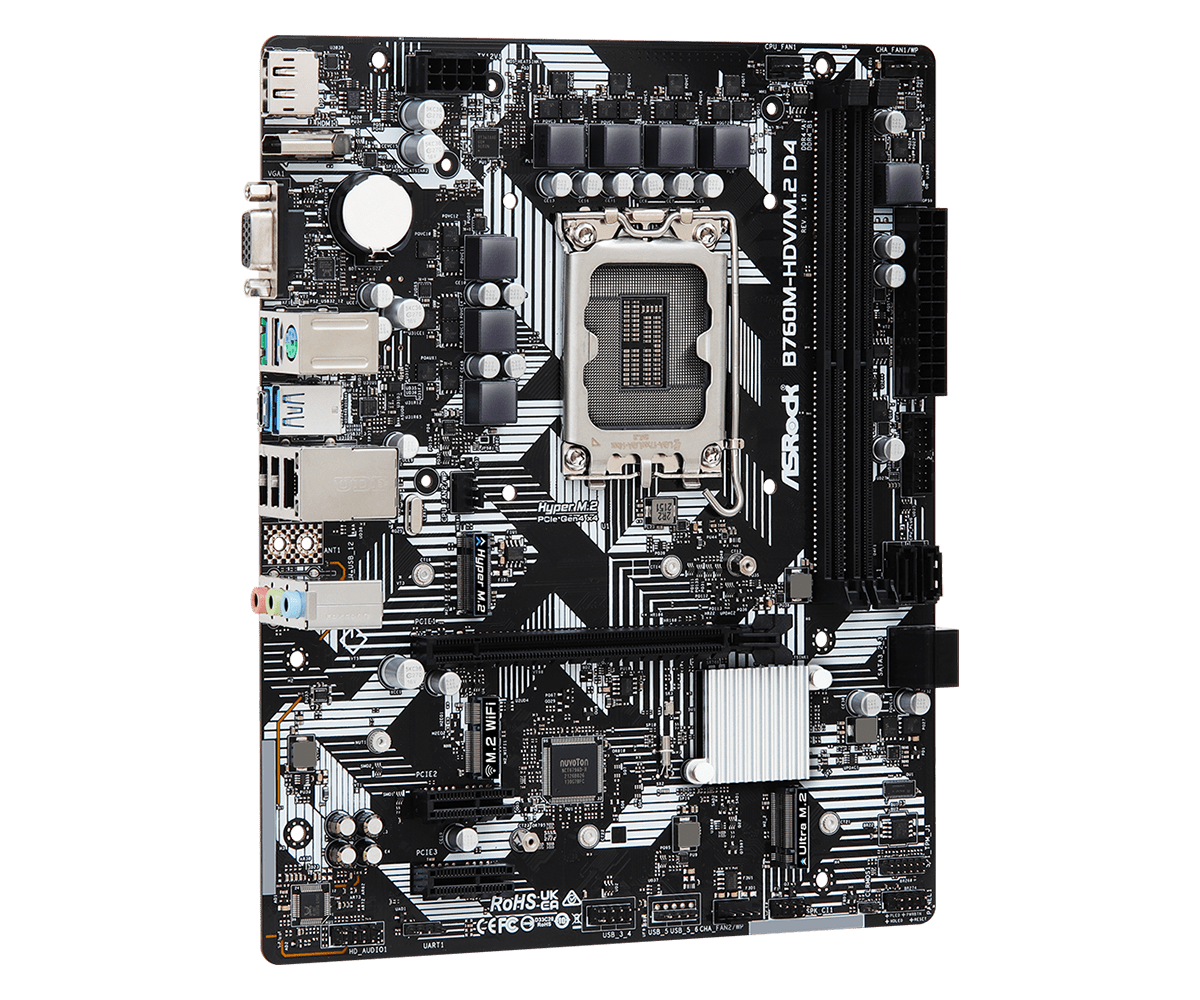

AsRock B760M-HDV/M.2 D4

Availability:

Out of stock


LGA1700 B760 2*DDR4 HDMI/DP USB3.2/TYPE-C 2xM.2 4SATA mATX

฿2,990.00

Out of stock



  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase
  • Supports DDR4 5333MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
    1 Ultra M.2 (PCIe Gen3x4 & SATA)
  • 1 USB 3.2 Gen1 Type-C (Rear),
    5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
    5 USB 2.0 (2 Rear, 3 Front)
  • Realtek 1G LAN
  • Supports ASRock Auto Driver Installer





  • Unique Feature
    Rock-Solid Durability
    – 5+1+1 Power Phase
    EZ Update
    – ASRock Auto Driver Installer
  • CPU
    – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
    – Supports Intel® Thermal Velocity Boost (TVB)
    – Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset
    – Intel® B760
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 2 x DDR4 DIMM Slots
    – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
    – Supports ECC UDIMM memory modules (operate in non-ECC mode)
    – Max. capacity of system memory: 64GB*
    – Supports Intel® Extreme Memory Profile (XMP) 2.0

    *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
    1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
  • BIOS
    – 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    – Intel® Xe Graphics Architecture (Gen 12)
    – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    – 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – Realtek 8111H
  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    – 4 x SATA3 6.0 Gb/s Connectors**

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks

    **If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    – 1 x USB 3.2 Gen1 Type-C (Rear)
    – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    – 5 x USB 2.0 (2 Rear, 3 Front)
    * All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    *CPU_FAN1 supports the fan power up to 1A (12W).

    **CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***CHA_FAN1~2/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O
    – 2 x Antenna Mounting Points
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x D-Sub Port
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen1 Type-C Port
    – 3 x USB 3.2 Gen1 Type-A Ports
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – HD Audio Jacks: Line in / Front Speaker / Microphone
