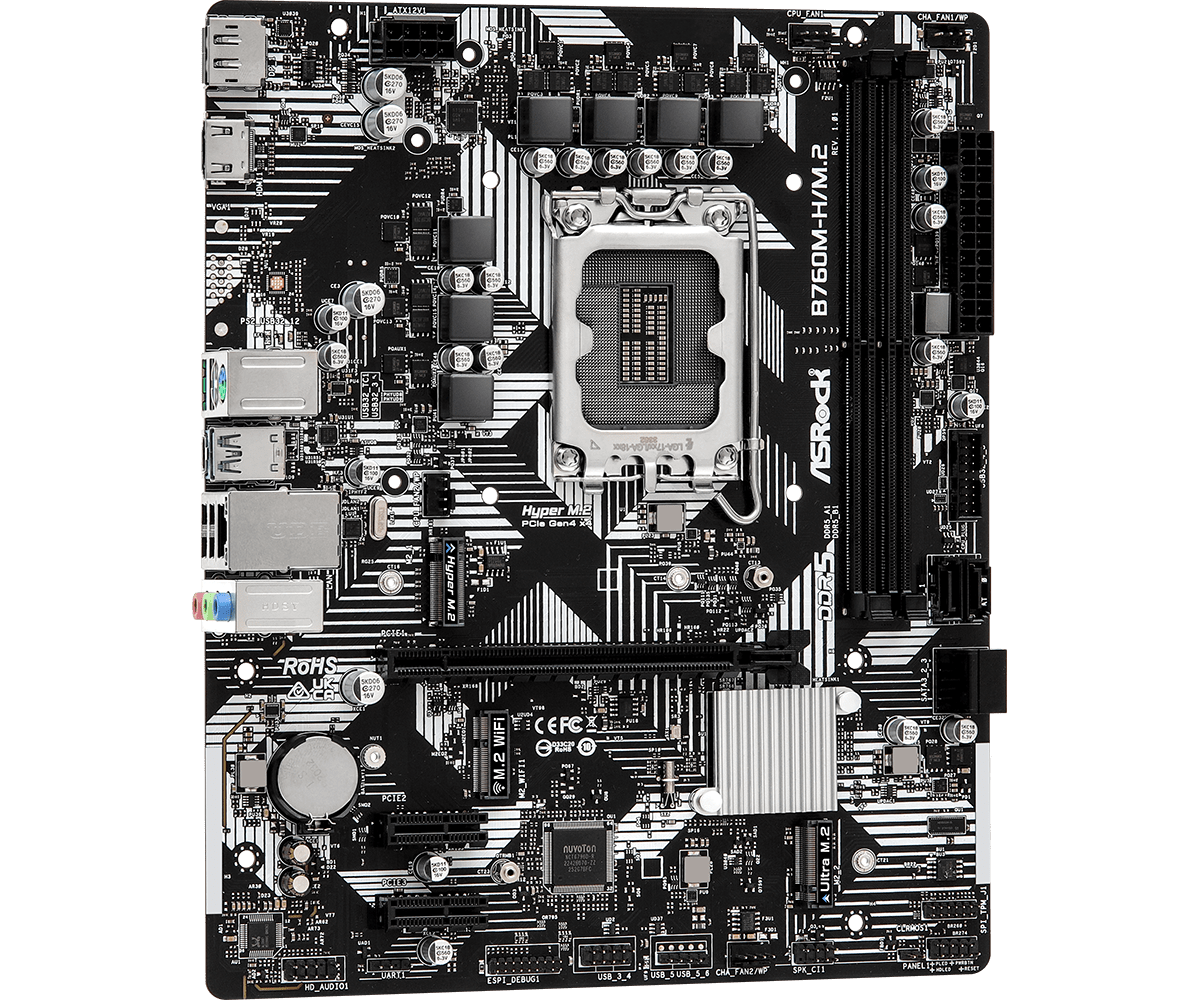

AsRock B760M-H/M.2

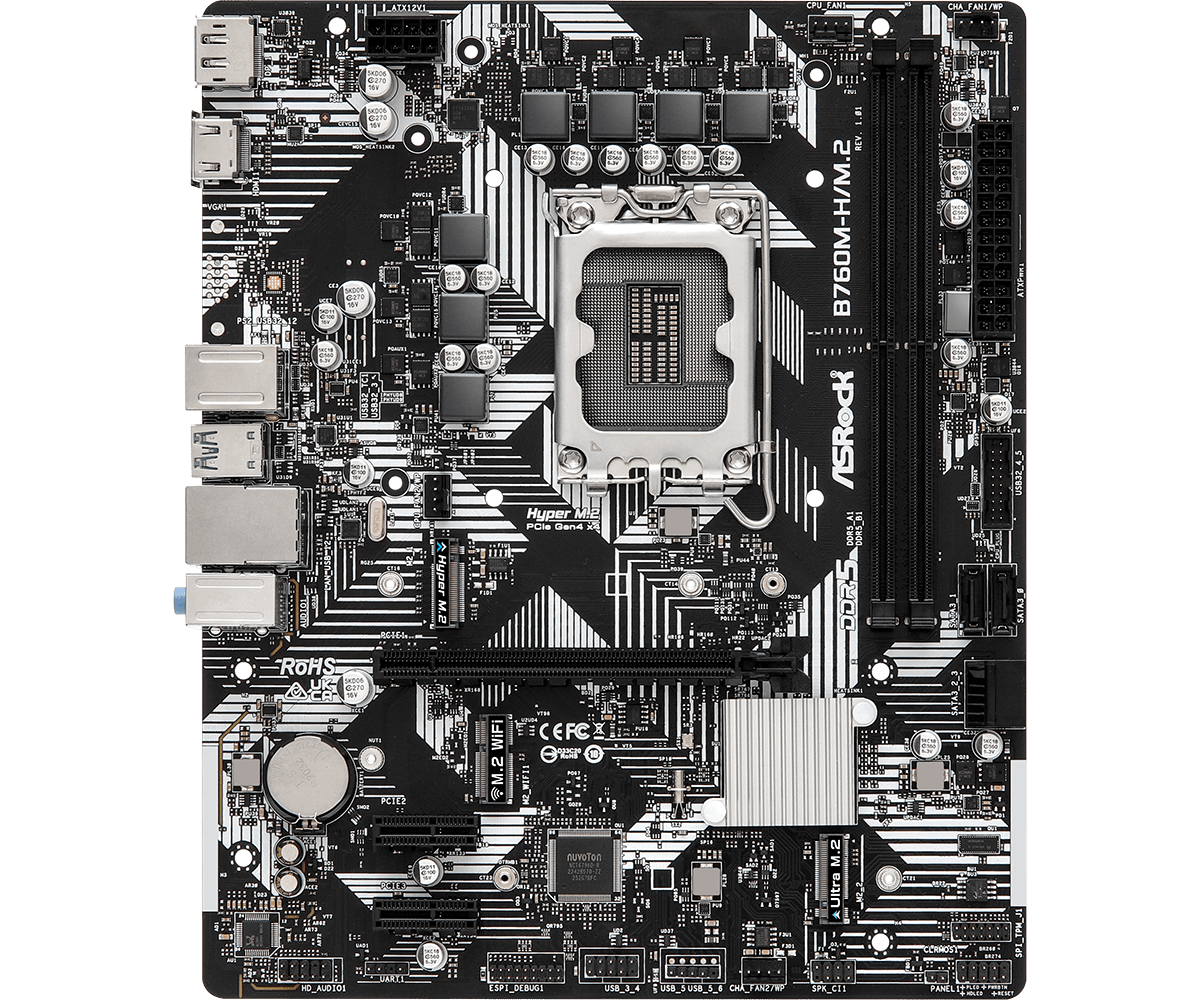

B760M-H/M.2

• Unique Feature
  Rock-Solid Durability
  – 5+1+1 Power Phase
  – ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology
  EZ Update
  – ASRock Auto Driver Installer
• CPU
  – Supports 13th Gen & 12th Gen Intel^® Core™ Processors (LGA1700)
  – Supports Intel^® Hybrid Technology
  – Supports Intel^® Turbo Boost Max 3.0 Technology
  – Supports Intel^® Thermal Velocity Boost (TVB)
  – Supports Intel^® Adaptive Boost Technology (ABT)
• Chipset
  – Intel^® B760
• Memory
  – Dual Channel DDR5 Memory Technology
  – 2 x DDR5 DIMM Slots
  – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
  – Max. capacity of system memory: 96GB
  – Supports Intel^® Extreme Memory Profile (XMP) 3.0

  *1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.
  1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.
• BIOS
  – 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  – Intel^® Xe Graphics Architecture (Gen 12)
  – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  – Gigabit LAN 10/100/1000 Mb/s
  – Realtek 8111H
• Slots
  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports Intel^® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
  If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
• RAID
  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
  – 1 x USB 3.2 Gen1 Type-C (Rear)
  – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  – 5 x USB 2.0 (2 Rear, 3 Front)

  *All USB ports support ESD Protection
• Connector
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

  *CPU_FAN1 supports the fan power up to 1A (12W).

  **CPU_FAN2/WP supports the fan power up to 2A (24W).

  ***CHA_FAN1~2/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

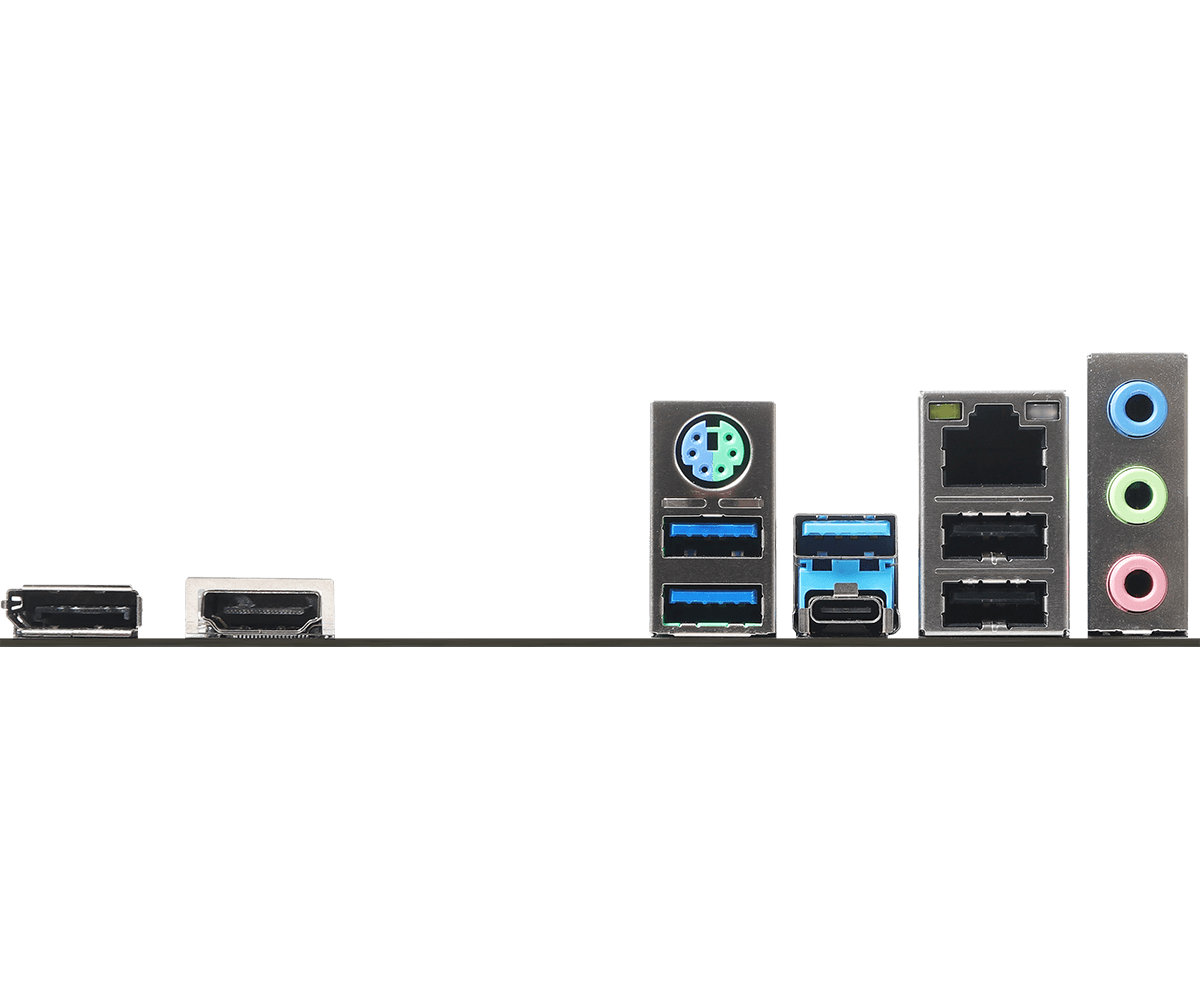

• Rear Panel I/O
  – 2 x Antenna Mounting Points
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 1 x USB 3.2 Gen1 Type-C Port
  – 3 x USB 3.2 Gen1 Type-A Ports
  – 2 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – HD Audio Jacks: Line in / Front Speaker / Microphone
