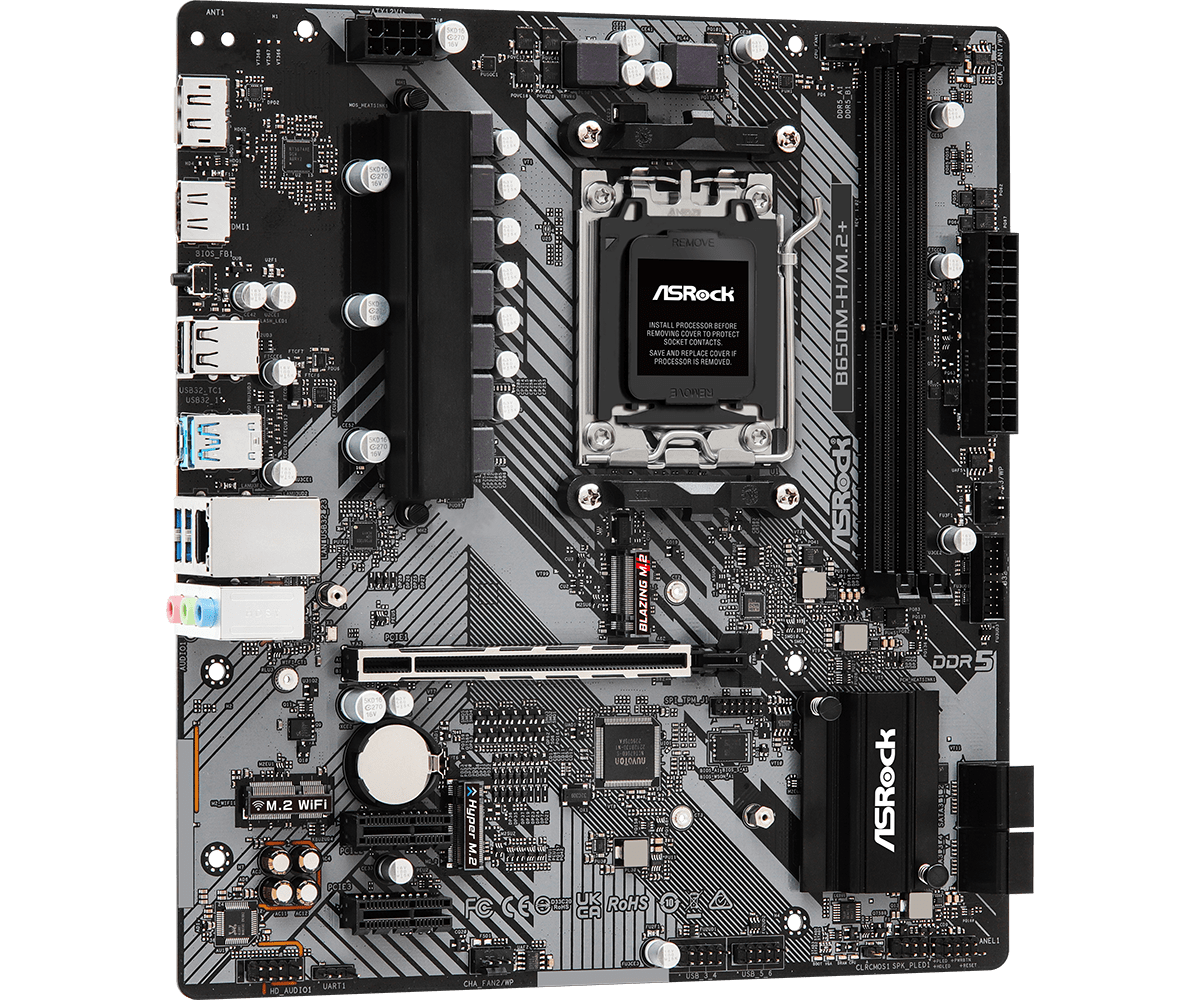

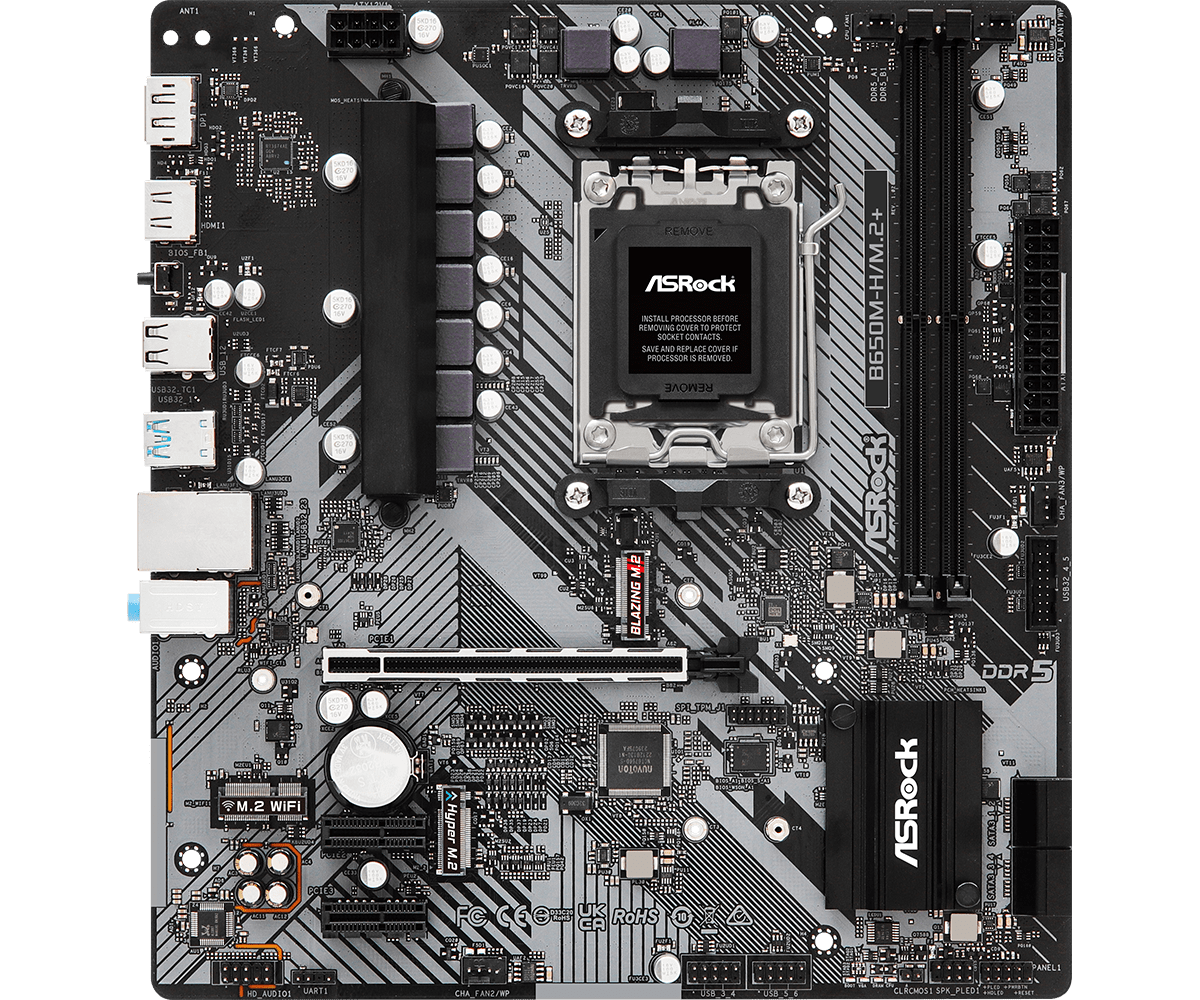

AsRock B650M-H/M.2+

Availability:

Out of stock
Add to Wishlist
Compare

AM5 B650 2*DDR5 HDMI/DP USB3.2/TYPE-C 2xM.2 mATX

฿3,590.00

Out of stock



  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 6+1+1 Power Phase, Dr.MOS
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 6400+ (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics *
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback







  • Unique Feature
    Superb Productivity
    – PCIe Gen5 (M.2)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 6+1+1 Power Phase, 50A Dr.MOS for VCore
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU
    – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

    *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
  • Chipset
    – AMD B650
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 2 x DDR5 DIMM Slots
    – Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
    – Max. capacity of system memory: 128GB
    – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Nahimic Audio
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111H
  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 4 x SATA3 6.0 Gb/s Connectors

    * Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    – 1 x USB 3.2 Gen1 Type-C (Rear)
    – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    – 6 x USB 2.0 (2 Rear, 4 Front)

    * All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    * CPU_FAN1 supports the fan power up to 1A (12W).
    ** CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    – 2 x Antenna Mounting Points
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen1 Type-C Port
    – 3 x USB 3.2 Gen1 Type-A Ports
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone





SKU: AsRock B650M-H/M.2+ Categories: ,
