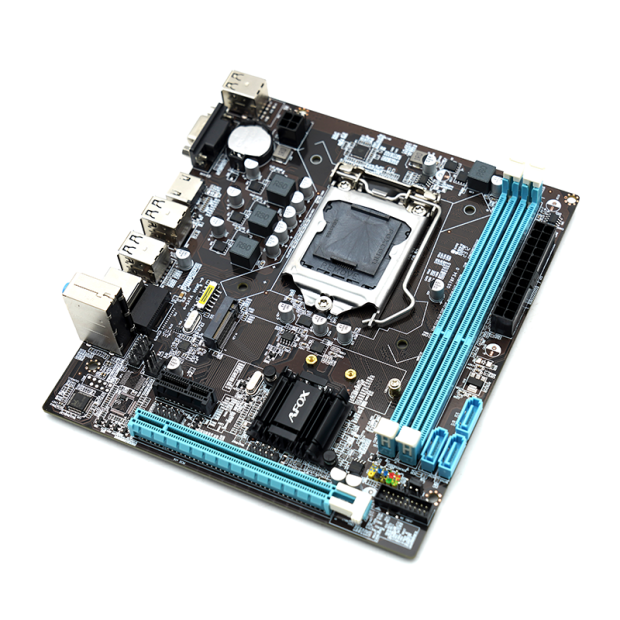

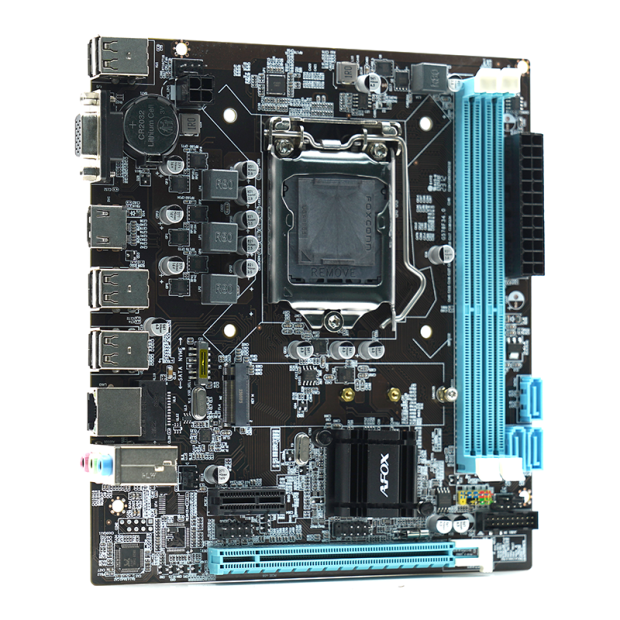

AFOX IH61-MA2-V6
Model Name: IH61-MA2-V6
Chipset: Intel® H61
Socket:INTEL® Socket 1155
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts)
Dual channel DDR3, two memory slots
1066 / 1333 / 1600MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Excellent in multitasking，a wise choice for gaming players
Stable power supply，smooth game performance
| Platform | INTEL® Socket 1155 |
| Model Name | IH61-MA2-V6 |
| Chipset | Intel® H61 |
| CPU Supports | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts) |
| FSB | 1066 / 1333 / 1600MHz |
| Memory | Dual Channel DDR3 1066 / 1333 / 1600MHz |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 16GB) |
| Onboard Graphics | Integrated Graphics Processor |
| PCI/PCI-E Slots | 1 x PCI Express x16 slot 1 x PCI Express x1 slot |
| SATA | 3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
| IDE | N/A |
| Audio | Supports 6-channel audio-out |
| LAN | 1000Mbps Ethernet on board |
| Back Panel I/Os | 1 x HDMI Port 1 x D-Sub (VGA) Port 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
| ON-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (17*19cm) |
| Mounting | 4 mounting holes |
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
