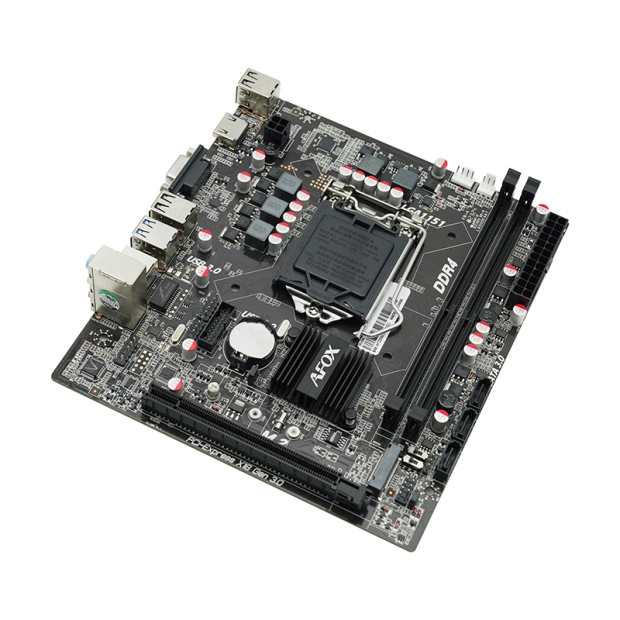

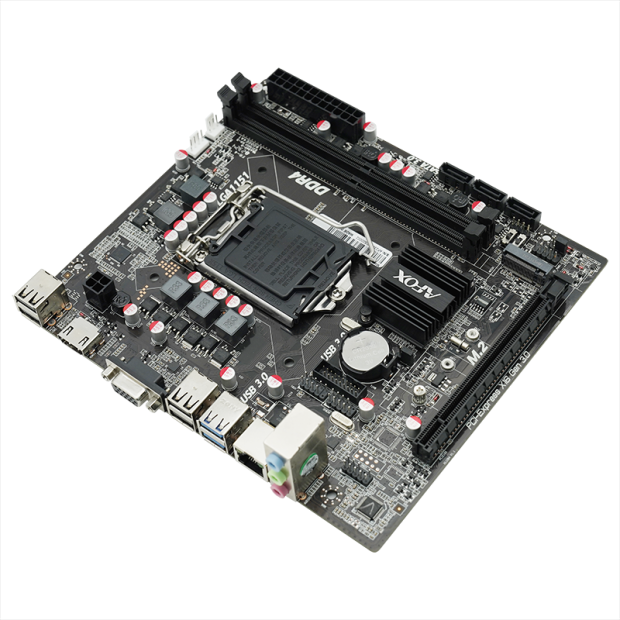

AFOX IH110D4-MA5-V2
Model Name: IH110D4-MA5-V2
Chipset: Intel® H110
Socket:INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4 slots
2133MHz Memory up to 32GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Excellent in multitasking，a wise choice for gaming players
Excellent compatibility
Stable power supply，smooth game performance
| Platform | INTEL Socket 1151 |
| Model Name | IH110D4-MA5-V2 |
| Chipset | Intel® H110 |
| CPU Supports | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts) |
| FSB | 2133MHz |
| Memory | Dual Channel DDR4 2133MHz |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 32GB) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| PCI/PCI-E Slots | 1 x PCI Express x16 3.0 slot |
| SATA | 3 x SATA3 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
| IDE | N/A |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| LAN | Realtek RTL8111 1000Mbps Ethernet on board |
| Back Panel I/Os | 1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
| ON-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG 1 x Com |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (17*19cm) |
| Mounting | 4 mounting holes |
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
