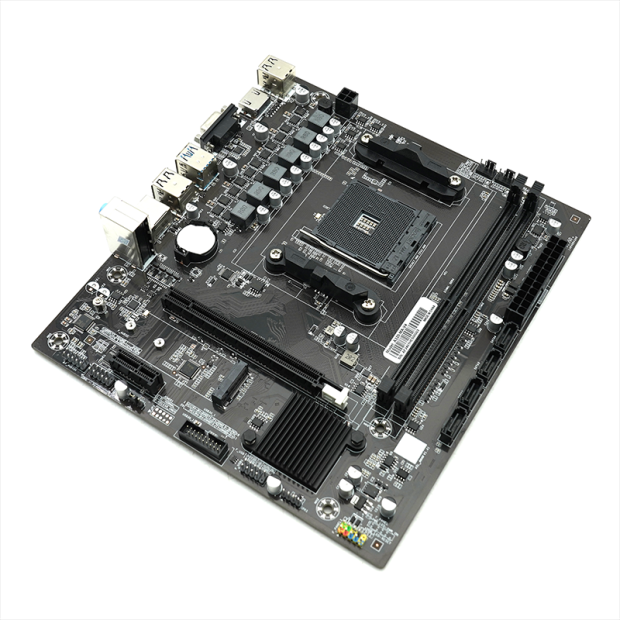

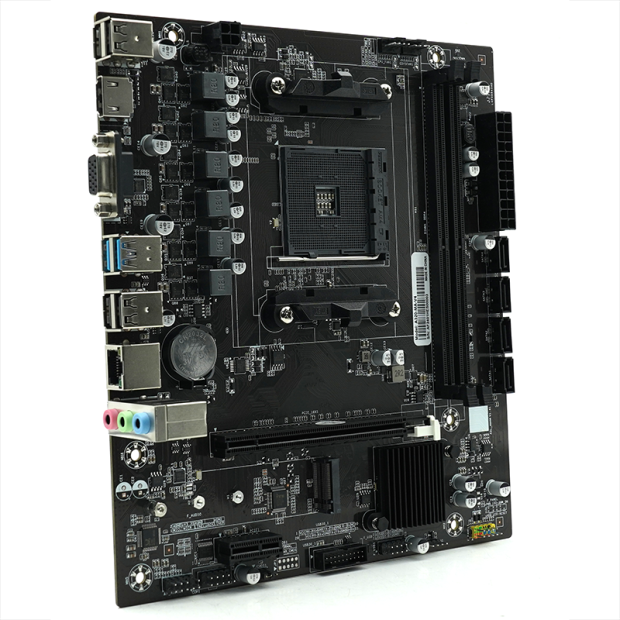

AFOX A320-MA-V4
Model Name: A320-MA-V4
Chipset: AMD® A300 Series
Socket: AMD Socket AM4
Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series and Ryzen 3000 Series processors
Dual channel DDR4, two memory slots
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 32GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Release long-term performance, with both stability and longevity
| Platform | AMD Socket AM4 |
| Model Name | A320-MA-V4 |
| Chipset | AMD® A300 Series |
| CPU Supports | Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series and Ryzen 3000 Series processors |
| FSB | 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz |
| Memory | Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz 1.2V |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 32GB) |
| Onboard Graphics | Integrated AMD Radeon™ Vega series / R Series graphics |
| PCI/PCI-E Slots | 1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot |
| SATA | 4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
| IDE | N/A |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| LAN | Realtek RTL8111 1000Mbps Ethernet on board |
| Back Panel I/Os | 1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
| ON-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader and 1 x Front Panel COM pinheader |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (22 x 20 cm) |
| Mounting | 6 mounting holes |
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
